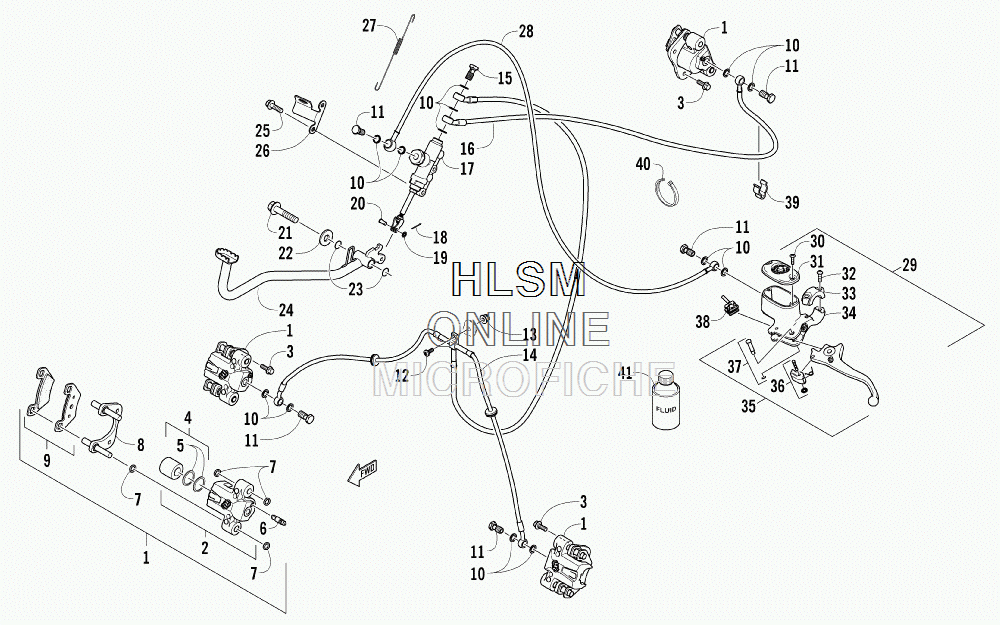

HYDRAULIC BRAKE ASSEMBLY для Arctic Cat TRV 1000 EFT 4X4 BLUE [A2014TGW1PETL] - 2014 года выпуска
-
№АртикулНазвание
-
11436-422 CALIPER, BRAKE - RIGHT FRONT (INC. 2-9)CALIPER, BRAKE - RIGHT FRONT (INC. 2-9)
-
11436-423 CALIPER, BRAKE - LEFT FRONT (INC. 2-9)CALIPER, BRAKE - LEFT FRONT (INC. 2-9)
-
11436-423 CALIPER, BRAKE - REAR (INC. 2-9)CALIPER, BRAKE - REAR (INC. 2-9)
-
21436-160 ...HOUSING, CALIPER - ASSEMBLY - RIGHT FRONT (INC. 3-6)...HOUSING, CALIPER - ASSEMBLY - RIGHT FRONT (INC. 3-6)
-
21436-161 ...HOUSING, CALIPER - ASSEMBLY - LEFT FRONT (INC. 3-6)...HOUSING, CALIPER - ASSEMBLY - LEFT FRONT (INC. 3-6)
-
21436-161 ...HOUSING, CALIPER - ASSEMBLY - REAR (INC. 3-6)...HOUSING, CALIPER - ASSEMBLY - REAR (INC. 3-6)
-
38408-821 ......SCREW, CAP......SCREW, CAP
-
40502-606 ......PISTON/SEAL SET (INC. 5)......PISTON/SEAL SET (INC. 5)
-
50502-607 .........SEAL SET.........SEAL SET
-
60502-609 ......VALVE, BLEED......VALVE, BLEED
-
70502-608 ...O-RING, GUIDE - SET...O-RING, GUIDE - SET
-
80502-605 ...BRACKET ASSEMBLY...BRACKET ASSEMBLY
-
91502-694 ...PAD, BRAKE - SET...PAD, BRAKE - SET
-
100423-178 WASHER, CRUSHWASHER, CRUSH
-
110423-413 BOLT, BANJO-FITTINGBOLT, BANJO-FITTING
-
128476-625 SCREW, MACHINESCREW, MACHINE
-
138427-602 NUT, LOCKNUT, LOCK
-
141502-148 HOSE, BRAKELINE - ASSEMBLYHOSE, BRAKELINE - ASSEMBLY
-
150423-610 BOLT, BANJO-FITTING - DOUBLEBOLT, BANJO-FITTING - DOUBLE
-
161402-594 HOSE, BRAKELINEHOSE, BRAKELINE
-
171502-147 BRAKE ASSEMBLYBRAKE ASSEMBLY
-
180117-868 PIN, COTTERPIN, COTTER
-
198050-217 WASHERWASHER
-
201402-377 PIN, CLEVISPIN, CLEVIS
-
218408-816 SCREW, CAPSCREW, CAP
-
228050-252 WASHERWASHER
-
231602-213 O-RINGO-RING
-
241502-162 LEVER, BRAKELEVER, BRAKE
-
258408-625 SCREW, CAPSCREW, CAP
-
260502-840 BRACKET, SWITCHBRACKET, SWITCH
-
270502-785 SPRING, BRAKE SWITCHSPRING, BRAKE SWITCH
-
281402-592 HOSE, BRAKELINEHOSE, BRAKELINE
-
290502-914 BRAKE ASSEMBLY (INC. 30-38)BRAKE ASSEMBLY (INC. 30-38)
-
300502-566 ...SCREW, MACHINE - KIT...SCREW, MACHINE - KIT
-
310502-868 ...COVER, RESERVOIR...COVER, RESERVOIR
-
320502-568 ...SCREW, MACHINE - KIT...SCREW, MACHINE - KIT
-
330502-869 ...CLAMP, MASTER CYLINDER...CLAMP, MASTER CYLINDER
-
340502-704 ...MASTER CYLINDER ASSEMBLY...MASTER CYLINDER ASSEMBLY
-
350502-866 ...LEVER ASSEMBLY - KIT (INC. 36-37)...LEVER ASSEMBLY - KIT (INC. 36-37)
-
360502-867 ......LOCK, BRAKE LEVER - KIT......LOCK, BRAKE LEVER - KIT
-
370502-580 ......LEVER PIN - KIT......LEVER PIN - KIT
-
380502-564 ...SWITCH, BRAKE...SWITCH, BRAKE
-
391502-115 CLIP, BRAKELINE HOSECLIP, BRAKELINE HOSE
-
400123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
-
415639-848 FLUID, BRAKE - 12 OZFLUID, BRAKE - 12 OZ
