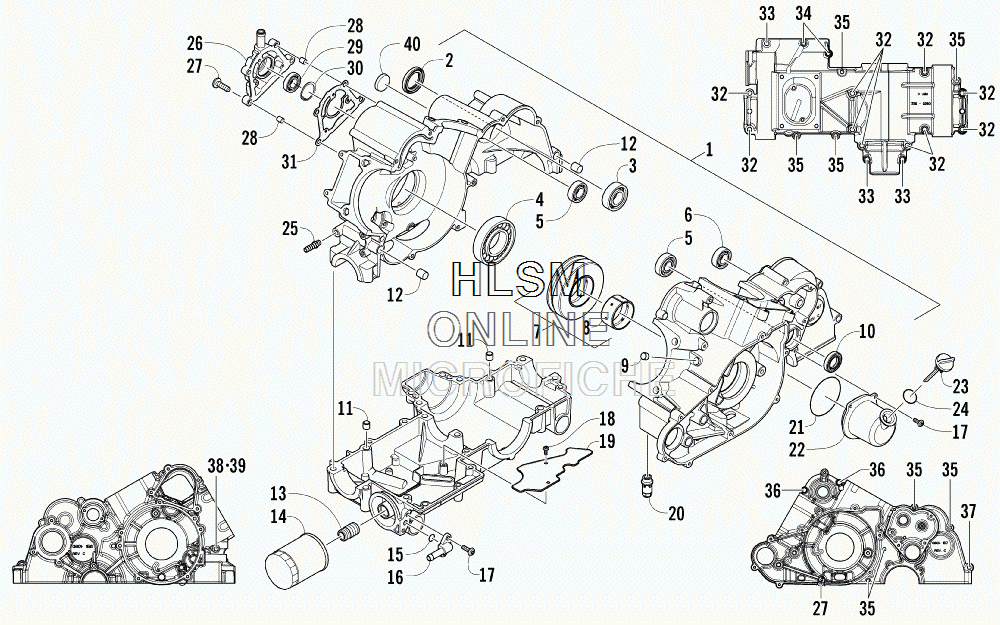

CRANKCASE ASSEMBLY для Arctic Cat TRV 1000 EFT 4X4 BLUE [A2014TGW1PETL] - 2014 года выпуска
-
№АртикулНазвание
-
10801-211 CRANKCASE - ASSEMBLY (INC. 2-13)CRANKCASE - ASSEMBLY (INC. 2-13)
-
20830-035 ...SEAL, DRIVESHAFT...SEAL, DRIVESHAFT
-
30832-048 ...BEARING...BEARING
-
40832-042 ...BEARING...BEARING
-
50832-050 ...BEARING...BEARING
-
60832-049 ...BEARING...BEARING
-
70832-055 ...BEARING - ASSEMBLY (INC. 8)...BEARING - ASSEMBLY (INC. 8)
-
80832-057 ......BEARING......BEARING
-
90801-002 ...PLUG, ENGINE CASE...PLUG, ENGINE CASE
-
100822-052 ...SEAL, COUNTERSHAFT - RIGHT...SEAL, COUNTERSHAFT - RIGHT
-
110829-003 ...PIN, DOWEL...PIN, DOWEL
-
120829-002 ...PIN, DOWEL...PIN, DOWEL
-
130812-066 ...UNION, OIL FILTER...UNION, OIL FILTER
-
140812-034 FILTER, OILFILTER, OIL
-
150830-172 O-RINGO-RING
-
160812-060 FITTING, OILFITTING, OIL
-
178468-616 SCREW, MACHINESCREW, MACHINE
-
180623-914 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
190801-218 PLATE, OIL SUMPPLATE, OIL SUMP
-
200812-052 VALVE, OIL-RELIEF - ASSEMBLYVALVE, OIL-RELIEF - ASSEMBLY
-
210830-162 O-RING, OIL FILLER COVERO-RING, OIL FILLER COVER
-
220812-081 COVER, OIL FILLERCOVER, OIL FILLER
-
230801-179 STICK, OIL LEVELSTICK, OIL LEVEL
-
240830-010 O-RINGO-RING
-
250812-078 FITTING, OIL - THREADEDFITTING, OIL - THREADED
-
260801-193 COVER, BREATHERCOVER, BREATHER
-
278468-625 SCREW, MACHINESCREW, MACHINE
-
280829-062 PIN, DOWELPIN, DOWEL
-
290832-084 BEARINGBEARING
-
300831-086 CIRCLIPCIRCLIP
-
310830-191 GASKET, BREATHERGASKET, BREATHER
-
328412-860 SCREW, CAPSCREW, CAP
-
338412-830 SCREW, CAPSCREW, CAP
-
348468-640 SCREW, MACHINESCREW, MACHINE
-
358468-660 SCREW, MACHINESCREW, MACHINE
-
368468-630 SCREW, MACHINESCREW, MACHINE
-
378412-875 SCREW, CAPSCREW, CAP
-
388412-850 SCREW, CAPSCREW, CAP
-
390830-008 GASKETGASKET
-
400818-103 PLUGPLUG
