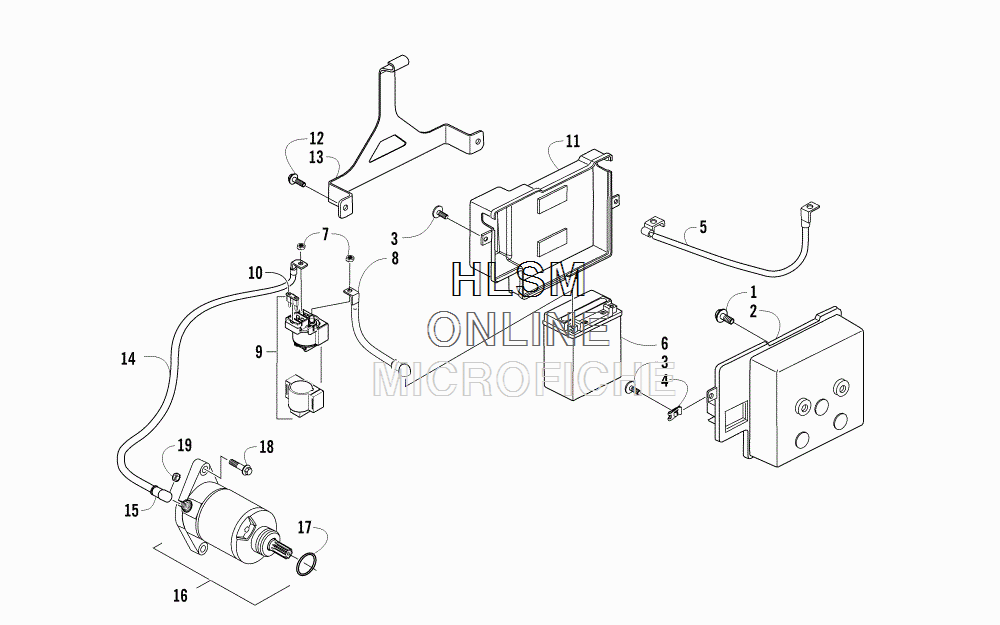

BATTERY AND STARTER ASSEMBLY для Arctic Cat XC 450 EFI ORANGE [A2015KCK4CUSY] - 2015 года выпуска
-
№АртикулНазвание
-
13306-478 SCREW, CAPSCREW, CAP
-
23306-476 BOX, BATTERYBOX, BATTERY
-
33304-029 BOLT, WASHER - 5 X 16BOLT, WASHER - 5 X 16
-
43304-061 NUT CLIP 5 MMNUT CLIP 5 MM
-
53306-441 CABLE, GROUNDCABLE, GROUND
-
63306-301 BATTERY ASSEMBLYBATTERY ASSEMBLY
-
73304-654 NUT, FLANGE - 6 MMNUT, FLANGE - 6 MM
-
83306-518 CABLE, BATTERY/SOLENOIDCABLE, BATTERY/SOLENOID
-
93306-519 SOLENOID (INC. 10)SOLENOID (INC. 10)
-
103304-212 ...FUSE - 30 AMP...FUSE - 30 AMP
-
113306-477 COVER, BATTERY BOXCOVER, BATTERY BOX
-
123304-553 BOLT, FLANGE - 6 X 12BOLT, FLANGE - 6 X 12
-
133306-475 BRACKET, MOUNTING - BATTERY BOXBRACKET, MOUNTING - BATTERY BOX
-
143306-440 CABLE, SOLENOID/STARTER (INC. 15)CABLE, SOLENOID/STARTER (INC. 15)
-
163305-954 MOTOR, STARTER - ASSEMBLY (INC. 17)MOTOR, STARTER - ASSEMBLY (INC. 17)
-
173304-104 ...O-RING...O-RING
-
183305-946 SCREW, CAPSCREW, CAP
-
193304-011 NUT W/WASHERNUT W/WASHER
