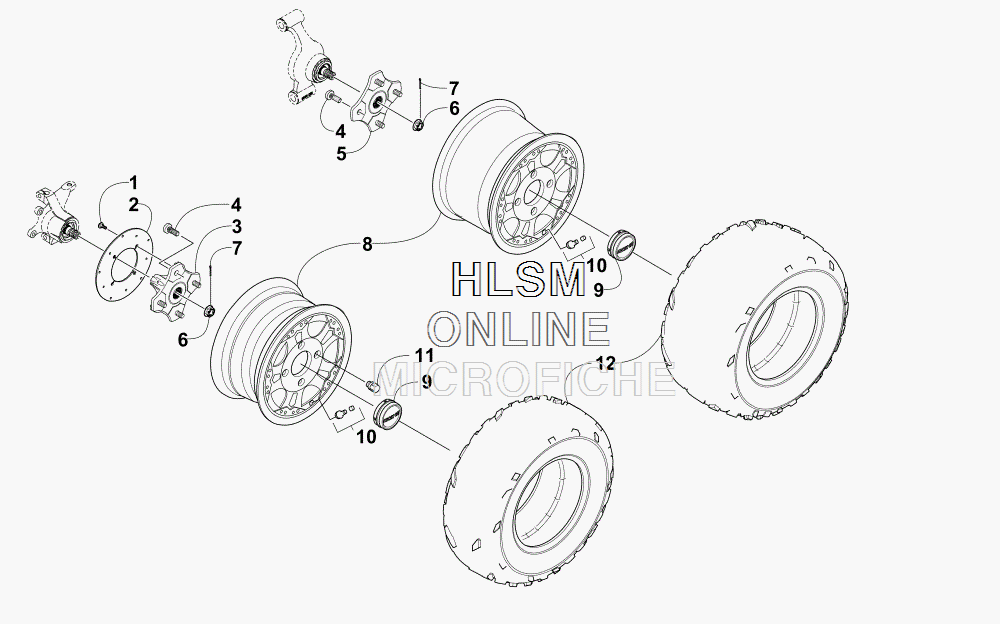

WHEEL AND TIRE ASSEMBLY для Arctic Cat XC 450 EFI ORANGE [A2015KCK4CUSY] - 2015 года выпуска
-
№АртикулНазвание
-
10423-557 SCREW, SHOULDERSCREW, SHOULDER
-
21436-806 DISC, BRAKEDISC, BRAKE
-
33306-461 HUB, WHEEL - LEFT REAR (BOTH FRONT & REAR LEFT) (INC. FOUR NO. 4)HUB, WHEEL - LEFT REAR (BOTH FRONT & REAR LEFT) (INC. FOUR NO. 4)
-
40402-974 ...STUD...STUD
-
53306-466 HUB, WHEEL - RIGHT REAR (INC. FOUR NO. 4)HUB, WHEEL - RIGHT REAR (INC. FOUR NO. 4)
-
60423-607 NUT, CASTLENUT, CASTLE
-
70423-407 PIN, COTTERPIN, COTTER
-
83306-460 WHEEL - FRONTWHEEL - FRONT
-
83306-465 WHEEL - REARWHEEL - REAR
-
93306-467 CAP, WHEELCAP, WHEEL
-
103304-562 STEM, VALVESTEM, VALVE
-
113306-464 NUT, LUGNUT, LUG
-
123306-462 TIRE - FRONTTIRE - FRONT
-
123306-463 TIRE - REARTIRE - REAR
