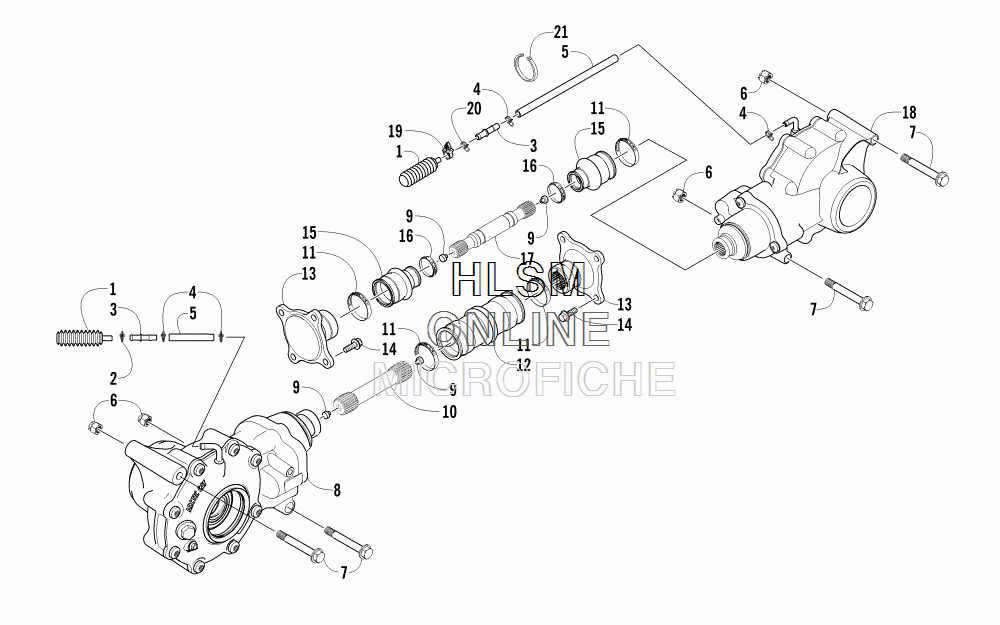

DRIVE TRAIN ASSEMBLY для Arctic Cat XC 450 EFI ORANGE [A2015KCK4CUSY] - 2015 года выпуска
-
№АртикулНазвание
-
13313-796 BLADDER, GEARCASEBLADDER, GEARCASE
-
23323-149 CLAMP, HOSECLAMP, HOSE
-
33323-150 FITTING, VENTFITTING, VENT
-
43313-684 CLAMP, HOSECLAMP, HOSE
-
50410-070 HOSE - 25 FTHOSE - 25 FT
-
63304-031 U-NUTU-NUT
-
73305-787 SCREW, CAPSCREW, CAP
-
83306-265 COMPLETE FRONT DRIVE GEARCASE ASSEMBLYCOMPLETE FRONT DRIVE GEARCASE ASSEMBLY
-
93313-783 BUMPER, PROPELLER SHAFTBUMPER, PROPELLER SHAFT
-
103313-784 SHAFT, PROPELLERSHAFT, PROPELLER
-
113313-776 CLAMPCLAMP
-
123313-825 BOOT, COUPLERBOOT, COUPLER
-
133313-774 FLANGE, OUTPUTFLANGE, OUTPUT
-
143304-565 BOLT, FLANGE - 8 X 20BOLT, FLANGE - 8 X 20
-
150402-985 BOOT, SHAFTBOOT, SHAFT
-
163313-777 CLAMPCLAMP
-
173313-773 SHAFT, PROPELLERSHAFT, PROPELLER
-
183306-023 GEARCASE, REARGEARCASE, REAR
-
193323-152 CLIP, ROUTINGCLIP, ROUTING
-
203303-349 CLAMP, HOSECLAMP, HOSE
-
210123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
