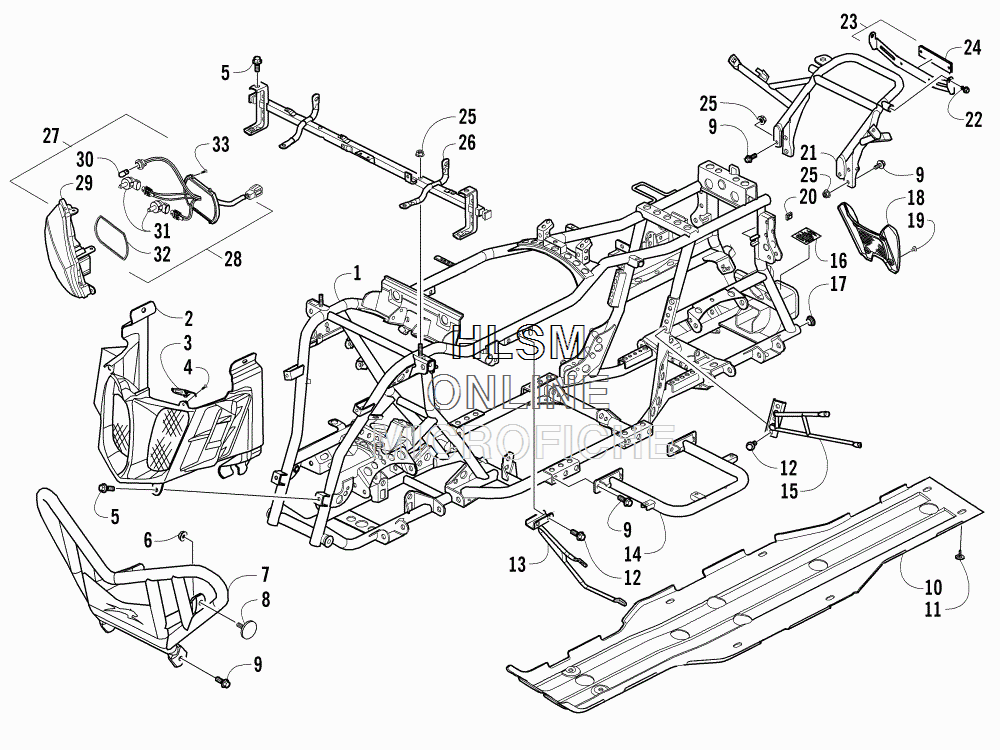

BUMPER- FRAME- AND HEADLIGHT ASSEMBLIES для Arctic Cat XC 450 EFI ORANGE [A2015KCK4CUSY] - 2015 года выпуска

№

Артикул

Название
1

3306-521 FRAME, MAIN

FRAME, MAIN

380 ₽
2

3306-453 FASCIA, LOWER FRONT

FASCIA, LOWER FRONT

4 990 ₽
3

3306-541 BRACKET, SUPPORT - FRONT FASCIA

BRACKET, SUPPORT - FRONT FASCIA

730 ₽
4

3304-651 SCREW, SELF-TAPPING

SCREW, SELF-TAPPING

170 ₽
5

3304-587 SCREW, CAP

SCREW, CAP

190 ₽
6

3304-654 NUT, FLANGE - 6 MM

NUT, FLANGE - 6 MM

190 ₽
7

3306-531 BUMPER, FRONT

BUMPER, FRONT

30 360 ₽
8

3305-272 REFLECTOR - AMBER

REFLECTOR - AMBER

2 490 ₽
9

3304-543 SCREW, CAP

SCREW, CAP

230 ₽
10

3313-755 PLATE, SKID

PLATE, SKID

11 020 ₽
11

0423-545 SCREW, SHOULDER

SCREW, SHOULDER

170 ₽
12

3304-544 SCREW, CAP

SCREW, CAP

270 ₽
13

3306-524 BRACKET, FENDER SUPPORT - FRONT RIGHT

BRACKET, FENDER SUPPORT - FRONT RIGHT

3 110 ₽
13

3306-525 BRACKET, FENDER SUPPORT - FRONT LEFT

BRACKET, FENDER SUPPORT - FRONT LEFT

3 110 ₽
14

3306-522 FOOTREST - RIGHT

FOOTREST - RIGHT

12 270 ₽
14

3306-523 FOOTREST - LEFT

FOOTREST - LEFT

12 270 ₽
15

3306-526 BRACKET, FENDER SUPPORT - REAR RIGHT

BRACKET, FENDER SUPPORT - REAR RIGHT

3 950 ₽
15

3306-527 BRACKET, FENDER SUPPORT - REAR LEFT

BRACKET, FENDER SUPPORT - REAR LEFT

3 950 ₽
16

1411-077 DECAL, WARNING - TOWING

DECAL, WARNING - TOWING

750 ₽
17

3306-530 PLUG

PLUG

250 ₽
18

3306-489 FASCIA, REAR

FASCIA, REAR

1 870 ₽
19

3304-404 SCREW, CAP

SCREW, CAP

270 ₽
20

3306-329 CUSHION

CUSHION

420 ₽
21

3306-529 BRACKET, FENDER SUPPORT - REAR

BRACKET, FENDER SUPPORT - REAR

30 360 ₽
22

3304-553 BOLT, FLANGE - 6 X 12

BOLT, FLANGE - 6 X 12

130 ₽
23

5506-374 BRACKET, ASSEMBLY - REAR (INC. 24)

BRACKET, ASSEMBLY - REAR (INC. 24)

2 700 ₽
24

0606-029 ...REFLECTOR - RED

...REFLECTOR - RED

2 070 ₽
25

3304-668 NUT, LOCK

NUT, LOCK

130 ₽
26

3306-597 MOUNT, HEADLIGHT TUBE

MOUNT, HEADLIGHT TUBE

12 680 ₽
27

3306-442 HEADLIGHT ASSEMBLY - RIGHT (INC. 28-33)

HEADLIGHT ASSEMBLY - RIGHT (INC. 28-33)

36 390 ₽
27

3306-443 HEADLIGHT ASSEMBLY - LEFT (INC. 28-33)

HEADLIGHT ASSEMBLY - LEFT (INC. 28-33)

36 390 ₽
28

3306-446 ...HARNESS, HEADLIGHT - ASSEMBLY

...HARNESS, HEADLIGHT - ASSEMBLY

7 480 ₽
29

3306-444 ...LENS ASSEMBLY - RIGHT

...LENS ASSEMBLY - RIGHT

53 240 ₽
30

3306-445 ...LENS ASSEMBLY - LEFT

...LENS ASSEMBLY - LEFT

53 240 ₽
30

3313-508 ...BULB

...BULB

1 020 ₽
31

3306-447 ...BULB, HEADLIGHT

...BULB, HEADLIGHT

6 230 ₽
