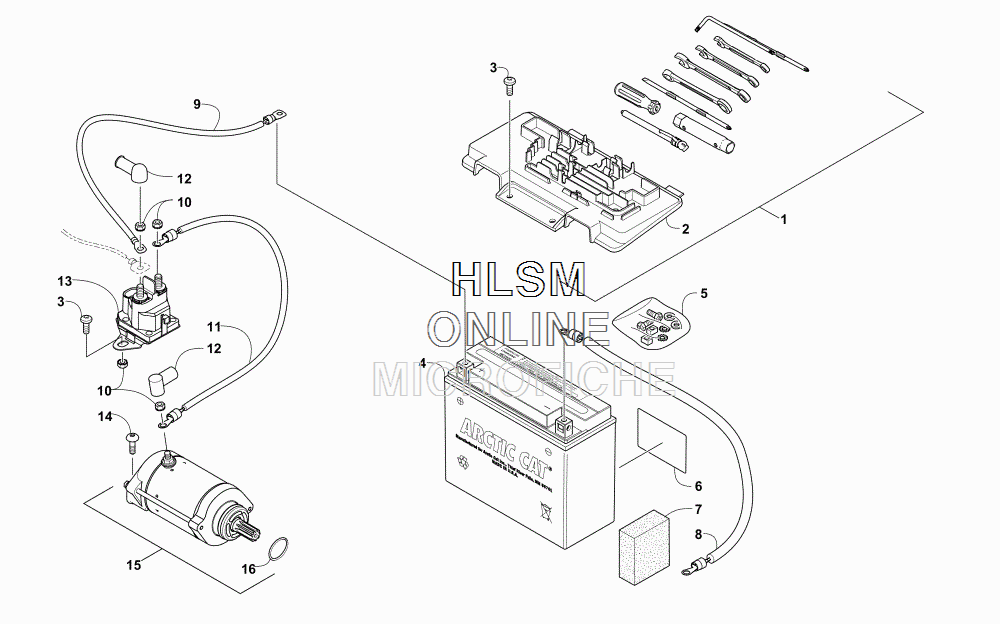

BATTERY AND STARTER ASSEMBLY для Arctic Cat VLX 700 CAMO - 2017 года выпуска
-
№АртикулНазвание
-
15994-159 BATTERY COVER/TOOL TRAY ASSEMBLY (INC. 2)BATTERY COVER/TOOL TRAY ASSEMBLY (INC. 2)
-
24406-136 ...COVER, BATTERY/TOOL TRAY...COVER, BATTERY/TOOL TRAY
-
38476-620 SCREW, MACHINESCREW, MACHINE
-
40745-423 BATTERY (INC. 5-6)BATTERY (INC. 5-6)
-
50445-082 ...KIT, HARDWARE...KIT, HARDWARE
-
60645-430 ...DECAL, WARNING...DECAL, WARNING
-
70417-012 FOAM, BATTERYFOAM, BATTERY
-
80445-063 CABLE, BATTERY/GROUNDCABLE, BATTERY/GROUND
-
90445-062 CABLE, BATTERY/SOLENOIDCABLE, BATTERY/SOLENOID
-
100623-038 NUT W/WASHERNUT W/WASHER
-
110445-064 CABLE, SOLENOID/STARTER (INC. 12)CABLE, SOLENOID/STARTER (INC. 12)
-
120645-019 ...BOOT, TERMINAL - BATTERY...BOOT, TERMINAL - BATTERY
-
130445-121 SOLENOID, STARTER RELAYSOLENOID, STARTER RELAY
-
148476-625 SCREW, CAPSCREW, CAP
-
150825-024 MOTOR, STARTER (INC. 16)MOTOR, STARTER (INC. 16)
-
160830-228 ...O-RING...O-RING
