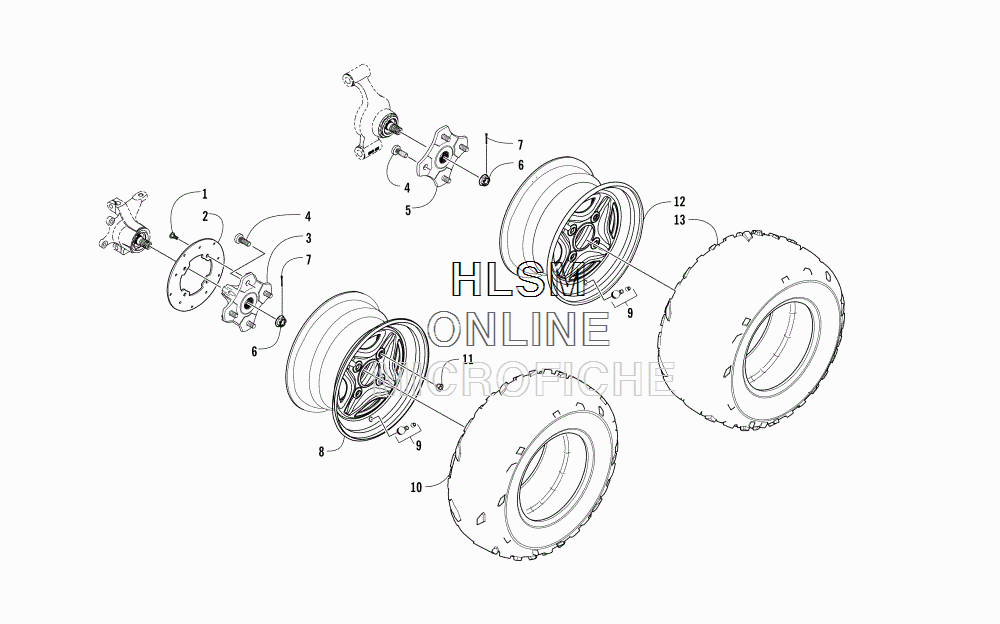

WHEEL AND TIRE ASSEMBLY для Arctic Cat VLX 700 CAMO - 2017 года выпуска
-
№АртикулНазвание
-
10423-557 SCREW, SHOULDERSCREW, SHOULDER
-
21436-808 KIT, BRAKE DISC (INC. 1)KIT, BRAKE DISC (INC. 1)
-
31502-462 HUB, WHEEL (INC. 4)HUB, WHEEL (INC. 4)
-
40402-974 ...STUD...STUD
-
51502-464 HUB, WHEEL (INC. 4)HUB, WHEEL (INC. 4)
-
60423-607 NUT, CASTLENUT, CASTLE
-
70423-407 PIN, COTTERPIN, COTTER
-
82402-322 WHEEL - FRONT - BLACKWHEEL - FRONT - BLACK
-
90402-064 STEM, VALVE - W/CAPSTEM, VALVE - W/CAP
-
102402-111 TIRE - FRONT - CARLISLE, TPRO - 25X8R12TIRE - FRONT - CARLISLE, TPRO - 25X8R12
-
110423-408 NUT, LUGNUT, LUG
-
122402-323 WHEEL - REAR - BLACKWHEEL - REAR - BLACK
-
132402-112 TIRE - REAR - CARLISLE, TPRO - 25X10R12TIRE - REAR - CARLISLE, TPRO - 25X10R12
