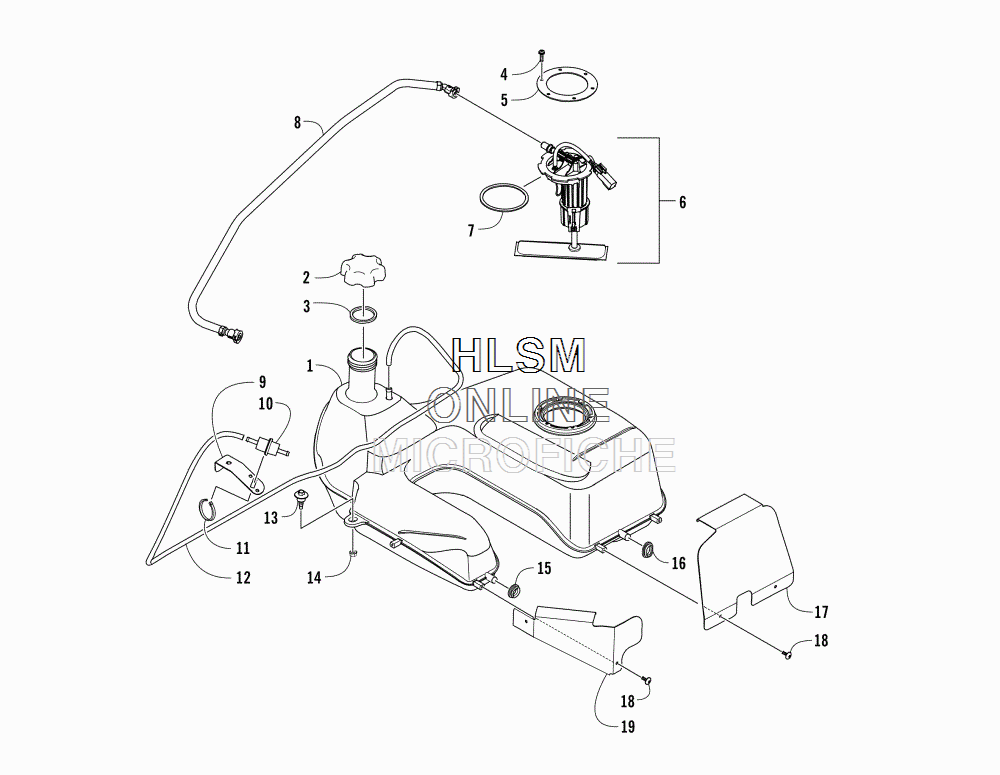

GAS TANK ASSEMBLY для Arctic Cat VLX 700 CAMO - 2017 года выпуска
-
№АртикулНазвание
-
10570-492 TANK, GAS - ASSEMBLY (INC. 2-5)TANK, GAS - ASSEMBLY (INC. 2-5)
-
20470-438 ...CAP, GAS TANK - ASSEMBLY (INC. 3)...CAP, GAS TANK - ASSEMBLY (INC. 3)
-
30109-733 ......SEAL, GAS TANK CAP......SEAL, GAS TANK CAP
-
40423-898 ...SCREW, SELF-TAPPING...SCREW, SELF-TAPPING
-
52670-042 ...PLATE, RETAINING - FUEL PUMP...PLATE, RETAINING - FUEL PUMP
-
60570-491 PUMP, FUEL - ASSEMBLYPUMP, FUEL - ASSEMBLY
-
70470-838 SEALSEAL
-
80570-317 HOSE, GASLINE - ASSEMBLYHOSE, GASLINE - ASSEMBLY
-
90470-980 BRACKET, FILTER MOUNTINGBRACKET, FILTER MOUNTING
-
100470-988 FILTER, IN-LINEFILTER, IN-LINE
-
110123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
-
120410-070 HOSE - 25 FTHOSE - 25 FT
-
130423-732 SCREW, SHOULDERSCREW, SHOULDER
-
140623-038 NUT W/WASHERNUT W/WASHER
-
150423-460 GROMMETGROMMET
-
160423-806 GROMMETGROMMET
-
170470-710 SHIELD, HEAT - GAS TANK - REARSHIELD, HEAT - GAS TANK - REAR
-
180623-797 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
190470-709 SHIELD, HEAT - GAS TANK - FRONTSHIELD, HEAT - GAS TANK - FRONT
