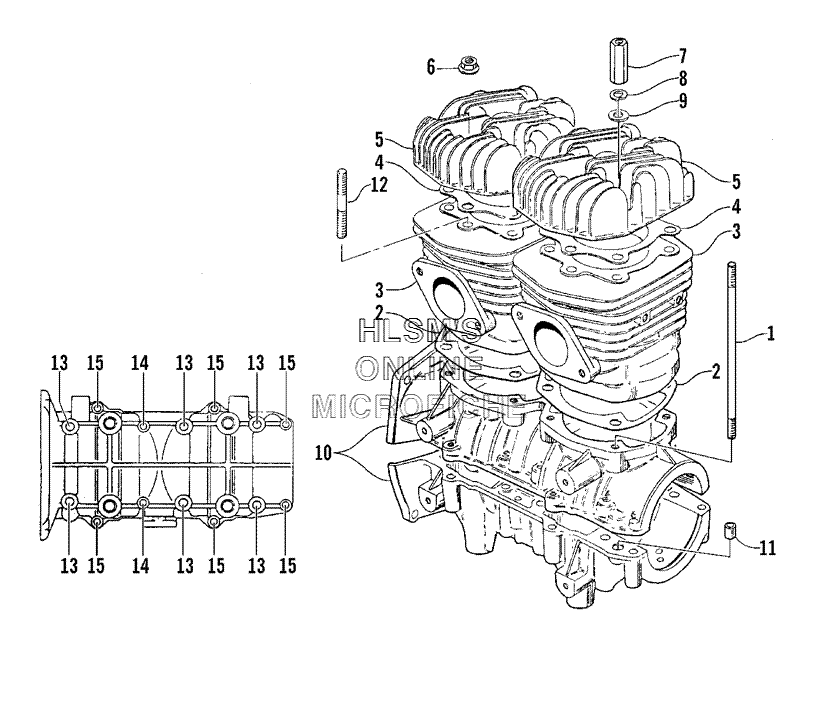

CRANKCASE AND CYLINDER для Arctic Cat Bearcat 340 - 2000 года выпуска
-
№АртикулНазвание
-
13004-712 BOLT, STUD - CYLINDERBOLT, STUD - CYLINDER
-
23004-321 GASKET, CYLINDERGASKET, CYLINDER
-
33003-627 CYLINDERCYLINDER
-
43004-320 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
53002-756 HEAD, CYLINDERHEAD, CYLINDER
-
63004-326 NUTNUT
-
73004-868 NUTNUT
-
83004-280 WASHER, LOCKWASHER, LOCK
-
93423-204 WASHERWASHER
-
103005-129 CRANKCASE ASSEMBLY (INC. 11 AND 13-15)CRANKCASE ASSEMBLY (INC. 11 AND 13-15)
-
113002-012 . PIN, DOWEL. PIN, DOWEL
-
123004-421 BOLT, STUDBOLT, STUD
-
133004-869 SCREW, CAPSCREW, CAP
-
143004-574 SCREW, CAPSCREW, CAP
-
153004-369 SCREW, CAPSCREW, CAP
