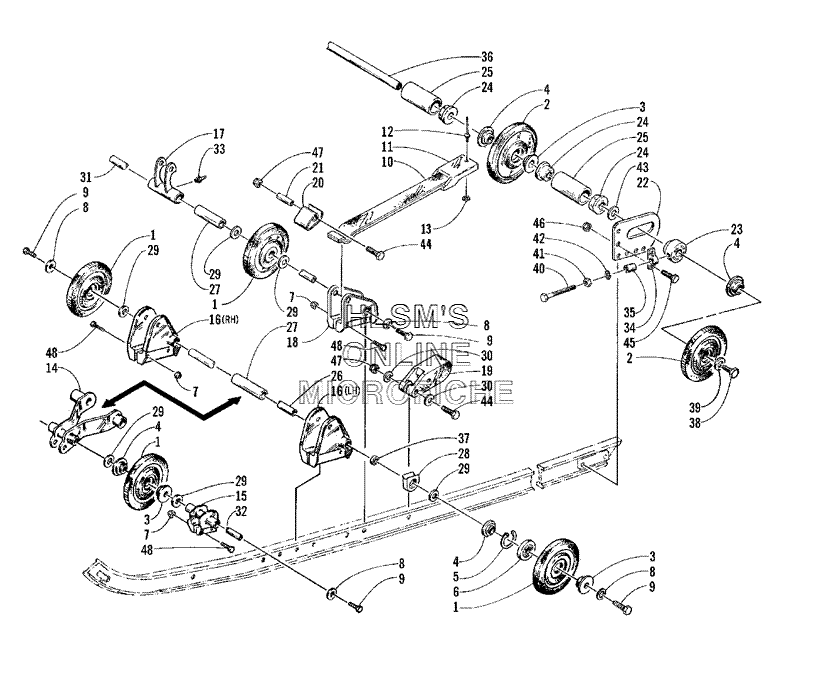

REAR SUSPENSION AXLE ASSEMBLY для Arctic Cat Bearcat 340 - 2000 года выпуска
-
№АртикулНазвание
-
10114-240 WHEEL, IDLER (INC. 3-6)WHEEL, IDLER (INC. 3-6)
-
20604-210 WHEEL, IDLER (INC. 3-6)WHEEL, IDLER (INC. 3-6)
-
30104-341 . INSERT, WHEEL (OUTSIDE). INSERT, WHEEL (OUTSIDE)
-
40104-340 . INSERT, WHEEL (INSIDE). INSERT, WHEEL (INSIDE)
-
50123-798 . RING, RETAINING. RING, RETAINING
-
60107-598 . BEARING. BEARING
-
78040-426 NUT, LOCKNUT, LOCK
-
80123-260 WASHERWASHER
-
98012-132 SCREW, CAPSCREW, CAP
-
101604-449 SPRING, OVERLOAD ASSEMBLY (INC. 11-13)SPRING, OVERLOAD ASSEMBLY (INC. 11-13)
-
110604-618 . BLOCK, WEAR. BLOCK, WEAR
-
128060-451 . RIVET. RIVET
-
130123-149 . WASHER. WASHER
-
140704-187 BRACKET, FRONT SHOCKBRACKET, FRONT SHOCK
-
150704-201 BRACKETBRACKET
-
160704-190 BRACKET, MOUNTING - RIGHTBRACKET, MOUNTING - RIGHT
-
160704-191 BRACKET, MOUNTING - LEFTBRACKET, MOUNTING - LEFT
-
170704-374 PIVOT, SHOCKPIVOT, SHOCK
-
180704-206 BRACKET, MOUNTING - AUXILIARY WHEEL RIGHTBRACKET, MOUNTING - AUXILIARY WHEEL RIGHT
-
180704-207 BRACKET, MOUNTING - AUXILIARY WHEEL LEFTBRACKET, MOUNTING - AUXILIARY WHEEL LEFT
-
190604-612 BLOCK, SPRING TENSIONBLOCK, SPRING TENSION
-
200604-738 CLIP, RETAINERCLIP, RETAINER
-
210604-739 BUSHING, OVERLOAD SPRINGBUSHING, OVERLOAD SPRING
-
221604-153 HOUSING, REAR AXLEHOUSING, REAR AXLE
-
230604-165 BUSHING, ADJUSTERBUSHING, ADJUSTER
-
240604-968 BUSHING, SPACERBUSHING, SPACER
-
250604-730 SPACER, CENTERSPACER, CENTER
-
260604-081 AXLE, INNER WHEELAXLE, INNER WHEEL
-
270603-105 SPACER, IDLER WHEELSPACER, IDLER WHEEL
-
280604-582 ROLLER, SLIDEROLLER, SLIDE
-
290123-439 WASHERWASHER
-
308050-277 WASHERWASHER
-
310604-641 AXLE, INNERAXLE, INNER
-
320604-578 AXLE, IDLER WHEELAXLE, IDLER WHEEL
-
339916-963 FITTING, GREASEFITTING, GREASE
-
340604-206 ADJUSTER, TRACKADJUSTER, TRACK
-
350604-298 SPACER, TRACK ADJUSTERSPACER, TRACK ADJUSTER
-
360604-662 AXLE, REARAXLE, REAR
-
370604-693 SPACER, OUTER WHEELSPACER, OUTER WHEEL
-
388012-223 SCREW, CAPSCREW, CAP
-
390123-570 WASHERWASHER
-
400623-123 SCREW, CAPSCREW, CAP
-
418042-486 NUTNUT
-
428051-277 WASHER, LOCKWASHER, LOCK
-
430623-220 WASHERWASHER
-
448002-227 SCREW, CAPSCREW, CAP
-
458002-041 SCREW, CAPSCREW, CAP
-
468040-366 NUT, LOCKNUT, LOCK
-
478041-486 NUTNUT
-
488002-131 SCREW, CAPSCREW, CAP
