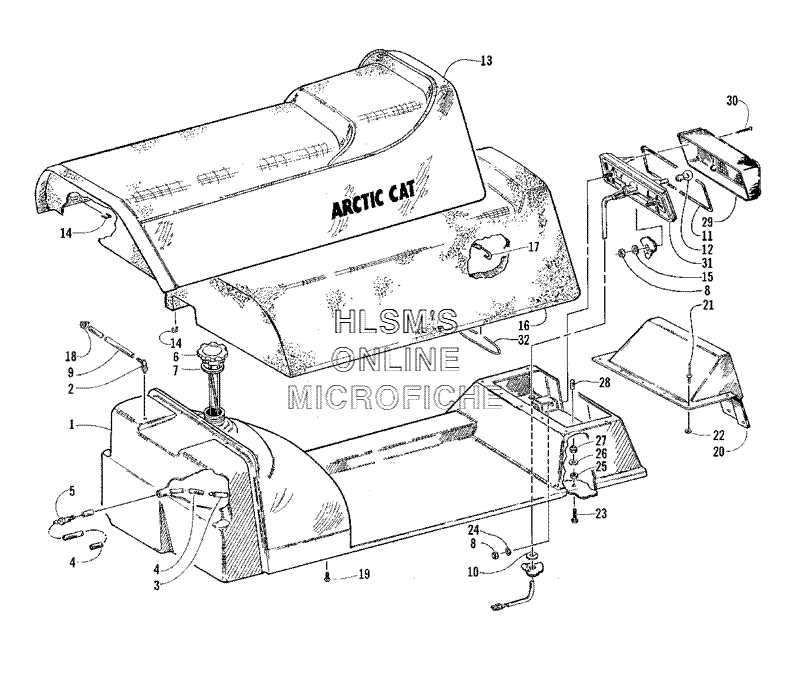

GAS TANK AND SEAT ASSEMBLIES для Arctic Cat Bearcat 340 - 2000 года выпуска
-
№АртикулНазвание
-
-0718-492 COMPLETE SEAT ASSEMBLYCOMPLETE SEAT ASSEMBLY
-
10770-188 TANK, GAS (INC. 2-5)TANK, GAS (INC. 2-5)
-
20670-572 . VENT, GAS TANK. VENT, GAS TANK
-
30510-358 . STRAINER. STRAINER
-
40610-017 . HOSE, GASLINE - 100 FT. HOSE, GASLINE - 100 FT
-
40610-008 . HOSE, GASLINE - 25 FT. HOSE, GASLINE - 25 FT
-
50670-042 . OUTLET, TANK. OUTLET, TANK
-
60670-525 CAP, GAS TANK (INC. 7)CAP, GAS TANK (INC. 7)
-
70109-733 . SEAL, GAS CAP. SEAL, GAS CAP
-
80623-038 NUT, LOCKNUT, LOCK
-
90710-015 HOSE, VENT - GAS TANKHOSE, VENT - GAS TANK
-
100617-136 SEAL, FOAM - SEAT-BASESEAL, FOAM - SEAT-BASE
-
110609-092 GASKET, TAILLIGHT LENSGASKET, TAILLIGHT LENS
-
120109-460 BULBBULB
-
130716-585 COVER, SEATCOVER, SEAT
-
140623-577 STAPLESTAPLE
-
158050-217 WASHERWASHER
-
160716-506 FOAM, SEAT CUSHIONFOAM, SEAT CUSHION
-
171606-150 WIRE, SEATWIRE, SEAT
-
180623-063 CLAMP, HOSECLAMP, HOSE
-
190124-031 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
200616-049 EXTENSIONEXTENSION
-
218061-428 RIVETRIVET
-
220123-149 WASHERWASHER
-
238002-042 SCREW, MACHINESCREW, MACHINE
-
248050-212 WASHERWASHER
-
258041-366 NUTNUT
-
260623-184 WASHERWASHER
-
278040-366 NUT, LOCKNUT, LOCK
-
280623-404 CAP, PROTECTORCAP, PROTECTOR
-
290609-090 LENS, TAILLIGHTLENS, TAILLIGHT
-
300609-093 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
310609-091 TAILLIGHT W/SOCKET ASSEMBLYTAILLIGHT W/SOCKET ASSEMBLY
-
320606-057 WIRE, SEATWIRE, SEAT
