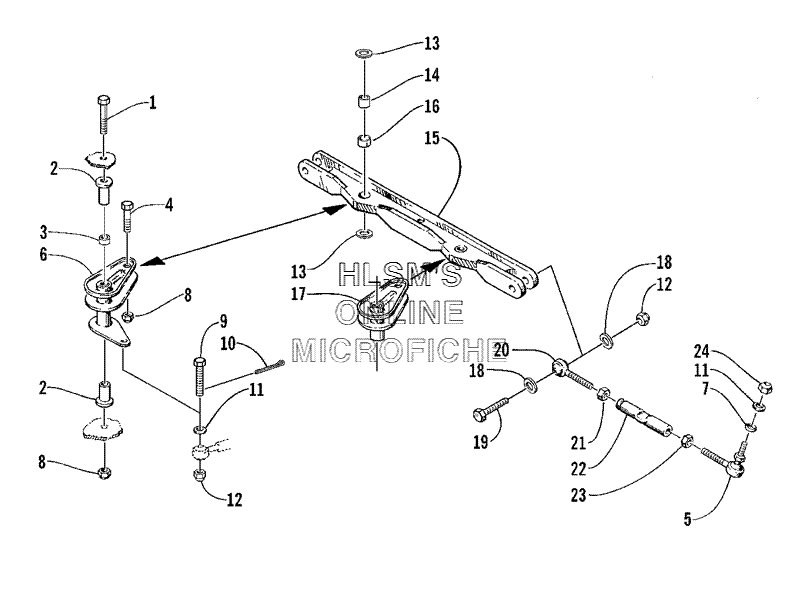

TIE ROD ASSEMBLY для Arctic Cat Bearcat 340 - 2000 года выпуска
-
№АртикулНазвание
-
18002-234 SCREW, CAPSCREW, CAP
-
20603-861 AXLE, POWDER METALAXLE, POWDER METAL
-
30605-449 SPACERSPACER
-
48002-225 SCREW, CAPSCREW, CAP
-
50605-423 BALL JOINT, STEERING - LEFTBALL JOINT, STEERING - LEFT
-
60705-295 ARM, STEERINGARM, STEERING
-
70605-014 O-RINGO-RING
-
88040-486 NUT, LOCKNUT, LOCK
-
90623-436 SCREW, CAPSCREW, CAP
-
100623-175 PIN, COTTERPIN, COTTER
-
110623-044 WASHERWASHER
-
120623-026 NUT, LOCKNUT, LOCK
-
130605-065 WASHER, SPACERWASHER, SPACER
-
140605-066 AXLE, DRAG LINKAXLE, DRAG LINK
-
150705-134 DRAG LINK (INC. 16)DRAG LINK (INC. 16)
-
160605-107 . BEARING. BEARING
-
170705-296 ARM, STEERING - IDLERARM, STEERING - IDLER
-
188050-277 WASHERWASHER
-
198002-227 SCREW, CAPSCREW, CAP
-
200605-202 BALL JOINT, TIE ROD - RIGHTBALL JOINT, TIE ROD - RIGHT
-
210623-294 NUT, HEX - RIGHTNUT, HEX - RIGHT
-
220605-216 TUBE, TIE ROD - SPINDLETUBE, TIE ROD - SPINDLE
-
230123-917 NUT, HEX - LEFTNUT, HEX - LEFT
-
240623-025 NUT, LOCKNUT, LOCK
