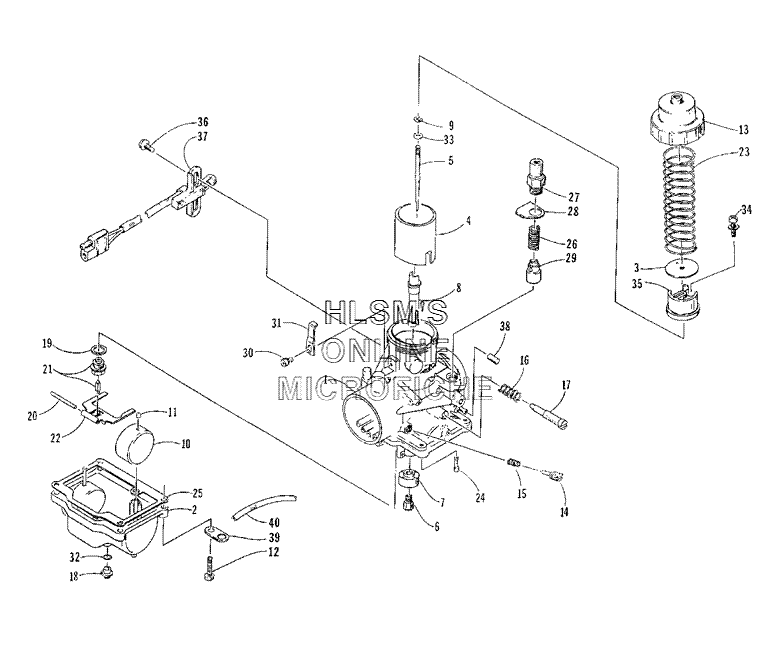

CARBURETOR VM34-432 для Arctic Cat Bearcat 440 II - 2000 года выпуска
-
№АртикулНазвание
-
-0770-430 CARBURETOR VM34-432CARBURETOR VM34-432
-
26505-632 FLOAT CHAMBERFLOAT CHAMBER
-
36505-630 PLATEPLATE
-
46505-614 PISTON VALVE CA 2.5PISTON VALVE CA 2.5
-
56505-593 JET NEEDLE 6DH2-3JET NEEDLE 6DH2-3
-
66505-128 MAIN JET 300MAIN JET 300
-
76505-620 RING, BAFFLERING, BAFFLE
-
86505-540 NEEDLE JET P-4 (480)NEEDLE JET P-4 (480)
-
96505-610 E-CLIPE-CLIP
-
106505-009 FLOATFLOAT
-
116505-010 CAPCAP
-
126505-014 SCREW W/WASHERSCREW W/WASHER
-
136505-558 TOP, MIXING BODYTOP, MIXING BODY
-
146505-019 SCREW, PILOT AIRSCREW, PILOT AIR
-
156505-020 SPRING, PILOT AIR SCREWSPRING, PILOT AIR SCREW
-
166505-021 SPRING, THROTTLE STOPSPRING, THROTTLE STOP
-
176505-022 SCREW, THROTTLE STOPSCREW, THROTTLE STOP
-
186505-617 PLUG, DRAINPLUG, DRAIN
-
196505-024 WASHERWASHER
-
206505-153 PIN, FLOATPIN, FLOAT
-
216505-160 NEEDLE VALVE ASSEMBLY 1.5NEEDLE VALVE ASSEMBLY 1.5
-
226505-027 ARM, FLOATARM, FLOAT
-
236505-562 SPRING, PISTON VALVESPRING, PISTON VALVE
-
246505-073 PILOT JET 30PILOT JET 30
-
256505-030 GASKETGASKET
-
266505-033 SPRING, STARTER PLUNGERSPRING, STARTER PLUNGER
-
276505-188 CAP, STARTER PLUNGERCAP, STARTER PLUNGER
-
286505-187 WASHERWASHER
-
296505-035 STARTER PLUNGERSTARTER PLUNGER
-
306505-036 SCREW W/WASHERSCREW W/WASHER
-
316505-037 PLATEPLATE
-
326505-622 O-RINGO-RING
-
336505-437 WASHERWASHER
-
346505-559 SCREW W/WASHERSCREW W/WASHER
-
350770-037 BLOCK, MAGNETBLOCK, MAGNET
-
360623-137 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
370630-076 SWITCH, MAGNETIC - CARBURETORSWITCH, MAGNETIC - CARBURETOR
-
386505-569 CAPCAP
-
396505-608 PLATE, HOSEPLATE, HOSE
-
406505-629 HOSEHOSE
