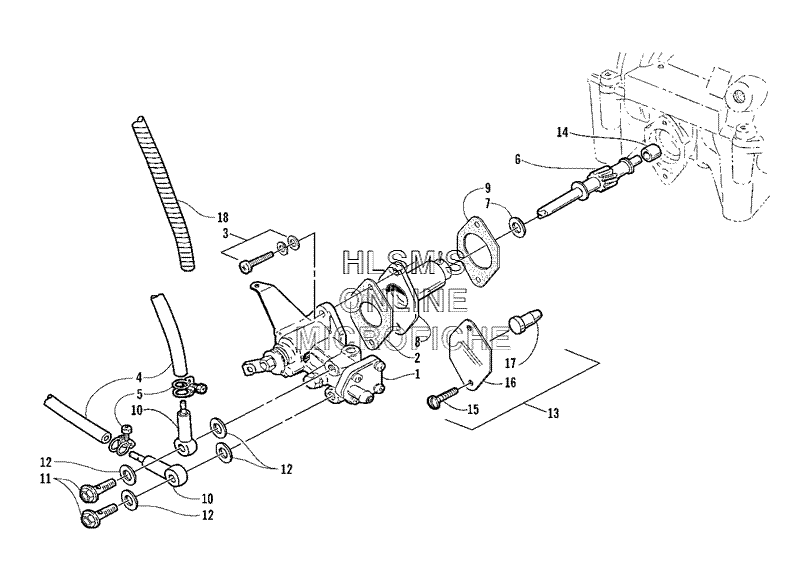

OIL PUMP для Arctic Cat Bearcat 440 II - 2000 года выпуска
-
№АртикулНазвание
-
13004-038 OIL PUMP ASSEMBLYOIL PUMP ASSEMBLY
-
23004-349 GASKETGASKET
-
33004-373 SCREWSCREW
-
43008-035 HOSE, OIL PUMPHOSE, OIL PUMP
-
53003-218 CLAMP, HOSECLAMP, HOSE
-
63002-770 GEAR, OIL PUMP DRIVENGEAR, OIL PUMP DRIVEN
-
73002-749 SHIMSHIM
-
83003-749 RETAINER, OIL PUMPRETAINER, OIL PUMP
-
93004-286 GASKETGASKET
-
103003-217 VALVE, CHECKVALVE, CHECK
-
113004-346 BOLT, UNIONBOLT, UNION
-
123402-009 GASKETGASKET
-
130636-068 KIT, NON-INJECTION (INC. 15,16,17)KIT, NON-INJECTION (INC. 15,16,17)
-
143003-289 BUSHING, OIL PUMPBUSHING, OIL PUMP
-
153004-638 SCREWSCREW
-
160136-262 PLATE, CRANKCASEPLATE, CRANKCASE
-
170670-101 PLUG, OIL PUMPPLUG, OIL PUMP
-
183005-032 PROTECTORPROTECTOR
