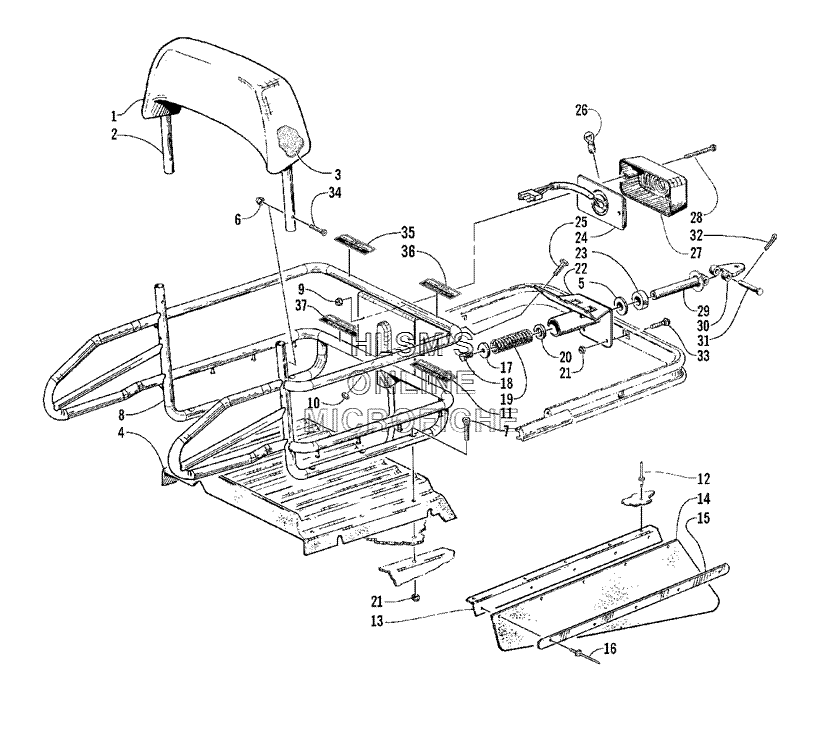

RACK- BACKREST- TAILLIGHT- AND HITCH ASSEMBLIES для Arctic Cat Bearcat 440 II - 2000 года выпуска
-
№АртикулНазвание
-
10716-679 COVER, BACKRESTCOVER, BACKREST
-
20716-105 BACKRESTBACKREST
-
30716-705 FOAM, BACKRESTFOAM, BACKREST
-
40616-501 COVER, TUNNEL EXTENSION - REARCOVER, TUNNEL EXTENSION - REAR
-
50616-576 WASHERWASHER
-
60123-108 NUT, CAPNUT, CAP
-
70623-060 SCREW, MACHINESCREW, MACHINE
-
80716-363 RACKRACK
-
90123-709 NUT, LOCKNUT, LOCK
-
108040-426 NUT, LOCKNUT, LOCK
-
111611-567 DECAL, WARNING - TOURING (FRENCH)DECAL, WARNING - TOURING (FRENCH)
-
128060-504 RIVETRIVET
-
130616-659 RETAINER, SIDERETAINER, SIDE
-
140616-660 SNOWFLAP, SIDESNOWFLAP, SIDE
-
150616-709 STRAP, SIDESTRAP, SIDE
-
168060-428 RIVETRIVET
-
170604-898 WASHER, PIVOT - HITCHWASHER, PIVOT - HITCH
-
188012-220 SCREW, CAPSCREW, CAP
-
190616-579 SPRING, COMPRESSIONSPRING, COMPRESSION
-
200604-900 WASHER, SUPPORT - HITCHWASHER, SUPPORT - HITCH
-
218041-366 NUT, LOCKNUT, LOCK
-
220716-118 BRACKET, HITCH MOUNTINGBRACKET, HITCH MOUNTING
-
230616-577 BUMPER, HITCHBUMPER, HITCH
-
240609-230 HOUSING, TAILLIGHTHOUSING, TAILLIGHT
-
258002-129 SCREW, CAPSCREW, CAP
-
260109-460 BULB, TAILLIGHTBULB, TAILLIGHT
-
270609-229 LENS, TAILLIGHTLENS, TAILLIGHT
-
280623-303 SCREW, MACHINESCREW, MACHINE
-
290716-117 SHAFT, HITCH - PIVOTSHAFT, HITCH - PIVOT
-
300716-456 PLATE, HITCHPLATE, HITCH
-
310616-958 PIN, HITCHPIN, HITCH
-
320135-050 PIN, COTTERPIN, COTTER
-
338011-039 BOLT, CARRIAGEBOLT, CARRIAGE
-
348017-584 SCREW, MACHINESCREW, MACHINE
-
351611-568 DECAL, CAUTION - MAX PAYLOAD (ENGLISH)DECAL, CAUTION - MAX PAYLOAD (ENGLISH)
-
361611-569 DECAL, CAUTION - MAX PAYLOAD (FRENCH)DECAL, CAUTION - MAX PAYLOAD (FRENCH)
-
371611-566 DECAL, WARNING - TOWING (ENGLISH)DECAL, WARNING - TOWING (ENGLISH)
