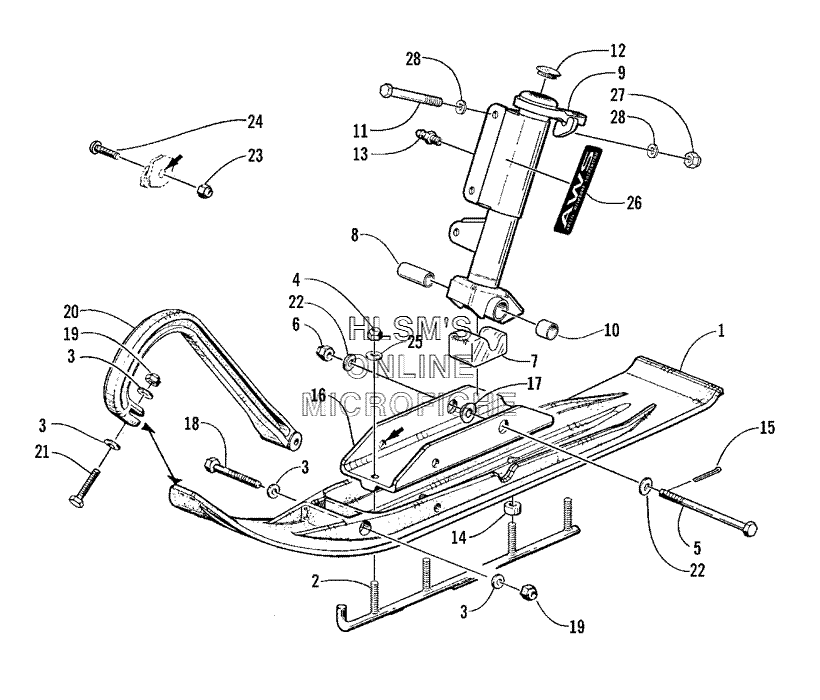

SKI AND SPINDLE ASSEMBLY для Arctic Cat Bearcat 440 II - 2000 года выпуска
-
№АртикулНазвание
-
10703-492 SKISKI
-
20703-360 WEARBARWEARBAR
-
38050-247 WASHERWASHER
-
48040-486 NUT, LOCKNUT, LOCK
-
50623-552 SCREW, CAPSCREW, CAP
-
60123-296 NUT, LOCKNUT, LOCK
-
70603-036 DAMPER, SKIDAMPER, SKI
-
80603-034 AXLE, SPINDLEAXLE, SPINDLE
-
90703-266 SPINDLE, STEERING - RIGHT (INC. TWO NO. 10)SPINDLE, STEERING - RIGHT (INC. TWO NO. 10)
-
90703-267 SPINDLE, STEERING - LEFT (INC. TWO NO. 10)SPINDLE, STEERING - LEFT (INC. TWO NO. 10)
-
100603-158 . BEARING. BEARING
-
118013-232 SCREW, CAPSCREW, CAP
-
120603-049 CAP, SPINDLECAP, SPINDLE
-
130623-010 FITTING, GREASEFITTING, GREASE
-
140603-616 SPACER, SADDLESPACER, SADDLE
-
150123-458 PIN, COTTERPIN, COTTER
-
160703-269 SADDLE, SKI (INC. 17)SADDLE, SKI (INC. 17)
-
170603-621 . INSERT, SKI SADDLE. INSERT, SKI SADDLE
-
188002-143 SCREW, CAPSCREW, CAP
-
198041-426 NUT, LOCKNUT, LOCK
-
200603-624 HANDLE, PLASTICHANDLE, PLASTIC
-
218002-135 SCREW, CAPSCREW, CAP
-
220623-728 WASHERWASHER
-
238041-366 NUT, LOCKNUT, LOCK
-
248017-581 SCREW, MACHINESCREW, MACHINE
-
258050-277 WASHERWASHER
-
263611-468 DECAL, SPINDLE - ''AWS''DECAL, SPINDLE - ''AWS''
-
270623-026 NUT, LOCKNUT, LOCK
-
288051-277 WASHER, LOCKWASHER, LOCK
