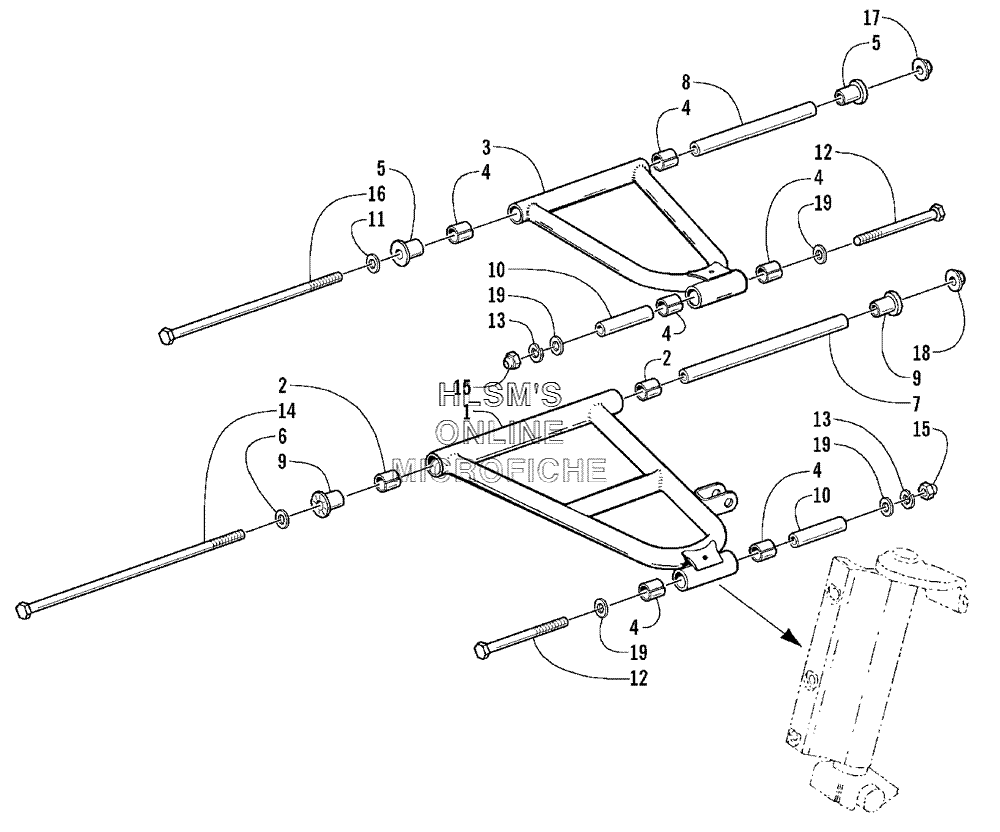

A-ARM ASSEMBLY для Arctic Cat Pantera 550 - 2000 года выпуска
-
№АртикулНазвание
-
10703-526 ARM, LOWER - RIGHT (INC. 2 AND 4)ARM, LOWER - RIGHT (INC. 2 AND 4)
-
10703-527 ARM, LOWER - LEFT (INC. 2 AND 4)ARM, LOWER - LEFT (INC. 2 AND 4)
-
20603-158 . BEARING. BEARING
-
30703-494 ARM, UPPER (INC. 4)ARM, UPPER (INC. 4)
-
40603-083 . BEARING. BEARING
-
51603-244 AXLE, POWDER METALAXLE, POWDER METAL
-
60623-663 WASHERWASHER
-
70603-693 TUBE, AXLETUBE, AXLE
-
80603-692 TUBE, AXLETUBE, AXLE
-
90603-524 AXLE, SERRATEDAXLE, SERRATED
-
100603-830 AXLE, SPINDLE MOUNTAXLE, SPINDLE MOUNT
-
110623-664 WASHERWASHER
-
120623-657 SCREW, CAPSCREW, CAP
-
138051-277 WASHER, LOCKWASHER, LOCK
-
140623-508 SCREW, CAPSCREW, CAP
-
150623-026 NUT, LOCKNUT, LOCK
-
160623-509 SCREW, CAPSCREW, CAP
-
170623-661 NUT, LOCKNUT, LOCK
-
180623-660 NUT, LOCKNUT, LOCK
-
198050-277 WASHERWASHER
