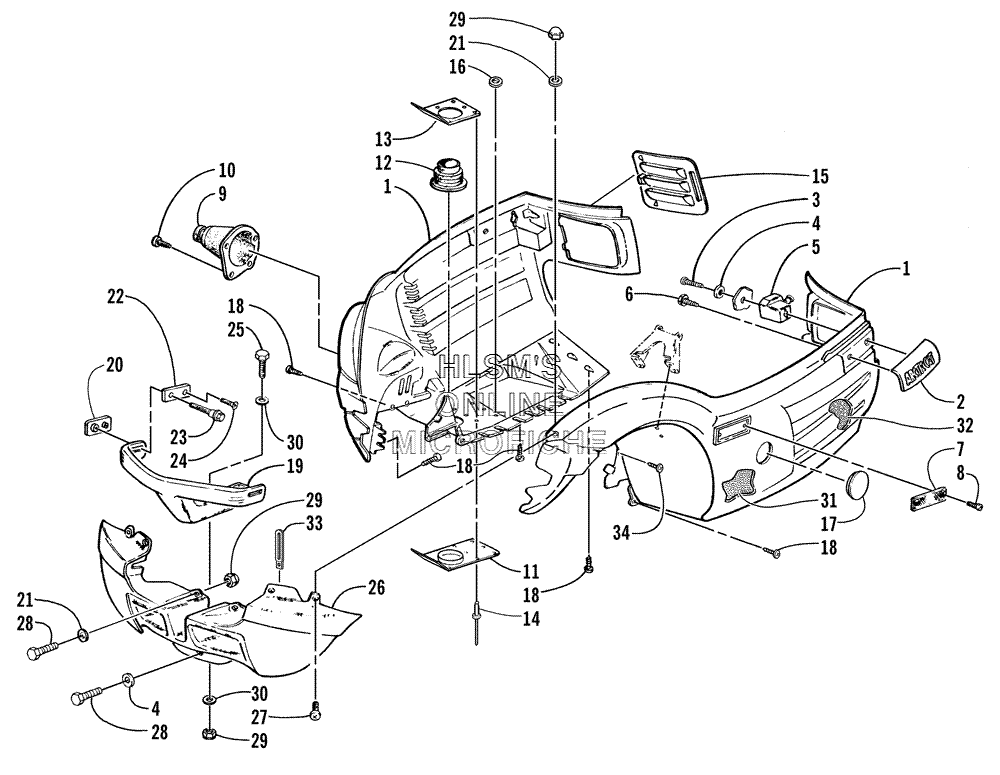

BELLY PAN AND FRONT BUMPER ASSEMBLY для Arctic Cat Pantera 550 - 2000 года выпуска
-
№АртикулНазвание
-
11606-522 BELLY PAN - RIGHTBELLY PAN - RIGHT
-
11606-179 BELLY PAN - LEFTBELLY PAN - LEFT
-
21606-064 BUMPER, BELLY PAN - RIGHTBUMPER, BELLY PAN - RIGHT
-
21606-065 BUMPER, BELLY PAN - LEFTBUMPER, BELLY PAN - LEFT
-
30623-647 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
40623-184 WASHERWASHER
-
51606-094 SUPPORT, BELLY PAN - RIGHTSUPPORT, BELLY PAN - RIGHT
-
51606-095 SUPPORT, BELLY PAN - LEFTSUPPORT, BELLY PAN - LEFT
-
60623-301 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
70606-526 REFLECTOR, FRONT - YELLOWREFLECTOR, FRONT - YELLOW
-
80623-269 CLIP, RETAININGCLIP, RETAINING
-
90605-332 BOOT, STEERING - RIGHTBOOT, STEERING - RIGHT
-
90605-333 BOOT, STEERING - LEFTBOOT, STEERING - LEFT
-
100623-564 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
110612-949 RING, EXHAUST OUTLET - LOWERRING, EXHAUST OUTLET - LOWER
-
120612-470 BOOT, EXHAUSTBOOT, EXHAUST
-
130612-950 RING, EXHAUST OUTLET - UPPERRING, EXHAUST OUTLET - UPPER
-
148061-508 RIVETRIVET
-
151606-044 LOUVER, AIR-INTAKE - RIGHTLOUVER, AIR-INTAKE - RIGHT
-
151606-045 LOUVER, AIR-INTAKE - LEFTLOUVER, AIR-INTAKE - LEFT
-
160123-149 WASHERWASHER
-
170623-600 PLUG, BELLY PANPLUG, BELLY PAN
-
180623-797 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
190616-999 BUMPER, FRONTBUMPER, FRONT
-
201606-623 BRACKET, HOOD HINGEBRACKET, HOOD HINGE
-
218050-222 WASHERWASHER
-
220607-524 PLATE, BACKING - HOOD HINGEPLATE, BACKING - HOOD HINGE
-
230623-690 SCREW, HOOD HINGESCREW, HOOD HINGE
-
240623-689 SCREW, MACHINESCREW, MACHINE
-
258002-040 SCREW, CAPSCREW, CAP
-
260616-998 NOSEPIECENOSEPIECE
-
278017-580 SCREW, MACHINESCREW, MACHINE
-
288002-041 SCREW, CAPSCREW, CAP
-
298040-366 NUT, LOCKNUT, LOCK
-
308050-217 WASHERWASHER
-
310617-299 FOAM, DRIVE CLUTCHFOAM, DRIVE CLUTCH
-
320617-300 FOAM, DRIVEN CLUTCHFOAM, DRIVEN CLUTCH
-
333002-964 CLAMP, WIRECLAMP, WIRE
-
340623-700 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
