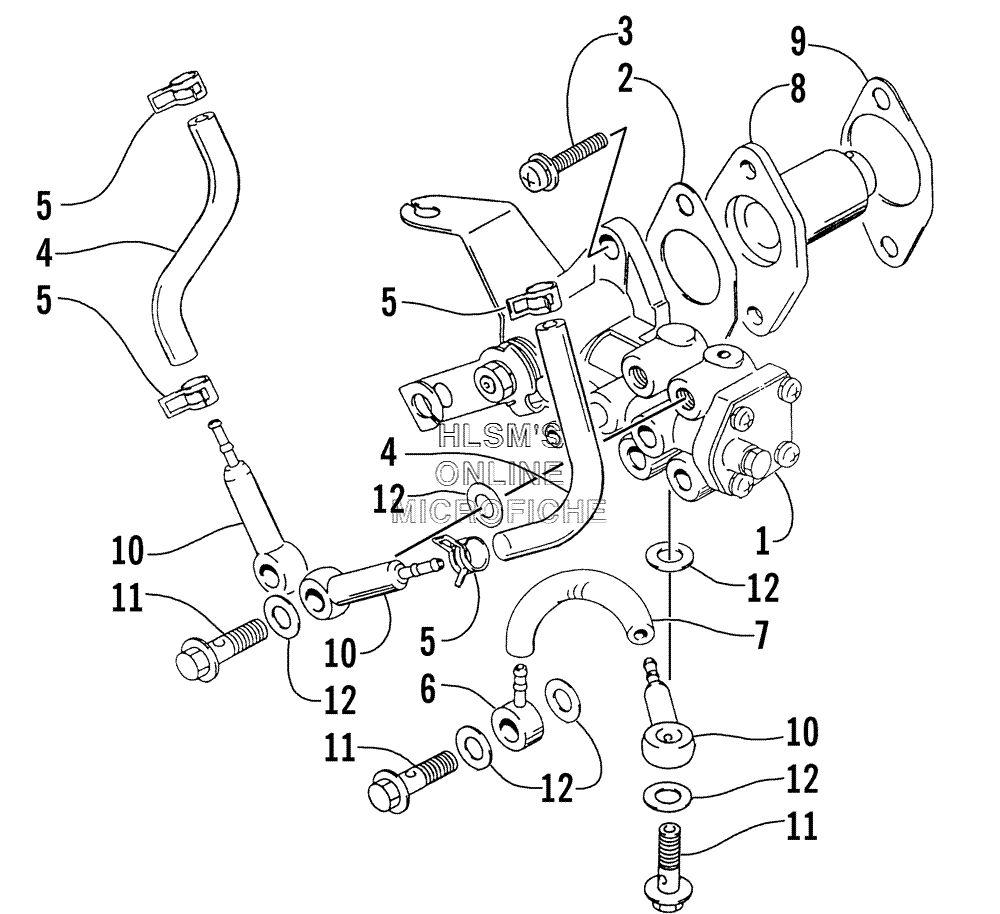

OIL PUMP для Arctic Cat Pantera 550 - 2000 года выпуска
-
№АртикулНазвание
-
13004-394 OIL PUMP ASSEMBLYOIL PUMP ASSEMBLY
-
23004-349 GASKETGASKET
-
33004-373 SCREWSCREW
-
43008-035 HOSE, OIL PUMPHOSE, OIL PUMP
-
53008-037 CLIP, HOSECLIP, HOSE
-
63003-661 UNION, GEAR LUBEUNION, GEAR LUBE
-
73005-357 HOSE, OIL PUMPHOSE, OIL PUMP
-
83004-763 RETAINER, OIL PUMPRETAINER, OIL PUMP
-
93004-286 GASKETGASKET
-
103003-217 VALVE, CHECKVALVE, CHECK
-
113004-346 BOLT, UNIONBOLT, UNION
-
123402-009 GASKET, CHECK VALVEGASKET, CHECK VALVE
