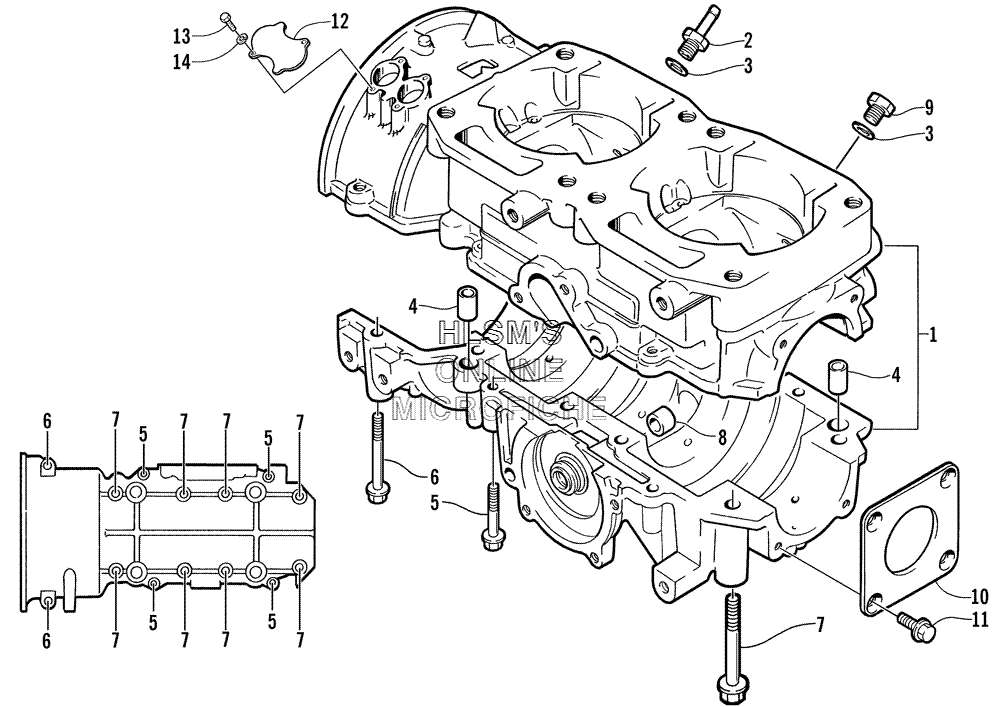

CRANKCASE ASSEMBLY для Arctic Cat Pantera 550 - 2000 года выпуска
-
№АртикулНазвание
-
13005-406 CRANKCASE ASSEMBLY (INC. 4-8)CRANKCASE ASSEMBLY (INC. 4-8)
-
23002-040 UNION, HOSEUNION, HOSE
-
33002-276 GASKETGASKET
-
43003-646 PIN, CRANKCASEPIN, CRANKCASE
-
53004-442 BOLTBOLT
-
63004-444 BOLTBOLT
-
73004-881 BOLTBOLT
-
83003-647 BUSHING, OIL PUMP SHAFTBUSHING, OIL PUMP SHAFT
-
93002-028 PLUG, CRANKCASEPLUG, CRANKCASE
-
103004-775 PLATE, OIL SEALPLATE, OIL SEAL
-
113004-377 BOLTBOLT
-
123003-948 COVER, SENSOR OPENINGCOVER, SENSOR OPENING
-
130903-352 SCREW, CAPSCREW, CAP
-
148051-152 WASHER, LOCKWASHER, LOCK
Все узлы модели:
- A-ARM ASSEMBLY
- AIR SILENCER ASSEMBLY
- ALTERNATE CARBURETOR PARTS
- BACKREST AND TAILLIGHT ASSEMBLY
- BATTERY- SOLENOID- AND CABLES
- BELLY PAN AND FRONT BUMPER ASSEMBLY
- BELT GUARD ASSEMBLY
- CARBURETOR
- CARBURETOR AND FUEL PUMP ASSEMBLY
- CONSOLE AND SWITCH ASSEMBLY
- COOLING ASSEMBLY
- • CRANKCASE ASSEMBLY
- CYLINDER AND HEAD ASSEMBLY
- DRIVE CLUTCH
- DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES
- DRIVE/REVERSE DROPCASE ASSEMBLY
- DRIVEN CLUTCH
- DROPCASE AND CHAIN TENSION ASSEMBLY
- ELECTRIC START - STARTER MOTOR ASSEMBLY
- ELECTRICAL
- ENGINE AND RELATED PARTS
- EXHAUST ASSEMBLY
- FRONT FRAME AND FOOTREST ASSEMBLY
- GAS TANK AND SEAT ASSEMBLY
- HANDLEBAR AND CONTROLS
- HEADLIGHT- INSTRUMENTS- AND WIRING ASSEMBLIES
- HOOD AND WINDSHIELD ASSEMBLY
- HYDRAULIC BRAKE CONTROL ASSEMBLY
- IDLER WHEEL AND AXLE ASSEMBLIES
- MAGNETO
- OIL PUMP
- OIL TANK ASSEMBLY
- PISTON AND CRANKSHAFT
- REAR SUSPENSION FRONT ARM ASSEMBLY
- REAR SUSPENSION REAR ARM ASSEMBLY
- RECOIL STARTER
- RELATED ITEMS
- REVERSE SHIFT LEVER ASSEMBLY
- SHOCK ABSORBER AND SWAY BAR ASSEMBLY
- SKI AND SPINDLE ASSEMBLY
- SLIDE RAIL AND TRACK ASSEMBLY
- STEERING POST ASSEMBLY
- TIE ROD ASSEMBLY
- TUNNEL AND REAR BUMPER
- WATER PUMP/WATER MANIFOLD
