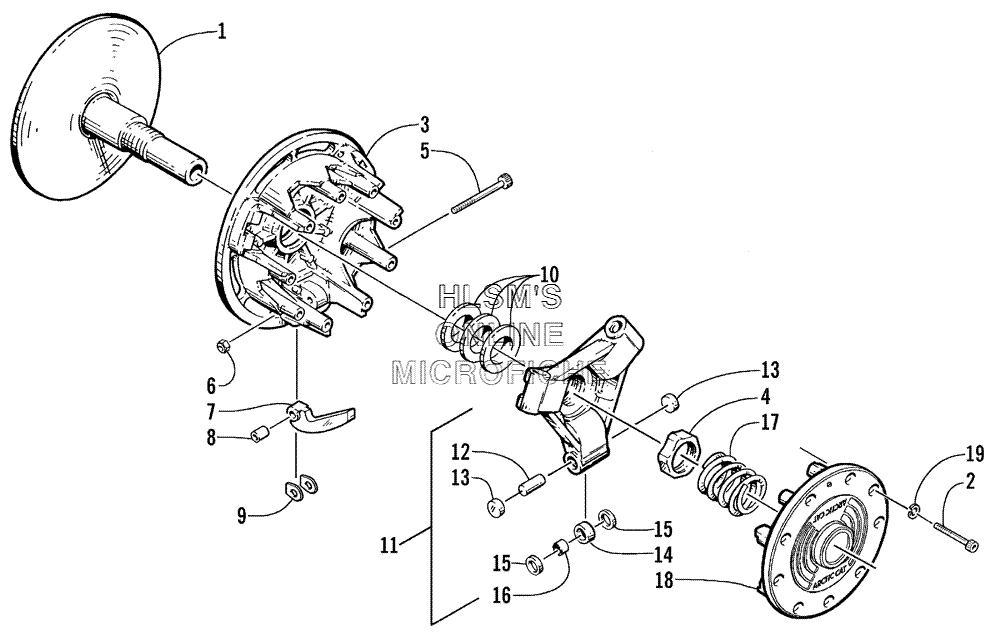

DRIVE CLUTCH для Arctic Cat ZL 600 EFI - 2000 года выпуска

№

Артикул

Название
-

0725-291 CLUTCH, DRIVE-ASSY

CLUTCH, DRIVE-ASSY

127 080 ₽
1

0646-274 SHEAVE, STATIONARY

SHEAVE, STATIONARY

33 690 ₽
2

0623-596 SCREW, MACHINE

SCREW, MACHINE

650 ₽
3

0746-074 SHEAVE, MOVABLE

SHEAVE, MOVABLE

34 940 ₽
4

0646-140 NUT

NUT

2 700 ₽
5

0646-295 PIN, CAM ARM

PIN, CAM ARM

2 280 ₽
6

0623-392 NUT, LOCK

NUT, LOCK

230 ₽
7

0746-582 ARM, CAM (INC. 8)

ARM, CAM (INC. 8)

2 490 ₽
7

0746-607 ARM, CAM (INC. 8) (5, 9, 000 FT ALT.)

ARM, CAM (INC. 8) (5, 9, 000 FT ALT.)

2 070 ₽
7

0746-597 ARM, CAM (INC. 8) (OVER 9, 000 FT ALT.)

ARM, CAM (INC. 8) (OVER 9, 000 FT ALT.)

4 990 ₽
8

0646-160 . BEARING, CAM ARM

. BEARING, CAM ARM

2 280 ₽
9

0646-101 WASHER, CAM ARM

WASHER, CAM ARM

150 ₽
10

0646-265 WASHER, SPACER

WASHER, SPACER

480 ₽
11

0746-090 SPIDER ASSY. (INC. 12, 16)

SPIDER ASSY. (INC. 12, 16)

42 220 ₽
12

0646-270 . PIN, SPIDER

. PIN, SPIDER

3 740 ₽
13

0646-293 . BUTTON, SPIDER

. BUTTON, SPIDER

2 910 ₽
14

0746-067 . ROLLER, SPIDER (INC. 16)

. ROLLER, SPIDER (INC. 16)

9 350 ₽
15

0646-294 . WASHER, ROLLER

. WASHER, ROLLER

2 700 ₽
16

0646-272 . BEARING, ROLLER

. BEARING, ROLLER

3 950 ₽
17

0646-229 SPRING, DRIVE CLUTCH (YELLOW/WHITE)

SPRING, DRIVE CLUTCH (YELLOW/WHITE)

8 110 ₽
18

0746-086 COVER

COVER

17 880 ₽
19

8051-212 WASHER, LOCK

WASHER, LOCK

20 ₽
