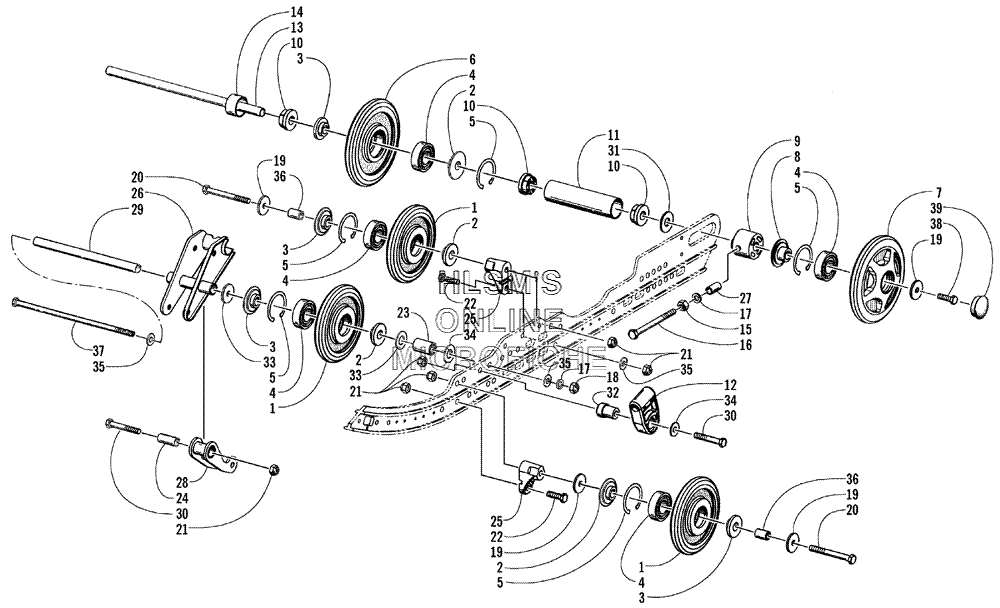

IDLER WHEEL ASSY. для Arctic Cat ZL 600 EFI - 2000 года выпуска
-
№АртикулНазвание
-
10114-240 WHEEL, IDLER (INC. 2, 5)WHEEL, IDLER (INC. 2, 5)
-
20104-340 . INSERT, WHEEL, INSIDE. INSERT, WHEEL, INSIDE
-
30104-341 . INSERT, WHEEL, OUTSIDE. INSERT, WHEEL, OUTSIDE
-
40107-598 . BEARING. BEARING
-
50123-798 . RING, RETAINING. RING, RETAINING
-
60604-210 WHEEL, IDLER (INC. 2, 5)WHEEL, IDLER (INC. 2, 5)
-
70604-980 WHEEL, IDLER (INC. 4, 5 AND 8)WHEEL, IDLER (INC. 4, 5 AND 8)
-
80604-220 . INSERT, WHEEL. INSERT, WHEEL
-
90604-936 BUSHING, ADJUSTERBUSHING, ADJUSTER
-
100604-968 BUSHING, SPACERBUSHING, SPACER
-
111604-107 SPACER WHEEL (REAR)SPACER WHEEL (REAR)
-
121604-143 SLIDE, SPRINGSLIDE, SPRING
-
130604-208 AXLE WHEEL (REAR)AXLE WHEEL (REAR)
-
140604-937 SPACER WHEEL (REAR/OUTER)SPACER WHEEL (REAR/OUTER)
-
158042-486 NUTNUT
-
160623-123 SCREW, CAPSCREW, CAP
-
178051-277 WASHER, LOCKWASHER, LOCK
-
180623-026 NUT, LOCKNUT, LOCK
-
190123-570 WASHERWASHER
-
208002-233 SCREW, CAPSCREW, CAP
-
218040-486 NUT, LOCKNUT, LOCK
-
228002-224 SCREW, CAPSCREW, CAP
-
231604-477 SPACERSPACER
-
241604-329 AXLE REAR SHOCK PIVOTAXLE REAR SHOCK PIVOT
-
250604-911 BLOCK, MOUNTING, IDLER WHEELBLOCK, MOUNTING, IDLER WHEEL
-
260704-396 BRACKET, MOUNTING ARM FRONT SHOCKBRACKET, MOUNTING ARM FRONT SHOCK
-
270604-298 SPACERSPACER
-
280704-394 PIVOT REAR SHOCKPIVOT REAR SHOCK
-
291604-592 AXLE, INNERAXLE, INNER
-
308002-228 SCREW, CAPSCREW, CAP
-
310623-220 WASHERWASHER
-
320604-912 BLOCK, SLIDEBLOCK, SLIDE
-
330623-675 WASHERWASHER
-
348050-282 WASHERWASHER
-
350623-044 WASHERWASHER
-
360603-030 AXLE, SERRATEDAXLE, SERRATED
-
370623-105 SCREW, CAPSCREW, CAP
-
388012-223 SCREW, CAPSCREW, CAP
-
390604-246 CAP, IDLER WHEELCAP, IDLER WHEEL
