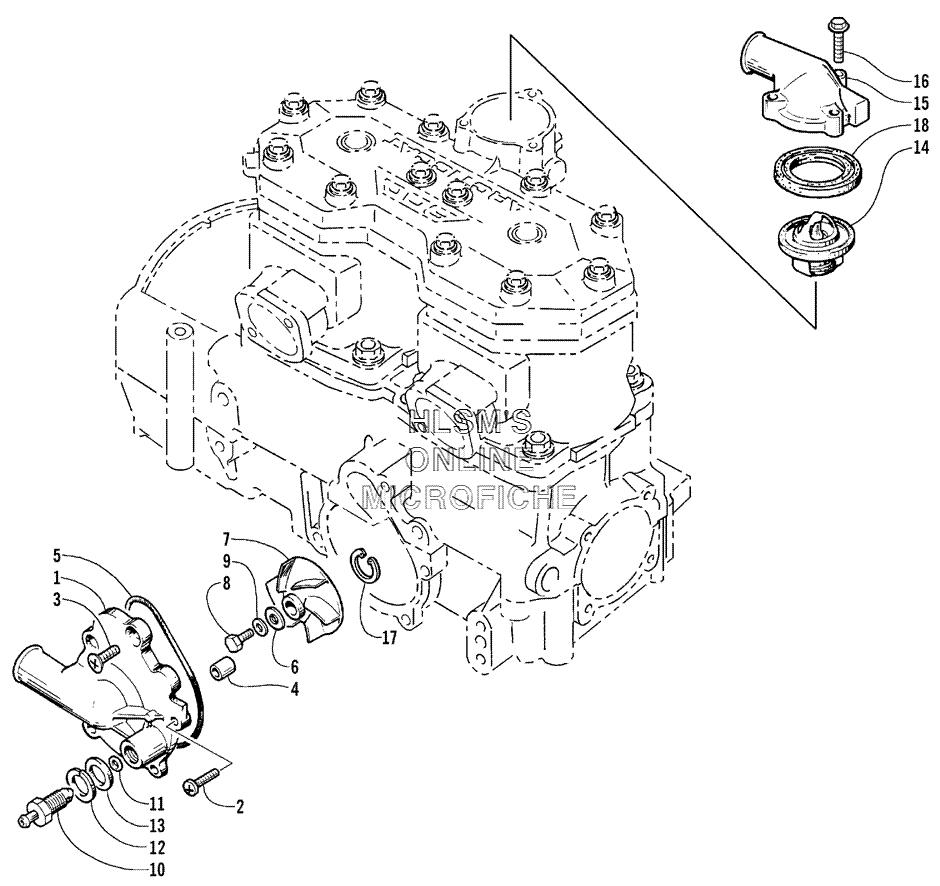

WATER PUMP AND THERMOSTAT для Arctic Cat ZL 600 EFI - 2000 года выпуска
-
№АртикулНазвание
-
13005-519 CASE, WATER PUMPCASE, WATER PUMP
-
23004-402 SCREW, CASESCREW, CASE
-
33004-372 SCREW, CASESCREW, CASE
-
43005-206 PIN, DOWELPIN, DOWEL
-
53003-372 O-RING, CASEO-RING, CASE
-
63003-432 WASHERWASHER
-
73005-697 IMPELLERIMPELLER
-
83003-426 SCREW, CAPSCREW, CAP
-
93003-431 WASHER, SHAFTWASHER, SHAFT
-
103003-618 DRAIN, WATERDRAIN, WATER
-
113005-226 O-RING, DRAINO-RING, DRAIN
-
123004-472 WASHER, LOCKWASHER, LOCK
-
133004-417 WASHERWASHER
-
143004-964 THERMOSTATTHERMOSTAT
-
153003-924 CAP, THERMOSTATCAP, THERMOSTAT
-
163004-376 SCREW, CAPSCREW, CAP
-
173004-009 CIRCLIPCIRCLIP
-
183003-495 GASKET, THERMOSTATGASKET, THERMOSTAT
