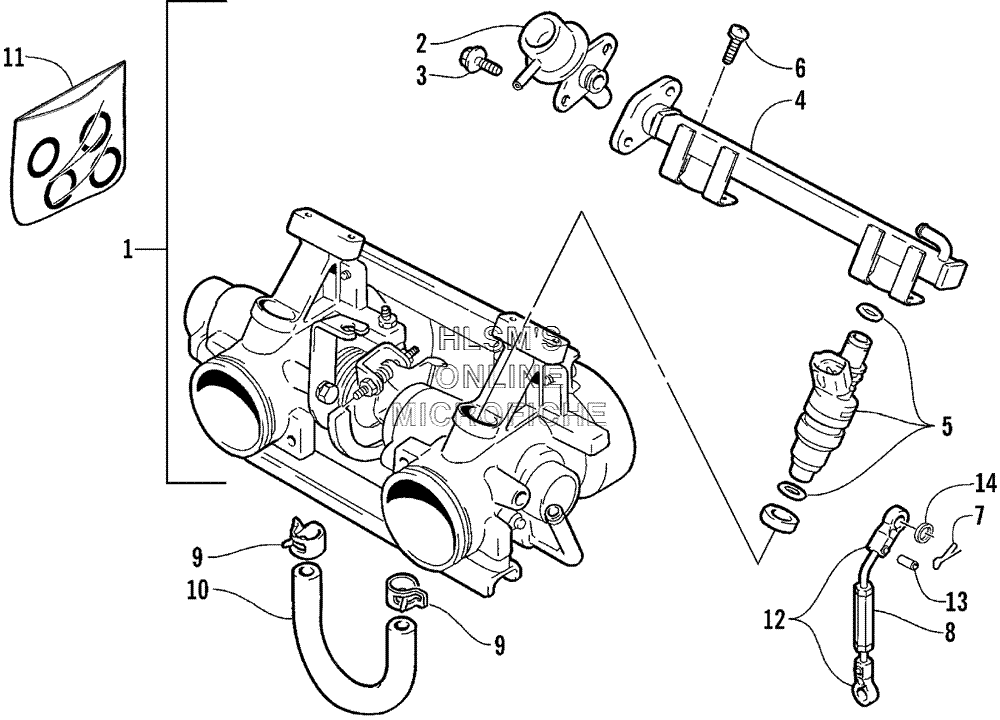

THROTTLE BODY ASSY. для Arctic Cat ZL 600 EFI - 2000 года выпуска
-
№АртикулНазвание
-
13005-678 THROTTLE BODY, ASSY. CIRCLETHROTTLE BODY, ASSY. CIRCLE
-
13005-679 THROTTLE BODY, ASSY. SQUARETHROTTLE BODY, ASSY. SQUARE
-
13005-680 THROTTLE BODY, ASSY. TRIANGLETHROTTLE BODY, ASSY. TRIANGLE
-
23005-074 REGULATOR, FUELREGULATOR, FUEL
-
33004-436 BOLTBOLT
-
43005-691 PIPE, DELIVERYPIPE, DELIVERY
-
53005-705 INJECTOR, FUEL, ASSY. CIRCLEINJECTOR, FUEL, ASSY. CIRCLE
-
53005-690 INJECTOR, FUEL, ASSY. SQUAREINJECTOR, FUEL, ASSY. SQUARE
-
53005-706 INJECTOR, FUEL, ASSY. TRIANGLEINJECTOR, FUEL, ASSY. TRIANGLE
-
63004-436 BOLTBOLT
-
73005-694 PIN, CLIPPIN, CLIP
-
83005-693 ROD, OIL PUMP CONTROLROD, OIL PUMP CONTROL
-
93004-193 CLAMP, HOSECLAMP, HOSE
-
103005-103 HOSEHOSE
-
113005-692 O-RING SETO-RING SET
-
123005-737 END, RODEND, ROD
-
133005-738 PIN, SPRINGPIN, SPRING
-
143005-807 WASHER, PLASTICWASHER, PLASTIC
