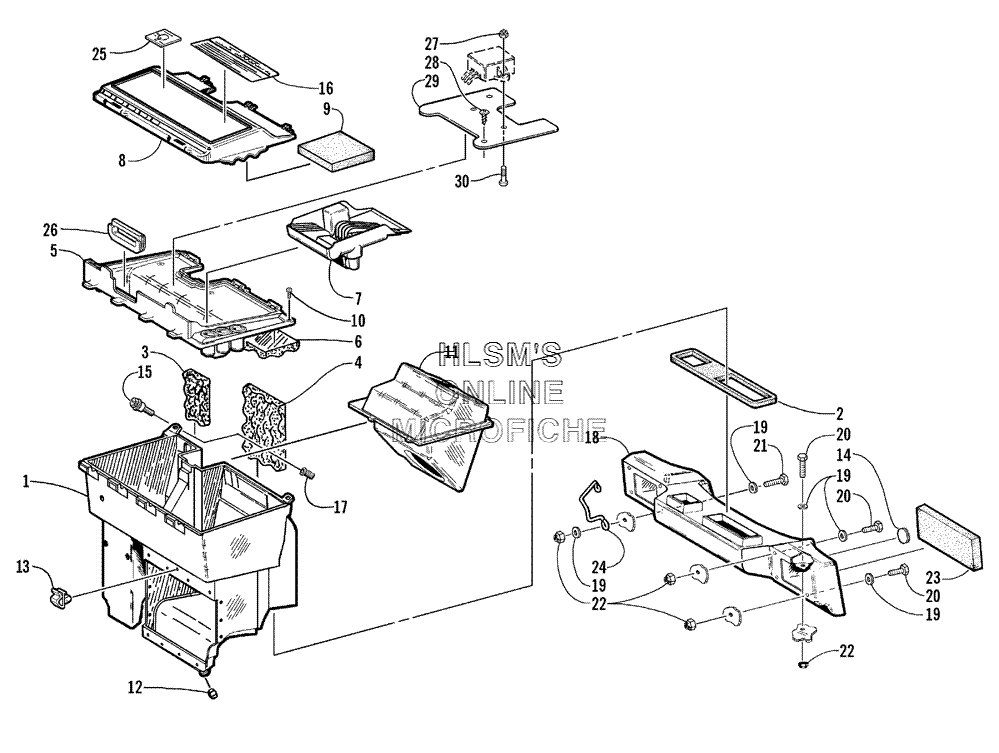

AIR SILENCER ASSY. для Arctic Cat ZR 600 - 2000 года выпуска
-
№АртикулНазвание
-
10770-347 SILENCER, AIR, ASSY.SILENCER, AIR, ASSY.
-
20617-245 SEAL, AIR SILENCER/PLENUMSEAL, AIR SILENCER/PLENUM
-
30617-252 FOAM, AIR SILENCER, BACK (MAGNETO)FOAM, AIR SILENCER, BACK (MAGNETO)
-
40617-253 FOAM, AIR SILENCER, BACK (PTO)FOAM, AIR SILENCER, BACK (PTO)
-
50770-418 COVER, AIR SILENCERCOVER, AIR SILENCER
-
60617-251 FOAM, AIR SILENCER, COVERFOAM, AIR SILENCER, COVER
-
70670-826 TRAY, TOOLTRAY, TOOL
-
81670-049 COVER, TOOL TRAYCOVER, TOOL TRAY
-
90617-294 FOAM, TOOL TRAYFOAM, TOOL TRAY
-
100623-770 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
110670-879 RESONATOR, Q, WAVE, INLETRESONATOR, Q, WAVE, INLET
-
121606-038 BUMPER, AIR SILENCERBUMPER, AIR SILENCER
-
130623-403 CLAMP, PUSH MOUNTCLAMP, PUSH MOUNT
-
140623-078 DISC, VELCRODISC, VELCRO
-
150623-780 SCREW, MACHINE, HEX SHOULDERSCREW, MACHINE, HEX SHOULDER
-
163611-656 DECAL, JET CHARTDECAL, JET CHART
-
170623-779 INSERTINSERT
-
181670-076 PLENUM, AIR SILENCERPLENUM, AIR SILENCER
-
198050-222 WASHERWASHER
-
208002-040 SCREW, CAPSCREW, CAP
-
218002-042 SCREW, CAPSCREW, CAP
-
228040-366 NUT, LOCKNUT, LOCK
-
230617-270 FOAM, PLENUM, INTAKEFOAM, PLENUM, INTAKE
-
240645-269 BRACKET, GUARD, HARNESS/ROPEBRACKET, GUARD, HARNESS/ROPE
-
250611-978 DECAL, FUEL SHUT, OFF VALVEDECAL, FUEL SHUT, OFF VALVE
-
260670-827 GROMMETGROMMET
-
278041-366 NUT, LOCKNUT, LOCK
-
280623-309 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
291606-760 PLATE, CDIPLATE, CDI
-
308017-580 SCREW, MACHINESCREW, MACHINE
