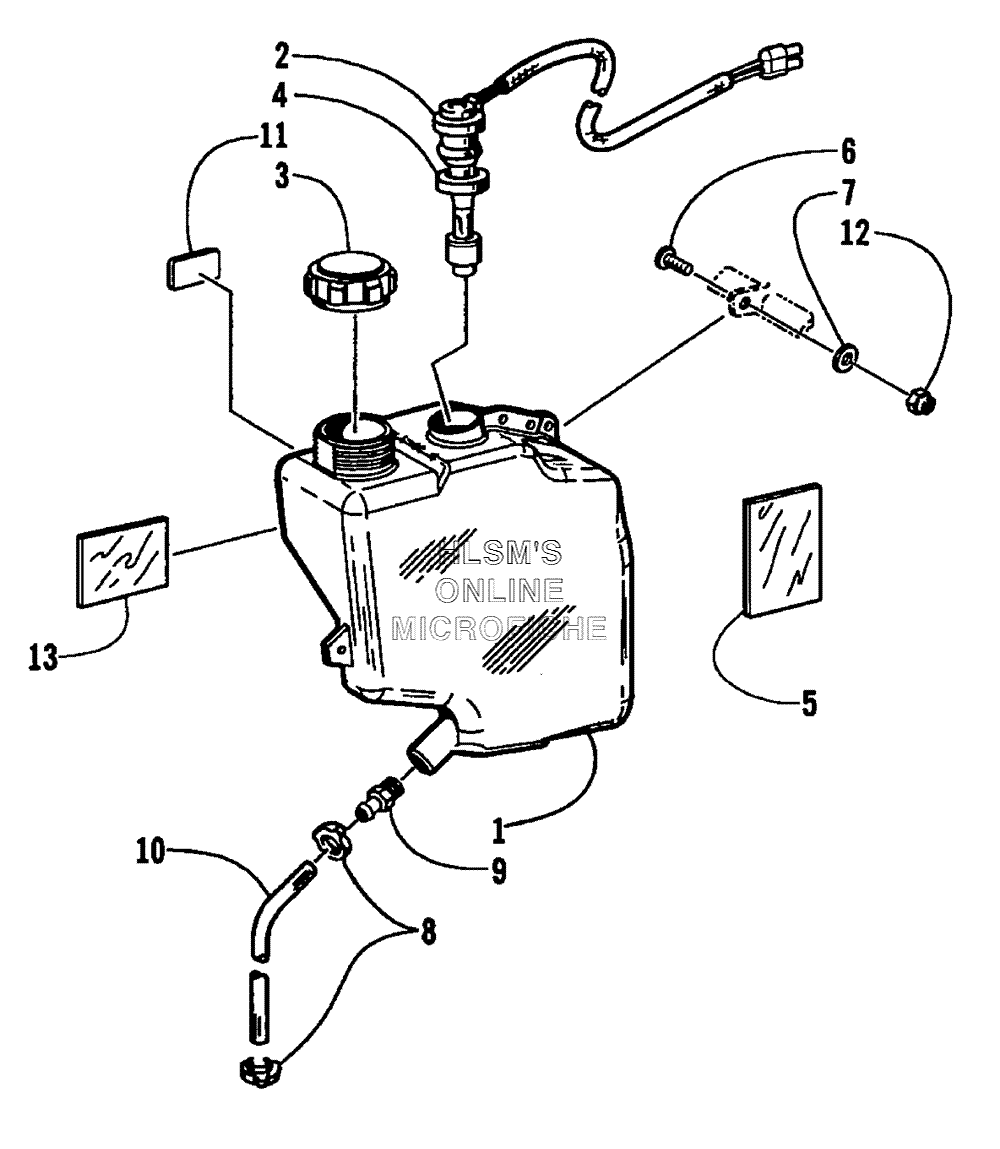

OIL TANK ASSY. для Arctic Cat ZR 600 - 2000 года выпуска
-
№АртикулНазвание
-
11670-026 TANK, OILTANK, OIL
-
20609-236 SENSOR, LOW OILSENSOR, LOW OIL
-
30670-871 CAP, TANKCAP, TANK
-
40609-237 SEAL, GROMMET, OIL SENSORSEAL, GROMMET, OIL SENSOR
-
50619-206 TAPE, FOILTAPE, FOIL
-
68017-580 SCREW, MACHINESCREW, MACHINE
-
78050-217 WASHERWASHER
-
80124-045 CLAMP, HOSECLAMP, HOSE
-
90670-733 OUTLET, OIL TANKOUTLET, OIL TANK
-
100610-015 HOSE, OIL LINE (100 FT)HOSE, OIL LINE (100 FT)
-
100610-016 HOSE, OIL LINE (25 FT)HOSE, OIL LINE (25 FT)
-
111611-564 DECAL, OIL TANKDECAL, OIL TANK
-
128040-366 NUT, LOCKNUT, LOCK
-
130716-348 TAPE, FOILTAPE, FOIL
