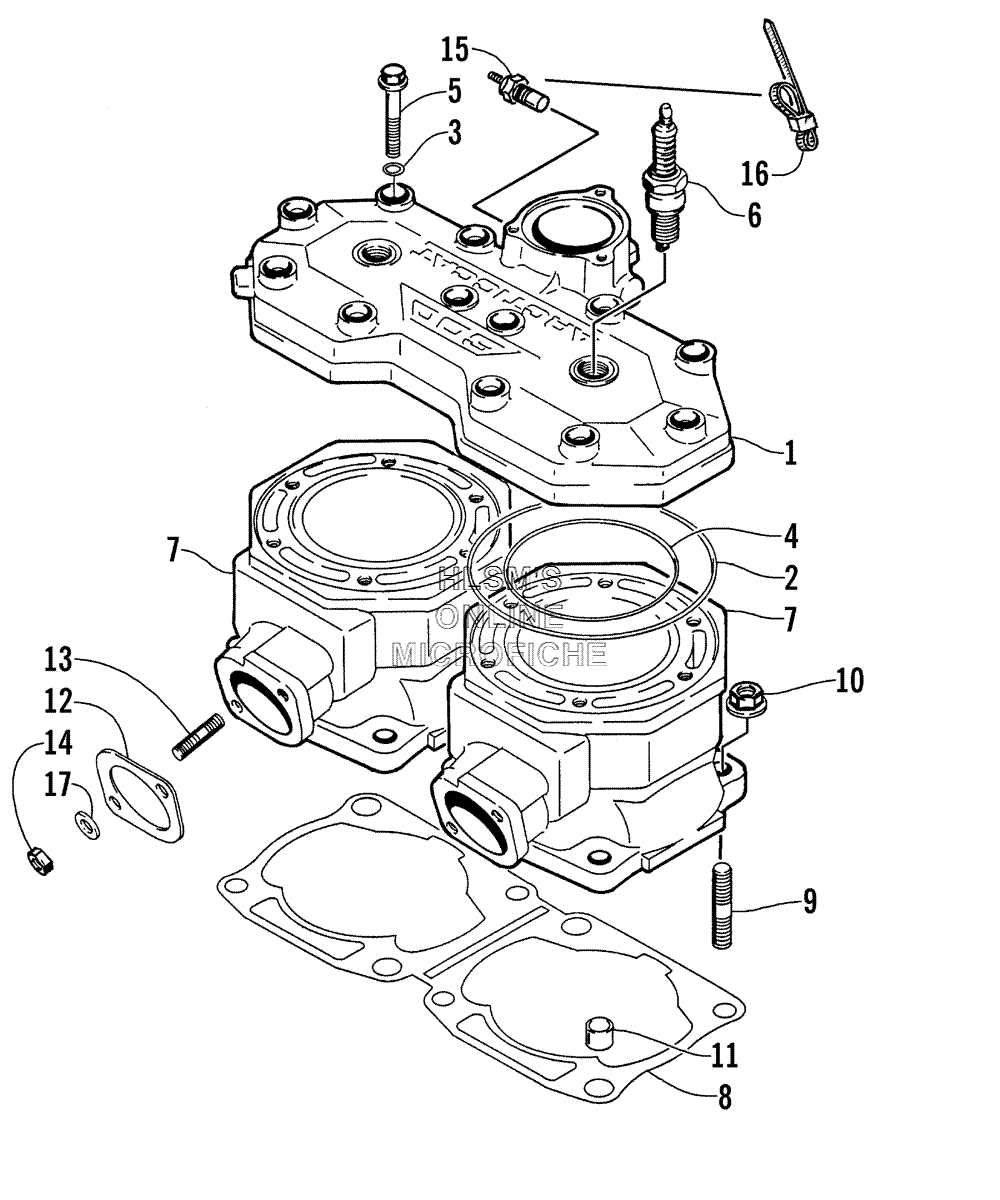

CYLINDER AND HEAD ASSY. для Arctic Cat ZR 600 - 2000 года выпуска
-
№АртикулНазвание
-
13005-489 HEAD, CYLINDERHEAD, CYLINDER
-
23003-765 O-RING, HEAD, OUTERO-RING, HEAD, OUTER
-
33003-227 O-RING, HEAD BOLTO-RING, HEAD BOLT
-
43004-080 O-RING, HEAD, INNERO-RING, HEAD, INNER
-
53004-459 SCREW, CAPSCREW, CAP
-
60217-709 PLUG, SPARK (BR9EYA)PLUG, SPARK (BR9EYA)
-
73005-431 CYLINDERCYLINDER
-
83005-245 GASKET, CYLINDERGASKET, CYLINDER
-
93005-596 BOLT, STUD, CYLINDERBOLT, STUD, CYLINDER
-
103004-491 NUTNUT
-
113004-975 PIN, DOWELPIN, DOWEL
-
123003-503 GASKET, EXHAUSTGASKET, EXHAUST
-
133004-279 BOLT, STUDBOLT, STUD
-
143004-334 NUTNUT
-
150620-049 SENSOR, HEATSENSOR, HEAT
-
160623-285 CABLE TIE, DOUBLE LOOPCABLE TIE, DOUBLE LOOP
-
173004-280 WASHER, LOCKWASHER, LOCK
