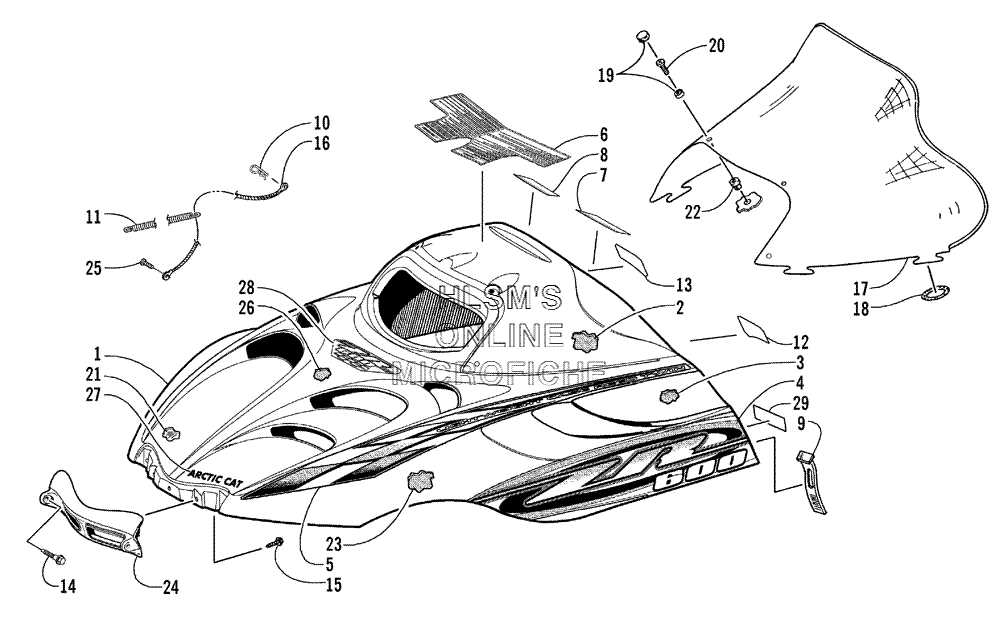

HOOD AND WINDSHIELD ASSY. для Arctic Cat ZR 600 - 2000 года выпуска
-
№АртикулНазвание
-
10718-812 HOOD W/O DECALS (GREEN)HOOD W/O DECALS (GREEN)
-
10718-826 HOOD W/DECALS (GREEN)HOOD W/DECALS (GREEN)
-
10718-839 HOOD W/O DECALS (BLACK)HOOD W/O DECALS (BLACK)
-
10718-843 HOOD W/DECALS (BLACK)HOOD W/DECALS (BLACK)
-
20617-324 FOAM, HOOD (UPPER/MIDDLE/RIGHT)FOAM, HOOD (UPPER/MIDDLE/RIGHT)
-
20617-325 FOAM, HOOD (UPPER/MIDDLE/LEFT)FOAM, HOOD (UPPER/MIDDLE/LEFT)
-
30617-322 FOAM, HOOD (UPPER/RIGHT)FOAM, HOOD (UPPER/RIGHT)
-
30617-323 FOAM, HOOD (UPPER/LEFT)FOAM, HOOD (UPPER/LEFT)
-
43611-496 DECAL, HOOD (LOWER/RIGHT) (GREEN)DECAL, HOOD (LOWER/RIGHT) (GREEN)
-
43611-497 DECAL, HOOD (LOWER/LEFT) (GREEN)DECAL, HOOD (LOWER/LEFT) (GREEN)
-
43611-736 DECAL, HOOD (LOWER/RIGHT) (BLACK)DECAL, HOOD (LOWER/RIGHT) (BLACK)
-
43611-737 DECAL, HOOD (LOWER/LEFT) (BLACK)DECAL, HOOD (LOWER/LEFT) (BLACK)
-
53611-500 DECAL, HOOD (UPPER/RIGHT) (GREEN)DECAL, HOOD (UPPER/RIGHT) (GREEN)
-
53611-501 DECAL, HOOD (UPPER/LEFT) (GREEN)DECAL, HOOD (UPPER/LEFT) (GREEN)
-
53611-740 DECAL, HOOD (UPPER/RIGHT) (BLACK)DECAL, HOOD (UPPER/RIGHT) (BLACK)
-
53611-741 DECAL, HOOD (UPPER/LEFT) (BLACK)DECAL, HOOD (UPPER/LEFT) (BLACK)
-
63611-485 DECAL, WARNING, GENERAL AND BRAKEDECAL, WARNING, GENERAL AND BRAKE
-
73611-486 DECAL, CAUTION, ENGINE/BATTERY (ENGLISH)DECAL, CAUTION, ENGINE/BATTERY (ENGLISH)
-
83611-487 DECAL, CAUTION, ENGINE/BATTERY (FRENCH)DECAL, CAUTION, ENGINE/BATTERY (FRENCH)
-
91606-067 STRAP, HOLD, DOWNSTRAP, HOLD, DOWN
-
100623-805 HAIRPIN, COTTERHAIRPIN, COTTER
-
110123-510 SPRING, EXTENSIONSPRING, EXTENSION
-
123611-488 DECAL, CAUTION, FUEL (ENGLISH)DECAL, CAUTION, FUEL (ENGLISH)
-
133611-489 DECAL, CAUTION, FUEL (FRENCH)DECAL, CAUTION, FUEL (FRENCH)
-
140623-690 SCREW, MACHINESCREW, MACHINE
-
150623-797 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
161606-158 CABLE, HOODCABLE, HOOD
-
171606-696 WINDSHIELDWINDSHIELD
-
180616-032 O-RINGO-RING
-
190124-054 SNAP CAP W/WASHERSNAP CAP W/WASHER
-
200623-413 SCREW, MACHINESCREW, MACHINE
-
211606-938 FOIL, HOOD (RIGHT)FOIL, HOOD (RIGHT)
-
211606-939 FOIL, HOOD (LEFT)FOIL, HOOD (LEFT)
-
220623-845 NUT, EXPANSIONNUT, EXPANSION
-
230617-236 FOAM, HOOD (REAR) (RIGHT)FOAM, HOOD (REAR) (RIGHT)
-
230617-237 FOAM, HOOD (REAR) (LEFT)FOAM, HOOD (REAR) (LEFT)
-
241606-941 HINGE, HOOD (GREEN)HINGE, HOOD (GREEN)
-
241606-720 HINGE, HOOD (BLACK)HINGE, HOOD (BLACK)
-
250623-057 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
260617-328 FOAM, HOOD (MIDDLE)FOAM, HOOD (MIDDLE)
-
273611-187 DECAL, "ARCTIC CAT", HOOD (GREEN)DECAL, "ARCTIC CAT", HOOD (GREEN)
-
273611-186 DECAL, "ARCTIC CAT", HOOD (BLACK)DECAL, "ARCTIC CAT", HOOD (BLACK)
-
283611-492 DECAL, HOOD (CENTER) (GREEN)DECAL, HOOD (CENTER) (GREEN)
-
283611-732 DECAL, HOOD (CENTER) (BLACK)DECAL, HOOD (CENTER) (BLACK)
-
293611-509 DECAL, WARNING, SEATING CAPACITYDECAL, WARNING, SEATING CAPACITY
