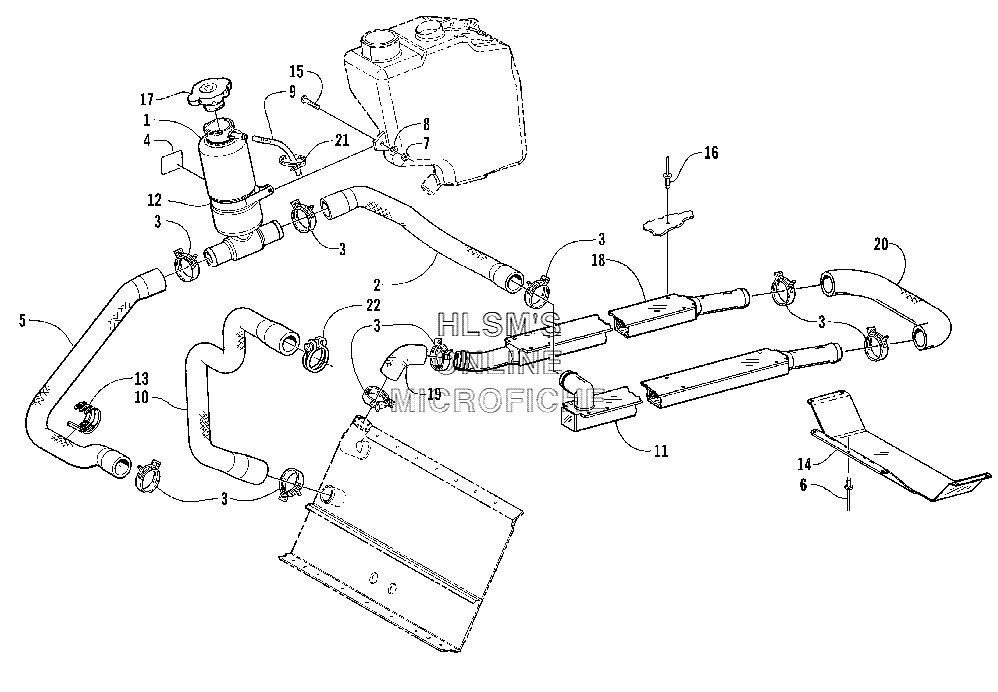

COOLING ASSEMBLY для Arctic Cat PANTHER 550 (INTERNATIONAL) - 2001 года выпуска
-
№АртикулНазвание
-
11606-396 TANK, COOLANTTANK, COOLANT
-
20610-379 HOSE, COOLANT TANK/LEFT HEAT EXCHANGERHOSE, COOLANT TANK/LEFT HEAT EXCHANGER
-
30623-736 CLAMP, HOSECLAMP, HOSE
-
42611-758 DECAL, FILL LEVEL - COOLANT TANKDECAL, FILL LEVEL - COOLANT TANK
-
50610-378 HOSE, COOLANT - ENGINE/COOLANT TANKHOSE, COOLANT - ENGINE/COOLANT TANK
-
68060-504 RIVETRIVET
-
78040-366 NUT, LOCKNUT, LOCK
-
88050-217 WASHERWASHER
-
90610-016 HOSE, VENT - 25 FTHOSE, VENT - 25 FT
-
90610-015 HOSE, VENT - 100 FTHOSE, VENT - 100 FT
-
100610-336 HOSE, COOLANT - ENGINE/ FRONT HEAT EXCHANGERHOSE, COOLANT - ENGINE/ FRONT HEAT EXCHANGER
-
110716-839 HEAT EXCHANGER - LEFT TUBEHEAT EXCHANGER - LEFT TUBE
-
120623-761 CLAMP, COOLANT TANKCLAMP, COOLANT TANK
-
130623-540 CABLE TIE - TRIPLECABLE TIE - TRIPLE
-
141606-411 GUARD, COOLANT HOSEGUARD, COOLANT HOSE
-
158017-580 SCREW, CAPSCREW, CAP
-
168060-706 RIVETRIVET
-
170606-268 CAP, FILLER NECKCAP, FILLER NECK
-
180716-838 HEAT EXCHANGER - RIGHT TUBEHEAT EXCHANGER - RIGHT TUBE
-
190610-244 HOSE, COOLANT - FRONT HEAT EXCHANGER/ RIGHT HEAT EXCHANGERHOSE, COOLANT - FRONT HEAT EXCHANGER/ RIGHT HEAT EXCHANGER
-
200610-361 HOSE, COOLANT - REARHOSE, COOLANT - REAR
-
210123-788 CABLE TIE - 7 IN.CABLE TIE - 7 IN.
-
220623-424 CLAMP, HOSECLAMP, HOSE
