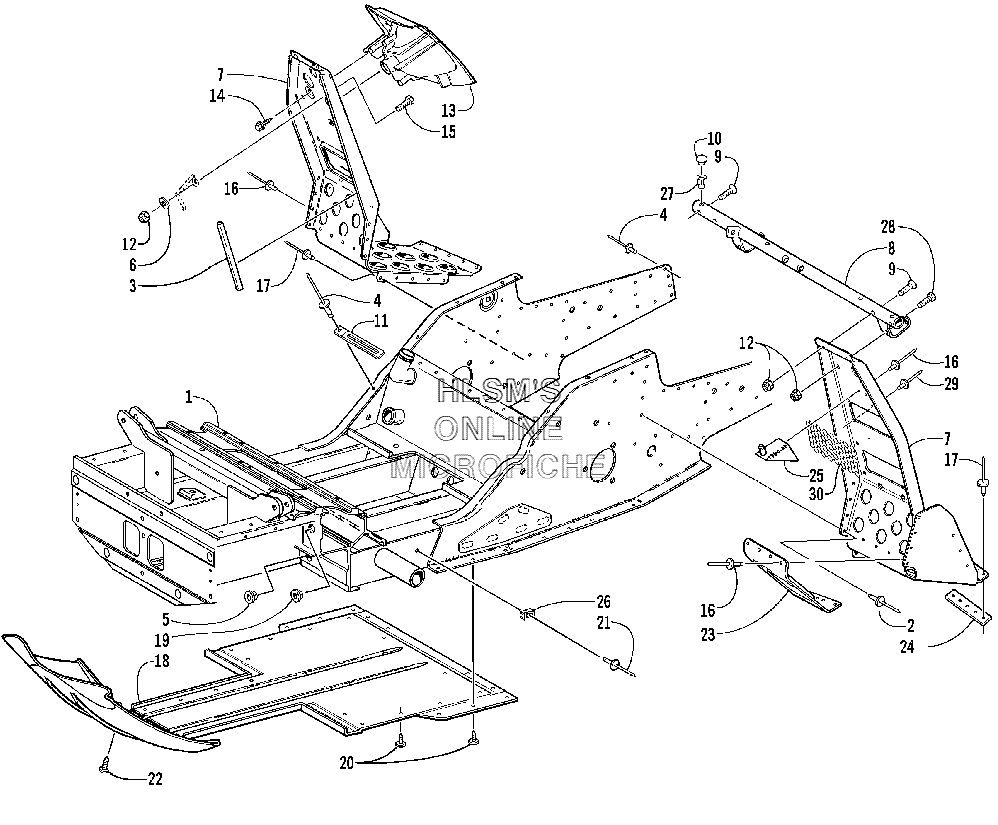

FRONT FRAME AND FOOTREST ASSEMBLY для Arctic Cat PANTHER 550 (INTERNATIONAL) - 2001 года выпуска
-
№АртикулНазвание
-
10707-523 CHASSIS ASSEMBLYCHASSIS ASSEMBLY
-
20623-341 RIVETRIVET
-
30706-371 TRIMTRIM
-
48060-504 RIVETRIVET
-
50607-420 INSERT, LOWER A-ARM MOUNTINSERT, LOWER A-ARM MOUNT
-
68050-212 WASHERWASHER
-
71706-358 FOOTREST - RIGHT HAND - BLACKFOOTREST - RIGHT HAND - BLACK
-
71706-359 FOOTREST - LEFT HAND - BLACKFOOTREST - LEFT HAND - BLACK
-
80705-365 SUPPORT, STEERING (INC 27)SUPPORT, STEERING (INC 27)
-
98019-614 SCREW, MACHINESCREW, MACHINE
-
102606-073 BUMPER, RUBBERBUMPER, RUBBER
-
113002-964 CLAMP, WIRECLAMP, WIRE
-
128040-366 NUT, LOCKNUT, LOCK
-
131706-157 CUP, RECOIL ROPECUP, RECOIL ROPE
-
140623-297 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
158002-041 SCREW, CAPSCREW, CAP
-
160623-166 RIVETRIVET
-
170623-282 RIVETRIVET
-
181606-719 BELLY PAN - CENTERBELLY PAN - CENTER
-
190607-421 INSERT, UPPER A-ARM MOUNTINSERT, UPPER A-ARM MOUNT
-
200623-797 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
218060-426 RIVETRIVET
-
220623-784 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
231606-542 PLATE, BACKING - RIGHTPLATE, BACKING - RIGHT
-
231606-543 PLATE, BACKING - LEFTPLATE, BACKING - LEFT
-
240616-701 PLATE, BACKING - FOOTRESTPLATE, BACKING - FOOTREST
-
250705-173 BRACKET, MOUNTING - GUARDBRACKET, MOUNTING - GUARD
-
260623-228 MOUNT, CABLE TIEMOUNT, CABLE TIE
-
270623-874 INSERTINSERT
-
288002-040 SCREW, CAPSCREW, CAP
-
298060-704 RIVETRIVET
-
301606-912 SCREEN, GUARDSCREEN, GUARD
