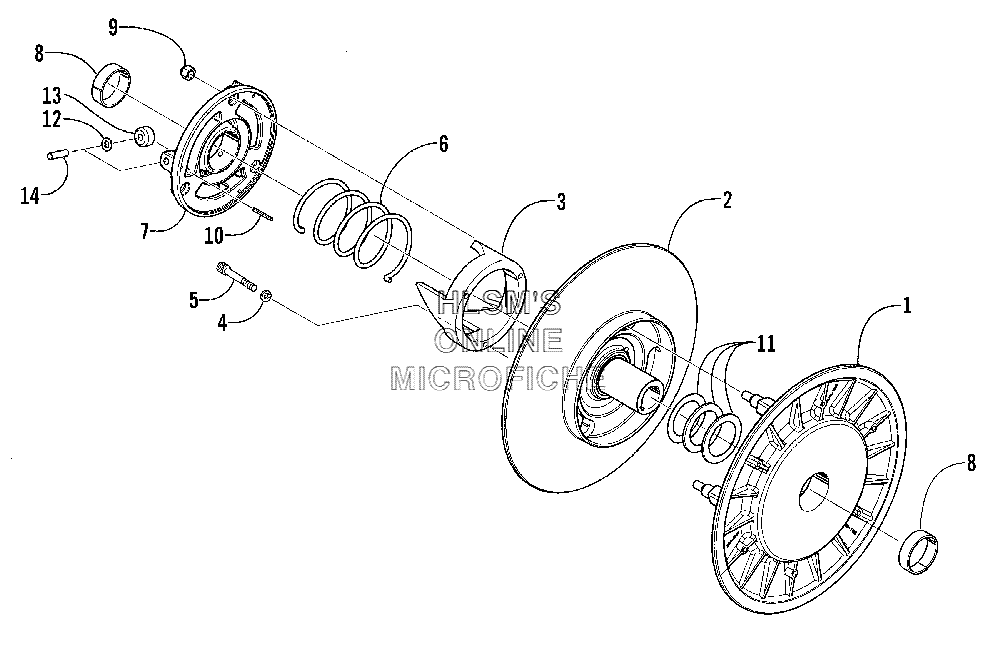

DRIVEN CLUTCH для Arctic Cat PANTHER 550 (INTERNATIONAL) - 2001 года выпуска
-
№АртикулНазвание
-
-0726-088 CLUTCH, DRIVEN ASSEMBLYCLUTCH, DRIVEN ASSEMBLY
-
10748-023 SHEAVE, MOVABLE (INC 8)SHEAVE, MOVABLE (INC 8)
-
20748-021 SHEAVE, STATIONARYSHEAVE, STATIONARY
-
30648-014 BRACKET, TORQUE 49°BRACKET, TORQUE 49°
-
30648-025 BRACKET, TORQUE 47° (OVER 9,000 FT ALT)BRACKET, TORQUE 47° (OVER 9,000 FT ALT)
-
48051-152 WASHER, LOCKWASHER, LOCK
-
58005-404 SCREW, CAPSCREW, CAP
-
60148-227 SPRING, DRIVEN CLUTCH - YELLOWSPRING, DRIVEN CLUTCH - YELLOW
-
70748-018 PLATE, ROLLER - ASSEMBLY (INC 8,10 AND 12-14)PLATE, ROLLER - ASSEMBLY (INC 8,10 AND 12-14)
-
80648-009 BEARINGBEARING
-
98040-426 NUT, LOCKNUT, LOCK
-
108070-224 PIN, SPRINGPIN, SPRING
-
110148-199 WASHER, THRUST: 0.060 IN.WASHER, THRUST: 0.060 IN.
-
110148-198 WASHER, THRUST: 0.030 IN.WASHER, THRUST: 0.030 IN.
-
120648-082 WASHER, THRUST - CAM ROLLERWASHER, THRUST - CAM ROLLER
-
130648-123 ROLLER, CAMROLLER, CAM
-
140648-097 PIN, CAM ROLLERPIN, CAM ROLLER
