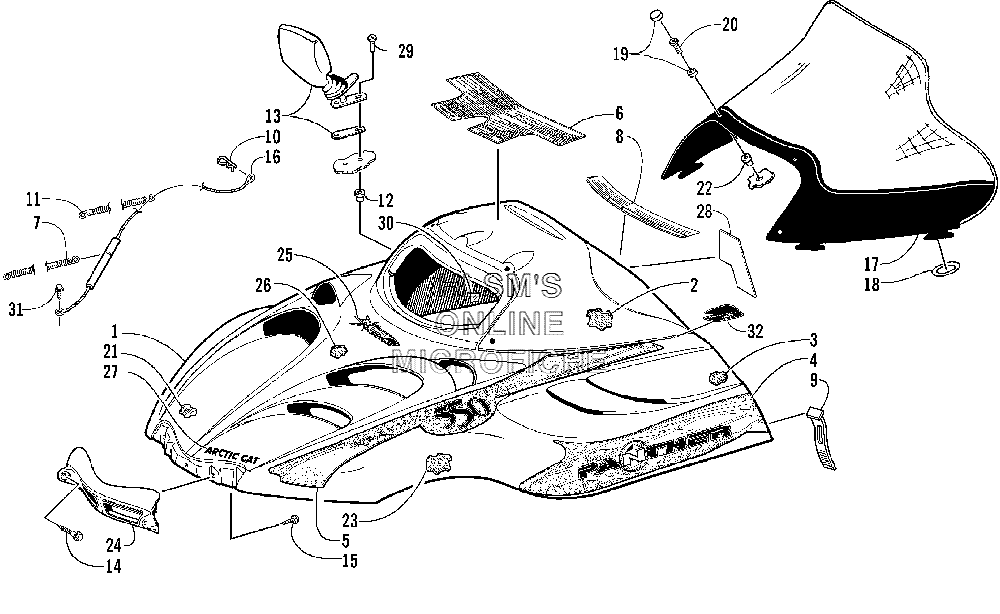

HOOD AND WINDSHIELD ASSEMBLY для Arctic Cat PANTHER 550 (INTERNATIONAL) - 2001 года выпуска
-
№АртикулНазвание
-
10718-916 HOOD W/O DECALSHOOD W/O DECALS
-
10718-917 HOOD W/DECALSHOOD W/DECALS
-
20617-324 FOAM, HOOD - UPPER MIDDLE - RIGHTFOAM, HOOD - UPPER MIDDLE - RIGHT
-
20617-325 FOAM, HOOD - UPPER MIDDLE - LEFTFOAM, HOOD - UPPER MIDDLE - LEFT
-
30617-322 FOAM, HOOD - UPPER RIGHTFOAM, HOOD - UPPER RIGHT
-
30617-323 FOAM, HOOD - UPPER LEFTFOAM, HOOD - UPPER LEFT
-
43611-836 DECAL, HOOD - LOWER RIGHTDECAL, HOOD - LOWER RIGHT
-
43611-837 DECAL, HOOD - LOWER LEFTDECAL, HOOD - LOWER LEFT
-
53611-842 DECAL, HOOD - UPPER RIGHTDECAL, HOOD - UPPER RIGHT
-
53611-843 DECAL, HOOD - UPPER LEFTDECAL, HOOD - UPPER LEFT
-
63611-485 DECAL, WARNING - GENERAL AND BRAKEDECAL, WARNING - GENERAL AND BRAKE
-
70623-199 SPRING, EXTENSIONSPRING, EXTENSION
-
83611-970 DECAL, CAUTION - ENGINE/BATTERY/FUELDECAL, CAUTION - ENGINE/BATTERY/FUEL
-
91606-067 STRAP, HOLD-DOWNSTRAP, HOLD-DOWN
-
100623-805 PIN, COTTERPIN, COTTER
-
110123-510 SPRING, EXTENSIONSPRING, EXTENSION
-
120123-010 NUT, EXPANSIONNUT, EXPANSION
-
130636-630 MIRROR - RIGHT (INC 12 AND 29)MIRROR - RIGHT (INC 12 AND 29)
-
130636-631 MIRROR - LEFT (INC 12 AND 29)MIRROR - LEFT (INC 12 AND 29)
-
140623-690 SCREW, MACHINESCREW, MACHINE
-
150623-797 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
162606-226 CABLE, HOODCABLE, HOOD
-
172606-163 WINDSHIELDWINDSHIELD
-
180616-032 O-RINGO-RING
-
190124-054 SNAP CAP W/WASHERSNAP CAP W/WASHER
-
200623-902 SCREW, MACHINESCREW, MACHINE
-
211606-938 FOIL, HOOD - RIGHTFOIL, HOOD - RIGHT
-
211606-939 FOIL, HOOD - LEFTFOIL, HOOD - LEFT
-
220623-845 NUT, EXPANSIONNUT, EXPANSION
-
230617-326 FOAM, HOOD - REAR - RIGHTFOAM, HOOD - REAR - RIGHT
-
230617-327 FOAM, HOOD - REAR LEFTFOAM, HOOD - REAR LEFT
-
241606-720 HINGE, HOODHINGE, HOOD
-
253611-581 DECAL, ''ESR'' - DOMEDDECAL, ''ESR'' - DOMED
-
260617-328 FOAM, HOOD - MIDDLEFOAM, HOOD - MIDDLE
-
273611-835 DECAL, ''ARCTIC CAT'' - HOODDECAL, ''ARCTIC CAT'' - HOOD
-
283611-580 DECAL, REVERSEDECAL, REVERSE
-
290123-549 SCREW, MACHINESCREW, MACHINE
-
302606-007 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
310623-057 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
324611-334 DECAL, ''ACT'' - HOOD - RIGHTDECAL, ''ACT'' - HOOD - RIGHT
-
324611-335 DECAL, ''ACT'' - HOOD - LEFTDECAL, ''ACT'' - HOOD - LEFT
