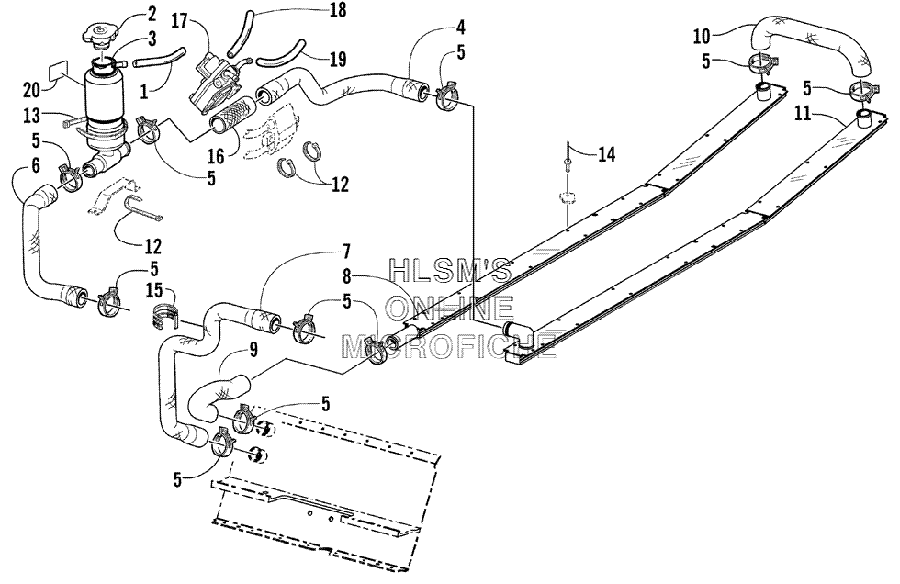

COOLING ASSY. для Arctic Cat ZR 440 SNO PRO (CROSS COUNTRY - USA) - 2001 года выпуска
-
№АртикулНазвание
-
10610-015 HOSE, VENT (100 FT)HOSE, VENT (100 FT)
-
10610-016 HOSE, VENT (25 FT)HOSE, VENT (25 FT)
-
20606-268 CAP, FILLER NECKCAP, FILLER NECK
-
31606-396 TANK, COOLANTTANK, COOLANT
-
40610-337 HOSE, COOLANT (LEFT) HEAT EXCHANGER/ COOLANT TANKHOSE, COOLANT (LEFT) HEAT EXCHANGER/ COOLANT TANK
-
50623-736 CLAMP, HOSE, SPRINGCLAMP, HOSE, SPRING
-
60610-335 HOSE, COOLANT, COOLANT TANK/ENGINEHOSE, COOLANT, COOLANT TANK/ENGINE
-
70610-336 HOSE, COOLANT, ENGINE/FRONT HEAT EXCHANGERHOSE, COOLANT, ENGINE/FRONT HEAT EXCHANGER
-
81706-122 HEAT EXCHANGER TUBE (RIGHT)HEAT EXCHANGER TUBE (RIGHT)
-
90610-444 HOSE, COOLANT HEAT EXCHANGER FRONT/RIGHT HEAT EXCHANGERHOSE, COOLANT HEAT EXCHANGER FRONT/RIGHT HEAT EXCHANGER
-
100610-361 HOSE, COOLANT (REAR)HOSE, COOLANT (REAR)
-
110716-757 HEAT EXCHANGER TUBE (LEFT)HEAT EXCHANGER TUBE (LEFT)
-
120123-788 CABLE TIE, 7 IN.CABLE TIE, 7 IN.
-
130623-751 CABLE TIE, RE, USEABLECABLE TIE, RE, USEABLE
-
148060-706 RIVETRIVET
-
150623-540 CABLE TIE, TRIPLECABLE TIE, TRIPLE
-
160610-420 PROTECTOR, HOSE, NYLONPROTECTOR, HOSE, NYLON
-
171670-162 PUMP, FUELPUMP, FUEL
-
180610-007 HOSE, IMPULSE (25 FT)HOSE, IMPULSE (25 FT)
-
190610-017 HOSE, GASLINE (100 FT)HOSE, GASLINE (100 FT)
-
190610-008 HOSE, GASLINE (25 FT)HOSE, GASLINE (25 FT)
-
202611-758 DECAL, FILL LEVEL, COOLANT TANKDECAL, FILL LEVEL, COOLANT TANK
