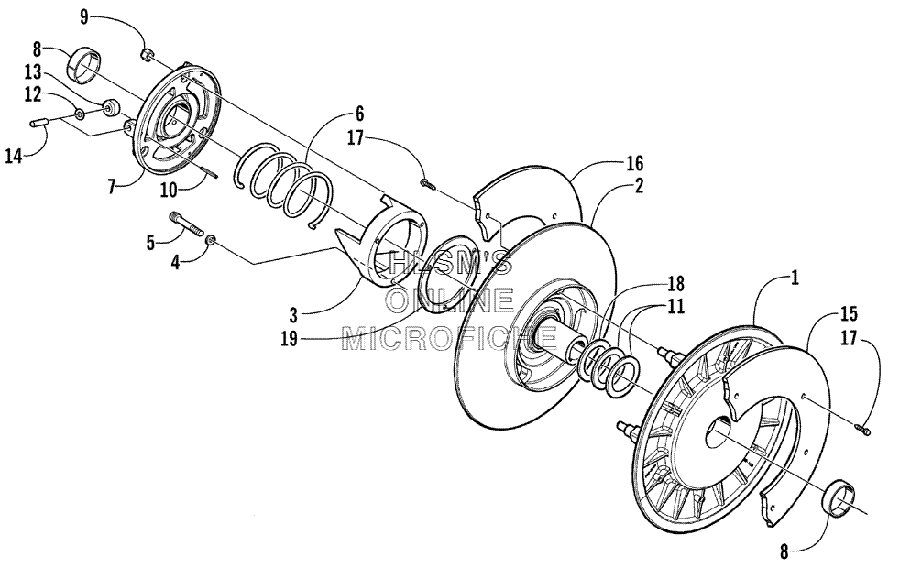

DRIVEN CLUTCH для Arctic Cat ZR 440 SNO PRO (CROSS COUNTRY - USA) - 2001 года выпуска
-
№АртикулНазвание
-
-0726-127 CLUTCH, DRIVE ASSY. (CROSS COUNTRY)CLUTCH, DRIVE ASSY. (CROSS COUNTRY)
-
10748-023 SHEAVE, MOVABLE (INC. 8)SHEAVE, MOVABLE (INC. 8)
-
20748-021 SHEAVE, STATIONARYSHEAVE, STATIONARY
-
30648-130 BRACKET, TORQUE, 55°/52°BRACKET, TORQUE, 55°/52°
-
48051-152 WASHER, LOCKWASHER, LOCK
-
58005-404 SCREW, SOCKET HEADSCREW, SOCKET HEAD
-
60748-025 SPRING, DRIVEN CLUTCH, LIGHT GREENSPRING, DRIVEN CLUTCH, LIGHT GREEN
-
70748-018 PLATE, ROLLER, ASSY. (INC. 8, 10, AND 12, 14)PLATE, ROLLER, ASSY. (INC. 8, 10, AND 12, 14)
-
80648-009 BEARINGBEARING
-
98040-426 NUT, LOCKNUT, LOCK
-
108070-224 PIN, SPRINGPIN, SPRING
-
110148-199 WASHER, THRUST: 0.060 IN.WASHER, THRUST: 0.060 IN.
-
110148-199 WASHER, THRUST: 0.060 IN. (CROSS COUNTRY)WASHER, THRUST: 0.060 IN. (CROSS COUNTRY)
-
120648-082 WASHER, THRUST, CAM ROLLERWASHER, THRUST, CAM ROLLER
-
130648-123 ROLLER, CAMROLLER, CAM
-
140648-097 PIN, CAM ROLLERPIN, CAM ROLLER
-
150148-224 COVER, MOVABLE, SHEAVE (CROSS COUNTRY)COVER, MOVABLE, SHEAVE (CROSS COUNTRY)
-
160148-225 COVER, STATIONARY, SHEAVE (CROSS COUNTRY)COVER, STATIONARY, SHEAVE (CROSS COUNTRY)
-
170623-914 SCREW, SELF, TAPPING (CROSS COUNTRY)SCREW, SELF, TAPPING (CROSS COUNTRY)
-
180623-852 WASHER, THRUST, 0.010 IN.WASHER, THRUST, 0.010 IN.
-
190148-237 SPACERSPACER
