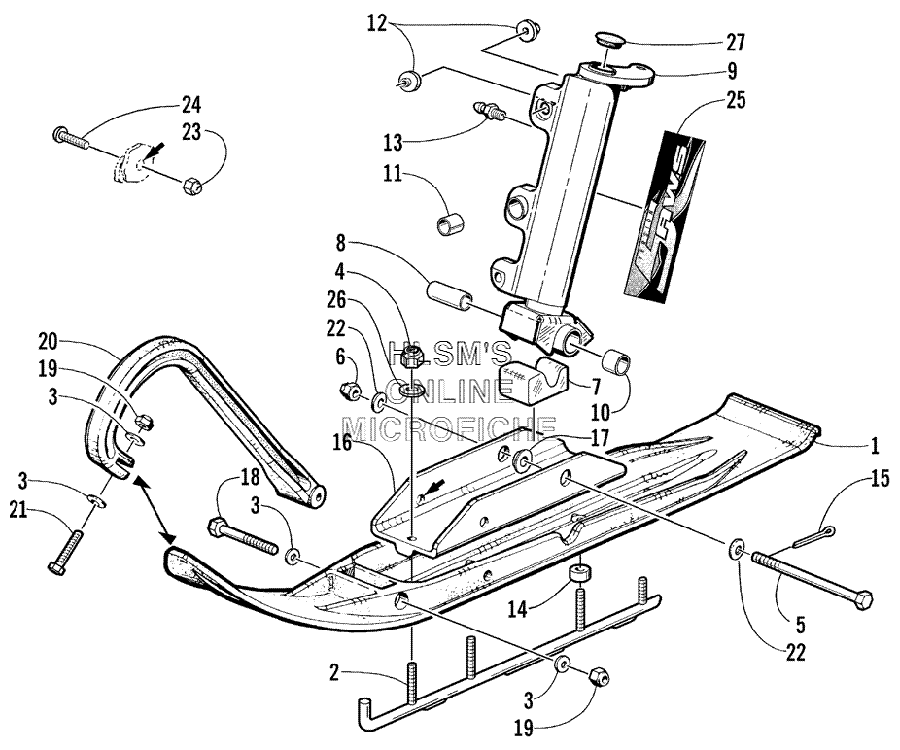

SKI AND SPINDLE ASSY. (CROSS COUNTRY) для Arctic Cat ZR 440 SNO PRO (CROSS COUNTRY - USA) - 2001 года выпуска
‹-+›
-
№АртикулНазвание
-
10703-729 SKI, PLASTIC (GREEN)SKI, PLASTIC (GREEN)
-
20703-360 WEARBARWEARBAR
-
38050-247 WASHERWASHER
-
48040-486 NUT, LOCKNUT, LOCK
-
50623-552 SCREW, CAPSCREW, CAP
-
60123-296 NUT, LOCKNUT, LOCK
-
70603-036 DAMPER, SKIDAMPER, SKI
-
80603-034 AXLE, SPINDLEAXLE, SPINDLE
-
90703-660 SPINDLE, STEERING (RIGHT) (INC. 10, 13)SPINDLE, STEERING (RIGHT) (INC. 10, 13)
-
90703-661 SPINDLE, STEERING (LEFT) (INC. 10, 13)SPINDLE, STEERING (LEFT) (INC. 10, 13)
-
100603-158 BEARINGBEARING
-
110603-083 BEARINGBEARING
-
120603-647 INSERT, SPINDLEINSERT, SPINDLE
-
130623-010 FITTING, GREASEFITTING, GREASE
-
140603-616 SPACER, SADDLESPACER, SADDLE
-
150123-458 PIN, COTTERPIN, COTTER
-
160703-596 SADDLE, SKI (INC. 17)SADDLE, SKI (INC. 17)
-
170603-621 INSERT, SKI SADDLEINSERT, SKI SADDLE
-
188002-143 SCREW, CAPSCREW, CAP
-
198041-426 NUT, LOCKNUT, LOCK
-
200603-624 HANDLE, PLASTICHANDLE, PLASTIC
-
218002-135 SCREW, CAPSCREW, CAP
-
220623-728 WASHERWASHER
-
238041-366 NUT, LOCKNUT, LOCK
-
248017-581 SCREW, MACHINESCREW, MACHINE
-
254611-076 DECAL, "AWS", SPINDLE (RIGHT)DECAL, "AWS", SPINDLE (RIGHT)
-
254611-077 DECAL, "AWS", SPINDLE (LEFT)DECAL, "AWS", SPINDLE (LEFT)
-
268050-277 WASHERWASHER
-
270603-049 CAP, SPINDLECAP, SPINDLE
