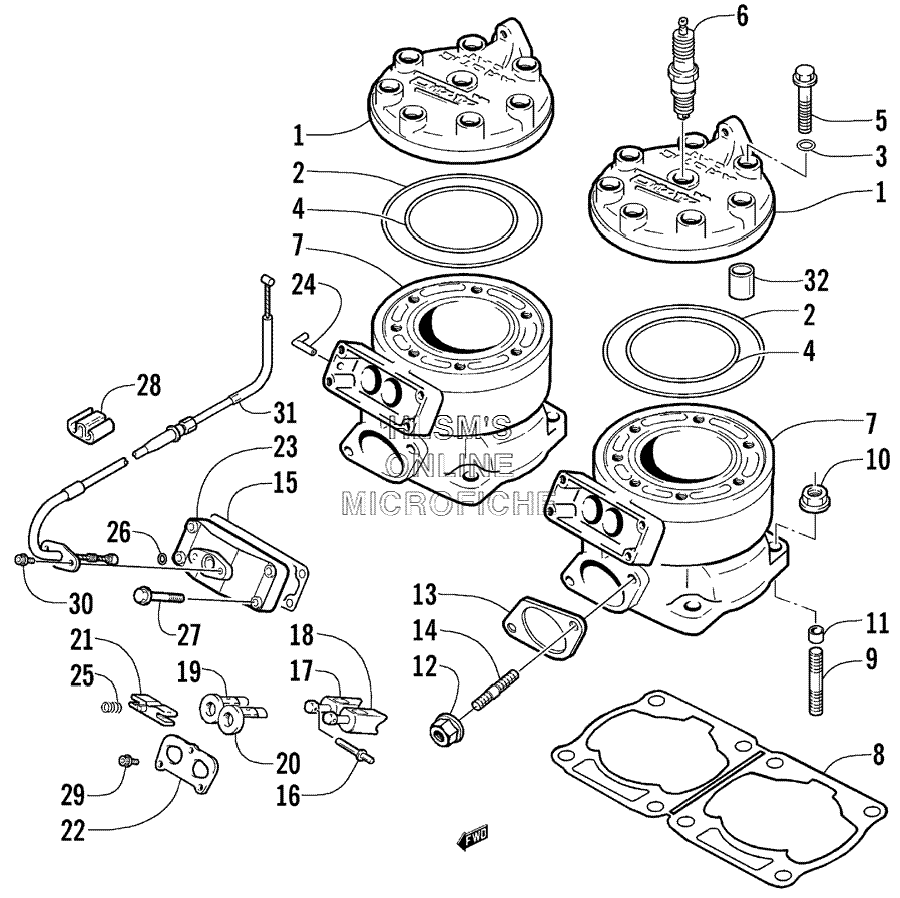

CYLINDER AND HEAD ASSY. для Arctic Cat ZR 440 SNO PRO (CROSS COUNTRY - USA) - 2001 года выпуска
-
№АртикулНазвание
-
13005-804 HEAD, CYLINDERHEAD, CYLINDER
-
23003-226 O-RING, HEAD, OUTERO-RING, HEAD, OUTER
-
33003-227 O-RING, HEAD BOLTO-RING, HEAD BOLT
-
43003-634 O-RING, HEAD, INNERO-RING, HEAD, INNER
-
53004-459 BOLT, HEADBOLT, HEAD
-
60217-709 PLUG, SPARK (BR9EYA)PLUG, SPARK (BR9EYA)
-
73005-802 CYLINDER (W/O STUDS)CYLINDER (W/O STUDS)
-
83004-952 GASKET, CYLINDERGASKET, CYLINDER
-
93005-207 BOLT, STUD, CYLINDERBOLT, STUD, CYLINDER
-
103004-491 NUTNUT
-
113004-975 PIN, DOWELPIN, DOWEL
-
123004-326 NUTNUT
-
133003-503 GASKET, EXHAUSTGASKET, EXHAUST
-
143004-279 BOLT, STUDBOLT, STUD
-
153005-283 GASKET, CYLINDER COVERGASKET, CYLINDER COVER
-
163005-284 PIN, EXHAUST VALVEPIN, EXHAUST VALVE
-
173005-717 VALVE, EXHAUST (RIGHT)VALVE, EXHAUST (RIGHT)
-
183005-718 VALVE, EXHAUST (LEFT)VALVE, EXHAUST (LEFT)
-
193005-719 GUIDE, EXHAUST VALVE (RIGHT)GUIDE, EXHAUST VALVE (RIGHT)
-
203005-720 GUIDE, EXHAUST VALVE (LEFT)GUIDE, EXHAUST VALVE (LEFT)
-
213005-655 STOPPER, EXHAUST VALVESTOPPER, EXHAUST VALVE
-
223005-585 PLATE, EXHAUST VALVEPLATE, EXHAUST VALVE
-
233005-662 COVER, CYLINDERCOVER, CYLINDER
-
243005-589 ELBOWELBOW
-
253005-736 SPRINGSPRING
-
263005-651 O-RINGO-RING
-
273004-426 BOLTBOLT
-
283005-747 HOLDER, CABLE, EXHAUST VALVEHOLDER, CABLE, EXHAUST VALVE
-
293005-564 BOLTBOLT
-
303005-744 BOLTBOLT
-
313005-910 CABLE, EXHAUST VALVECABLE, EXHAUST VALVE
-
323008-199 PIN, DOWELPIN, DOWEL
