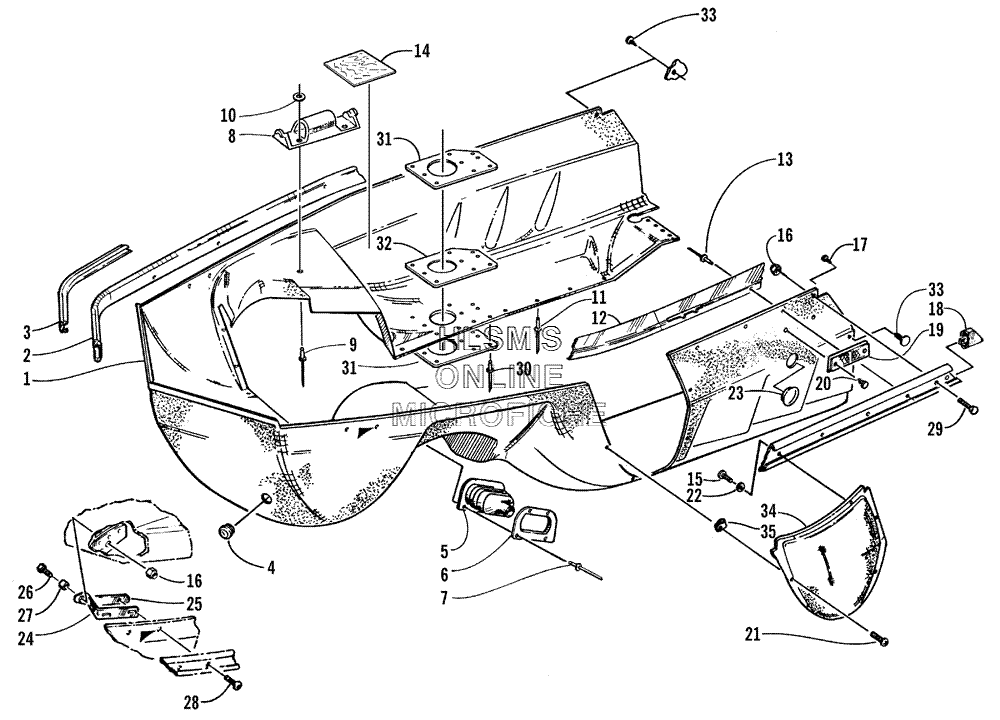

BELLY PAN ASSY. для Arctic Cat BEARCAT WIDE TRACK (USA) - 2002 года выпуска
-
№АртикулНазвание
-
11606-717 BELLY PANBELLY PAN
-
20716-604 BUMPER (FRONT)BUMPER (FRONT)
-
32606-127 INSERT, BUMPERINSERT, BUMPER
-
40616-348 PLUG, BELLY PANPLUG, BELLY PAN
-
50605-187 BOOT, STEERINGBOOT, STEERING
-
60605-188 FLANGE, MOUNTINGFLANGE, MOUNTING
-
78060-708 RIVETRIVET
-
80636-172 CADDY, SPARK PLUG (INC. 9, 10)CADDY, SPARK PLUG (INC. 9, 10)
-
98061-628 RIVETRIVET
-
100123-802 WASHERWASHER
-
118061-508 RIVETRIVET
-
120616-969 CHANNEL, HOOD W/SLOTSCHANNEL, HOOD W/SLOTS
-
120616-970 CHANNEL, HOOD W/O SLOTSCHANNEL, HOOD W/O SLOTS
-
138060-710 RIVETRIVET
-
140619-206 TAPE, FOILTAPE, FOIL
-
150623-121 SCREW, MACHINESCREW, MACHINE
-
168040-366 NUT, LOCKNUT, LOCK
-
170623-378 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
180616-396 END CAP, BUMPER (RIGHT)END CAP, BUMPER (RIGHT)
-
180616-397 END CAP, BUMPER (LEFT)END CAP, BUMPER (LEFT)
-
190606-526 REFLECTOR (FRONT) (AMBER)REFLECTOR (FRONT) (AMBER)
-
200623-269 CLIP, RETAININGCLIP, RETAINING
-
218017-610 SCREW, MACHINESCREW, MACHINE
-
228051-152 WASHER, LOCKWASHER, LOCK
-
230623-600 PLUG, BELLY PANPLUG, BELLY PAN
-
240716-204 BRACKET, HOOD MOUNTING (RIGHT)BRACKET, HOOD MOUNTING (RIGHT)
-
240716-205 BRACKET, HOOD MOUNTING (LEFT)BRACKET, HOOD MOUNTING (LEFT)
-
250616-454 PLATE, BACKINGPLATE, BACKING
-
268002-040 SCREW, CAPSCREW, CAP
-
270107-234 BUSHINGBUSHING
-
280623-472 SCREW, CAPSCREW, CAP
-
290623-458 BOLT, CARRIAGEBOLT, CARRIAGE
-
308060-508 RIVETRIVET
-
311612-196 RING, EXHAUST OUTLETRING, EXHAUST OUTLET
-
321612-197 BOOT, RESONATORBOOT, RESONATOR
-
330623-544 PLUG, RETAININGPLUG, RETAINING
-
340616-876 PANEL, SIDE, BELLY PANPANEL, SIDE, BELLY PAN
-
350623-427 NUT, SPEEDNUT, SPEED
