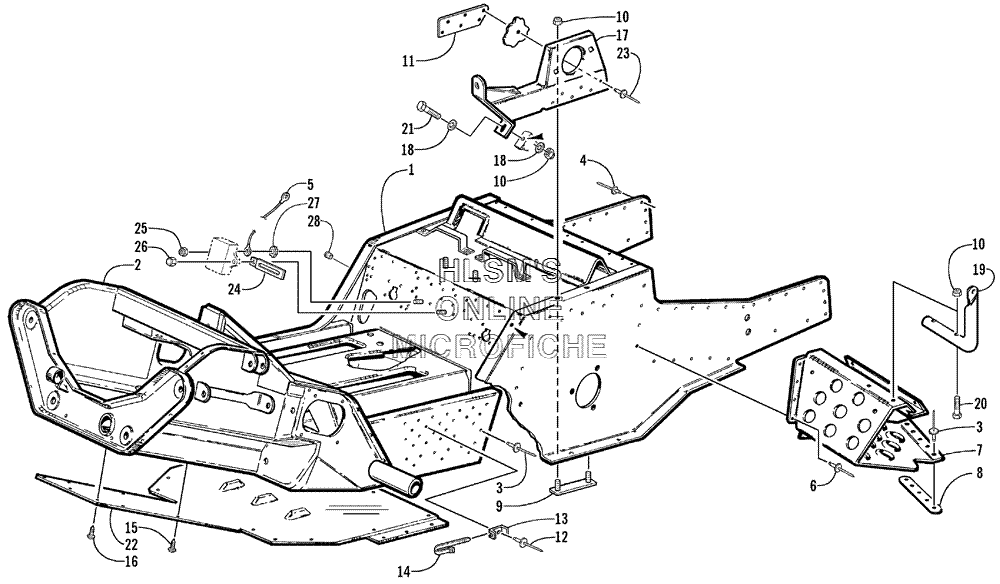

FRONT FRAME AND FOOTREST ASSY. для Arctic Cat BEARCAT WIDE TRACK (USA) - 2002 года выпуска
-
№АртикулНазвание
-
10707-446 FRONT END, CHASSISFRONT END, CHASSIS
-
20707-217 FRONT END, SUSPENSIONFRONT END, SUSPENSION
-
30623-282 RIVETRIVET
-
48060-504 RIVETRIVET
-
50686-126 HARNESS, GROUNDHARNESS, GROUND
-
60623-166 RIVETRIVET
-
71706-868 FOOTREST (RIGHT) (BLACK)FOOTREST (RIGHT) (BLACK)
-
71706-869 FOOTREST (LEFT) (BLACK)FOOTREST (LEFT) (BLACK)
-
80616-701 PLATE, BACKINGPLATE, BACKING
-
90707-064 PLATE, MOUNTINGPLATE, MOUNTING
-
108040-366 NUT, LOCKNUT, LOCK
-
110607-388 PLATE, BACKING, BEARING SUPPORTPLATE, BACKING, BEARING SUPPORT
-
128060-426 RIVETRIVET
-
130623-228 MOUNT, CABLE TIEMOUNT, CABLE TIE
-
140123-788 CABLE TIE, 8 IN.CABLE TIE, 8 IN.
-
150623-569 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
160623-700 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
170707-201 BRACKET, SUPPORT, BEARINGBRACKET, SUPPORT, BEARING
-
188050-217 WASHERWASHER
-
190716-310 TUBE, BUMPER SUPPORTTUBE, BUMPER SUPPORT
-
208002-044 SCREW, CAPSCREW, CAP
-
218002-041 SCREW, CAPSCREW, CAP
-
220716-396 PLATE, SKIDPLATE, SKID
-
230623-341 RIVETRIVET
-
243002-964 CLAMP, WIRECLAMP, WIRE
-
258041-366 NUT, LOCKNUT, LOCK
-
260123-108 NUT, CAPNUT, CAP
-
278053-212 WASHER, LOCK, EXTERNAL TOOTHWASHER, LOCK, EXTERNAL TOOTH
-
280623-581 INSERTINSERT
