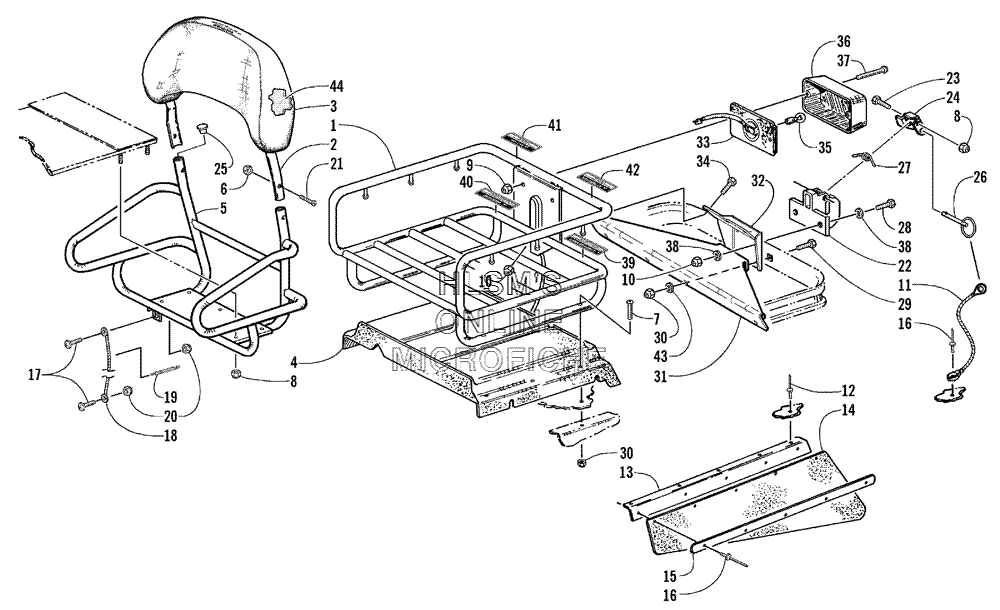

RACK- BACKREST- HITCH- AND TAILLIGHT ASSY. (INT) для Arctic Cat BEARCAT WIDE TRACK (USA) - 2002 года выпуска
-
№АртикулНазвание
-
10716-627 RACKRACK
-
20716-680 BACKREST (INC. 3 AND 44)BACKREST (INC. 3 AND 44)
-
30716-679 COVER, BACKRESTCOVER, BACKREST
-
40616-848 COVER, TUNNEL EXTENSION (REAR)COVER, TUNNEL EXTENSION (REAR)
-
50716-296 BACKREST, MOUNTINGBACKREST, MOUNTING
-
60123-108 NUT, CAPNUT, CAP
-
70623-060 SCREW, CAP, OVAL HEADSCREW, CAP, OVAL HEAD
-
88040-366 NUTNUT
-
90123-709 NUT, LOCKNUT, LOCK
-
108040-426 NUT, LOCKNUT, LOCK
-
111606-075 CABLE, SUPPORT, HANDGRIPCABLE, SUPPORT, HANDGRIP
-
128060-504 RIVETRIVET
-
130616-659 RETAINER, SIDERETAINER, SIDE
-
140616-660 SNOWFLAP, SIDESNOWFLAP, SIDE
-
150616-709 STRAP, SIDESTRAP, SIDE
-
168060-428 RIVETRIVET
-
170623-413 SCREW, MACHINESCREW, MACHINE
-
180115-595 CABLE, SEATCABLE, SEAT
-
190623-199 SPRING, EXTENSIONSPRING, EXTENSION
-
200123-430 NUT, LOCKNUT, LOCK
-
218017-584 SCREW, MACHINESCREW, MACHINE
-
220706-727 HITCH ASSY. (INC. 23, 24 AND 26, 27)HITCH ASSY. (INC. 23, 24 AND 26, 27)
-
238002-046 SCREW, CAPSCREW, CAP
-
240606-997 LATCH, HITCHLATCH, HITCH
-
250606-487 CLOSURE, TUBECLOSURE, TUBE
-
260623-213 PIN, HITCHPIN, HITCH
-
270623-335 SPRING, HITCH LATCHSPRING, HITCH LATCH
-
288002-132 SCREW, CAPSCREW, CAP
-
298011-040 BOLT, CARRIAGEBOLT, CARRIAGE
-
308041-366 NUT, LOCKNUT, LOCK
-
311606-646 BRACKET, HITCH SUPPORTBRACKET, HITCH SUPPORT
-
320716-818 BRACKET, MOUNTING, HITCHBRACKET, MOUNTING, HITCH
-
330609-230 HOUSING, TAILLIGHTHOUSING, TAILLIGHT
-
348002-130 SCREW, CAPSCREW, CAP
-
350109-460 BULB, TAILLIGHTBULB, TAILLIGHT
-
360609-229 LENS, TAILLIGHTLENS, TAILLIGHT
-
370623-303 SCREW, CAP, PAN HEADSCREW, CAP, PAN HEAD
-
388050-252 WASHERWASHER
-
391611-567 DECAL, WARNING, TOWING (FRENCH)DECAL, WARNING, TOWING (FRENCH)
-
401611-566 DECAL, WARNING, TOWING (ENGLISH)DECAL, WARNING, TOWING (ENGLISH)
-
411611-568 DECAL, WARNING, MAX PAYLOAD (ENGLISH)DECAL, WARNING, MAX PAYLOAD (ENGLISH)
-
421611-569 DECAL, WARNING, MAX PAYLOAD (FRENCH)DECAL, WARNING, MAX PAYLOAD (FRENCH)
-
438050-217 WASHERWASHER
-
440716-705 FOAM, BACKRESTFOAM, BACKREST
