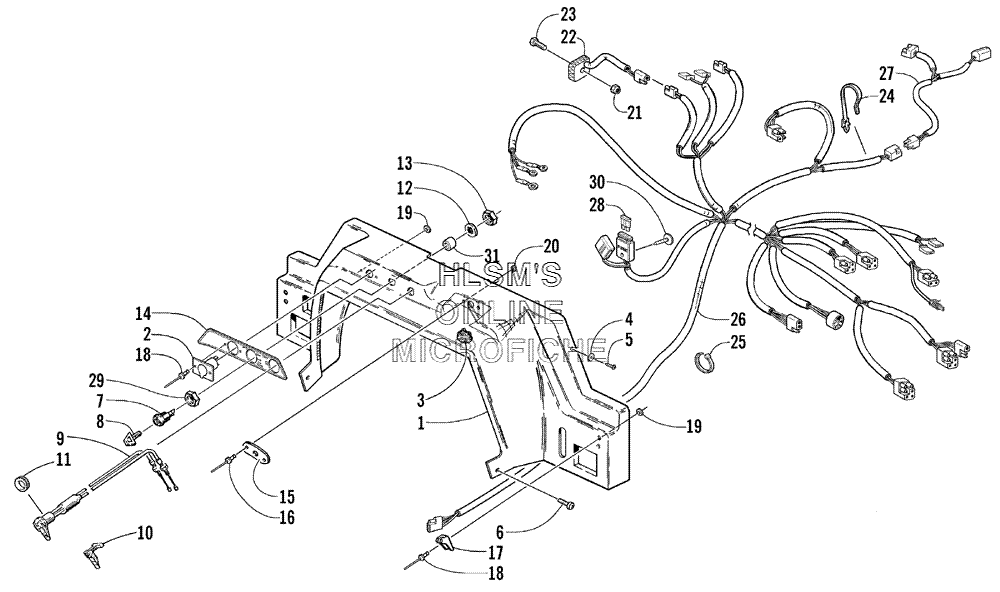

CONSOLE- SWITCHES- AND WIRING ASSY. для Arctic Cat BEARCAT WIDE TRACK (USA) - 2002 года выпуска
-
№АртикулНазвание
-
12606-263 CONSOLECONSOLE
-
20445-001 RECEPTACLE, 12, VOLTRECEPTACLE, 12, VOLT
-
30617-234 FOAM, CONSOLEFOAM, CONSOLE
-
48050-157 WASHERWASHER
-
50623-378 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
68017-577 SCREW, MACHINESCREW, MACHINE
-
70609-449 SWITCH, IGNITION (INC. 8)SWITCH, IGNITION (INC. 8)
-
90687-007 CABLE, CHOKE (INC. 10)CABLE, CHOKE (INC. 10)
-
100636-062 CHOKE LEVER KITCHOKE LEVER KIT
-
110623-054 NUT, CHOKENUT, CHOKE
-
120123-899 WASHER, IGNITIONWASHER, IGNITION
-
130123-900 NUT, IGNITIONNUT, IGNITION
-
143611-272 DECAL, CONSOLE SWITCHDECAL, CONSOLE SWITCH
-
150606-211 PLATE, RECOILPLATE, RECOIL
-
168060-708 RIVETRIVET
-
170115-307 CUP, LATCHCUP, LATCH
-
188060-428 RIVETRIVET
-
190123-149 WASHERWASHER
-
200123-802 WASHERWASHER
-
218041-366 NUT, LOCKNUT, LOCK
-
220630-105 REGULATOR, VOLTAGEREGULATOR, VOLTAGE
-
238002-044 SCREW, CAPSCREW, CAP
-
240423-075 CABLE TIE, PUSH MOUNTCABLE TIE, PUSH MOUNT
-
250123-788 CABLE TIE, 8 IN.CABLE TIE, 8 IN.
-
260686-657 HARNESS, MAIN (INC. 28)HARNESS, MAIN (INC. 28)
-
270686-587 HARNESS, HEADLIGHTHARNESS, HEADLIGHT
-
280630-100 FUSE, 7.5 AMPFUSE, 7.5 AMP
-
290609-113 NUT, IGNITIONNUT, IGNITION
-
300623-589 CLIP, RETAININGCLIP, RETAINING
-
310609-450 SPACER, SWITCH, IGNITIONSPACER, SWITCH, IGNITION
