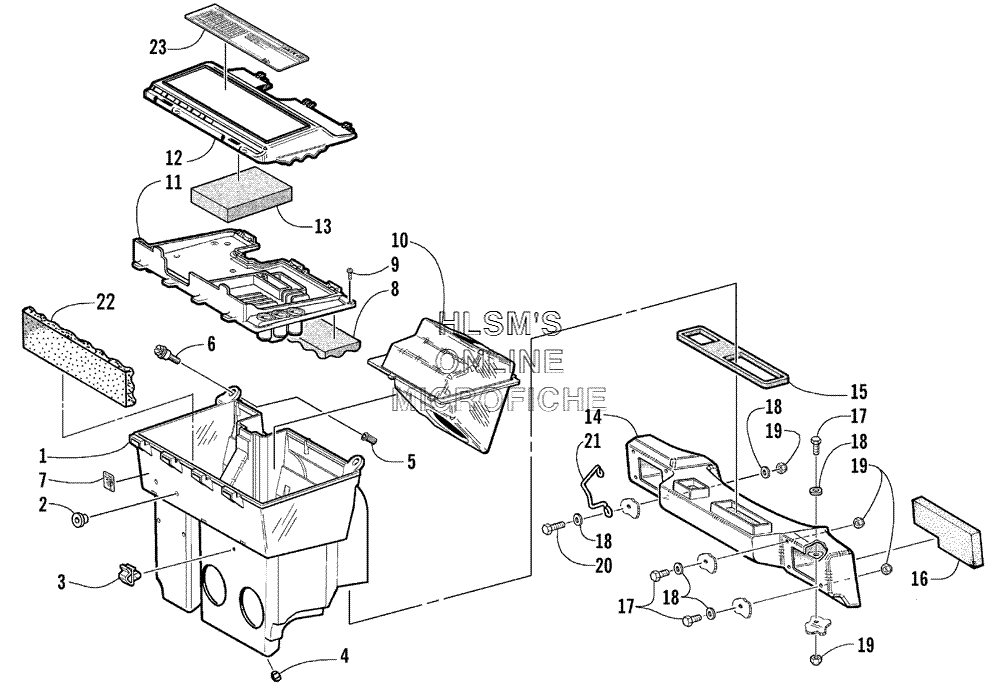

AIR SILENCER ASSY. для Arctic Cat PANTHER 440 (USA) - 2002 года выпуска
-
№АртикулНазвание
-
10770-457 SILENCER, AIR, ASSY. (INC. 2)SILENCER, AIR, ASSY. (INC. 2)
-
20623-529 INSERTINSERT
-
30623-403 CLAMP, PUSH MOUNTCLAMP, PUSH MOUNT
-
41606-038 BUMPER, AIR SILENCERBUMPER, AIR SILENCER
-
50623-779 INSERTINSERT
-
60623-780 SCREW, MACHINE, HEX SHOULDERSCREW, MACHINE, HEX SHOULDER
-
74611-029 DECAL, FUEL SHUT, OFF VALVEDECAL, FUEL SHUT, OFF VALVE
-
80617-393 FOAM, AIR SILENCER, COVERFOAM, AIR SILENCER, COVER
-
90623-882 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
101670-061 RESONATOR, Q, WAVERESONATOR, Q, WAVE
-
111670-197 COVER, AIR SILENCERCOVER, AIR SILENCER
-
121670-049 COVER, TOOL TRAYCOVER, TOOL TRAY
-
130617-411 FOAM, TOOL TRAYFOAM, TOOL TRAY
-
141670-195 PLENUM, AIR SILENCERPLENUM, AIR SILENCER
-
150617-245 SEAL, PLENUM/AIR SILENCERSEAL, PLENUM/AIR SILENCER
-
160617-270 FOAM, PLENUM, INTAKEFOAM, PLENUM, INTAKE
-
178002-040 SCREW, CAPSCREW, CAP
-
188050-222 WASHERWASHER
-
198040-366 NUT, LOCKNUT, LOCK
-
208002-042 SCREW, CAPSCREW, CAP
-
210607-669 BRACKET, GUARD, HARNESS/ROPEBRACKET, GUARD, HARNESS/ROPE
-
220617-254 FOAM, AIR SILENCER (FRONT)FOAM, AIR SILENCER (FRONT)
-
234611-277 DECAL, JET CHARTDECAL, JET CHART
