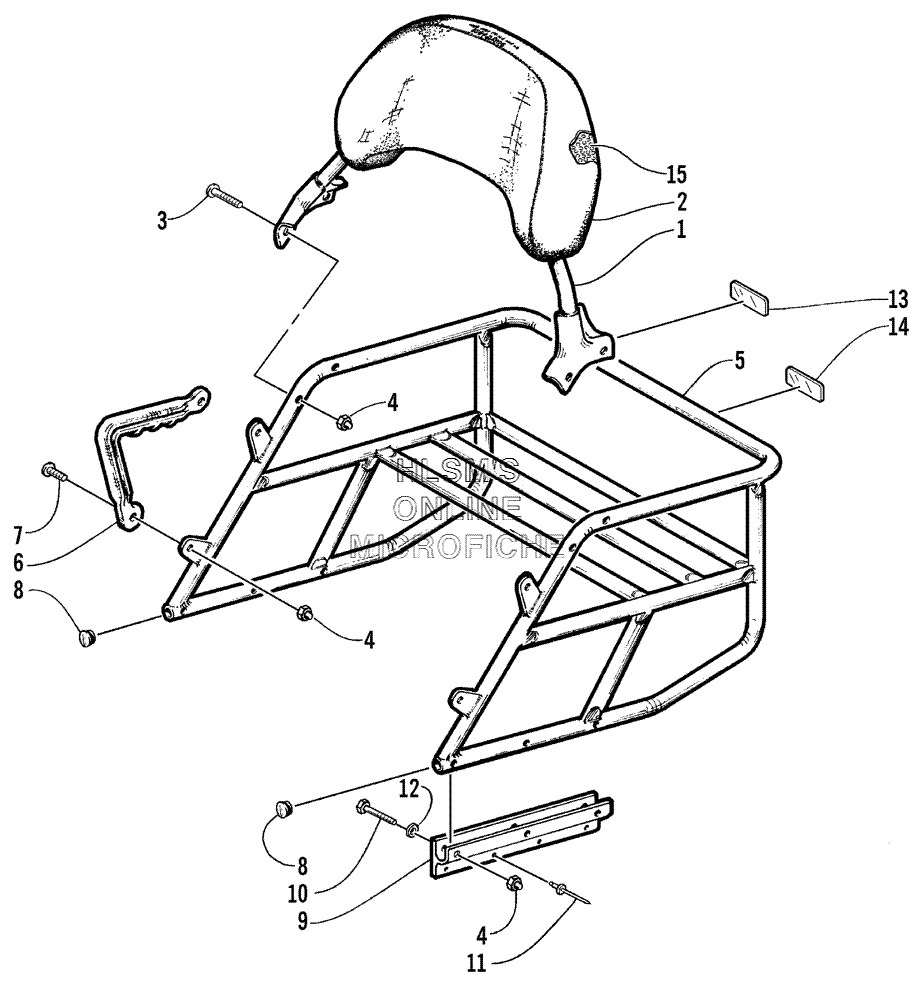

RACK AND BACKREST ASSY. для Arctic Cat PANTHER 440 (USA) - 2002 года выпуска
-
№АртикулНазвание
-
10716-677 BACKREST, COMPLETE (INC. 2 AND 15)BACKREST, COMPLETE (INC. 2 AND 15)
-
20716-679 COVER, BACKRESTCOVER, BACKREST
-
38017-584 SCREW, MACHINESCREW, MACHINE
-
40123-108 NUT, CAPNUT, CAP
-
50706-676 RACKRACK
-
60606-750 HANDGRIP, BACKRESTHANDGRIP, BACKREST
-
78017-581 SCREW, MACHINESCREW, MACHINE
-
80606-487 CLOSURE, TUBECLOSURE, TUBE
-
90606-933 BRACKET, MOUNTING, RACKBRACKET, MOUNTING, RACK
-
100623-032 SCREW, CAPSCREW, CAP
-
118060-506 RIVETRIVET
-
128050-217 WASHERWASHER
-
131611-568 DECAL, CAUTION, MAX PAYLOAD (ENGLISH)DECAL, CAUTION, MAX PAYLOAD (ENGLISH)
-
141611-569 DECAL, CAUTION, MAX PAYLOAD (FRENCH)DECAL, CAUTION, MAX PAYLOAD (FRENCH)
-
150716-705 FOAM, BACKRESTFOAM, BACKREST
