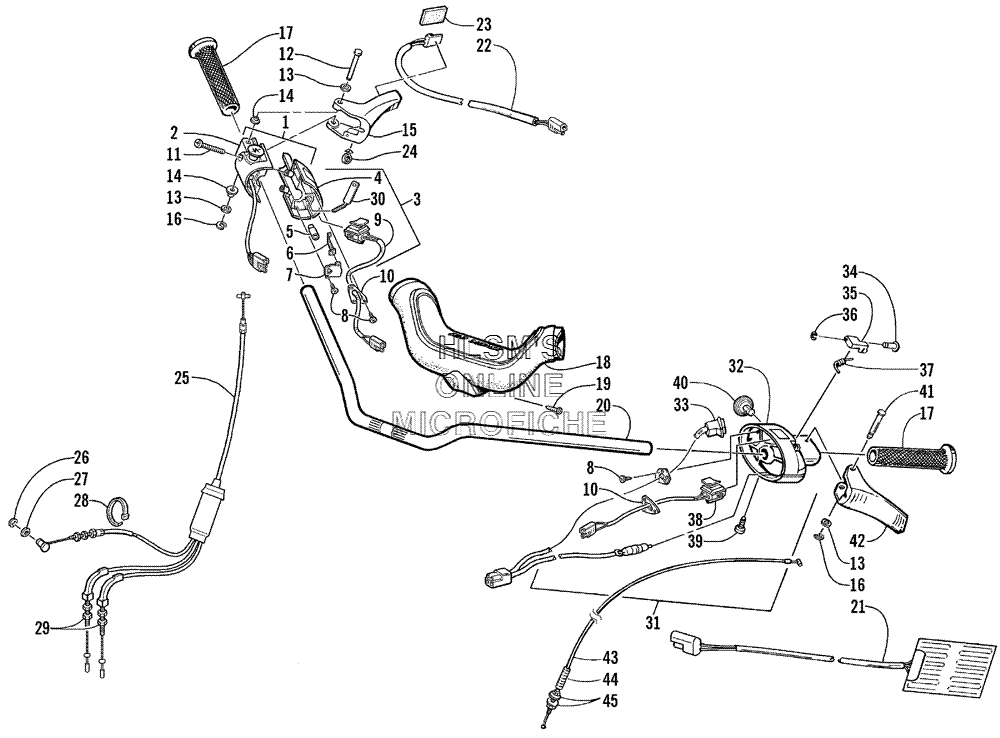

HANDLEBAR AND CONTROLS для Arctic Cat PANTHER 440 (USA) - 2002 года выпуска
-
№АртикулНазвание
-
10609-483 CONTROL, THROTTLE (ON/OFF/INC. 2, 11)CONTROL, THROTTLE (ON/OFF/INC. 2, 11)
-
20609-493 CONTROL, THROTTLE, STOP SWITCH HALFCONTROL, THROTTLE, STOP SWITCH HALF
-
30609-499 CONTROL, THROTTLE, THUMBWARMER ASSY. (ON/OFF/INC. 4, 10)CONTROL, THROTTLE, THUMBWARMER ASSY. (ON/OFF/INC. 4, 10)
-
40609-494 CONTROL, THROTTLE, THUMBWARMER (ON/OFF) W/O COMPONENTSCONTROL, THROTTLE, THUMBWARMER (ON/OFF) W/O COMPONENTS
-
50609-497 PLUG, RUBBERPLUG, RUBBER
-
60609-498 CLIP, RETAINING, THROTTLE CABLECLIP, RETAINING, THROTTLE CABLE
-
70609-496 PLATE, COVERPLATE, COVER
-
80609-312 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
90609-384 SWITCH, THUMBWARMER ASSY. (ON/OFF/INC. THREE NO. 8 AND ONE NO. 10)SWITCH, THUMBWARMER ASSY. (ON/OFF/INC. THREE NO. 8 AND ONE NO. 10)
-
100609-378 PLATE, COVERPLATE, COVER
-
110609-492 SCREW, MACHINESCREW, MACHINE
-
120609-317 AXLE, LEVER, THROTTLEAXLE, LEVER, THROTTLE
-
130609-036 WASHERWASHER
-
140609-501 WASHER, SHOULDER, THROTTLEWASHER, SHOULDER, THROTTLE
-
150609-363 LEVER, THROTTLELEVER, THROTTLE
-
160609-040 RING, RETAININGRING, RETAINING
-
172606-084 GRIP, HANDLEBARGRIP, HANDLEBAR
-
180616-995 PAD, HANDLEBARPAD, HANDLEBAR
-
190623-128 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
200705-361 HANDLEBARHANDLEBAR
-
210609-374 ELEMENT, HANDWARMERELEMENT, HANDWARMER
-
220609-372 ELEMENT, THUMBWARMERELEMENT, THUMBWARMER
-
230617-248 PAD, INSULATORPAD, INSULATOR
-
240623-262 CLIP, WIRECLIP, WIRE
-
250687-059 CABLE, THROTTLECABLE, THROTTLE
-
260124-057 E, RINGE, RING
-
270124-056 WASHERWASHER
-
280123-788 CABLE TIE, 8 IN.CABLE TIE, 8 IN.
-
290623-464 NUT, LOCKING, THROTTLE CABLENUT, LOCKING, THROTTLE CABLE
-
301639-963 TOOL REMOVAL, KIT, THROTTLE CABLETOOL REMOVAL, KIT, THROTTLE CABLE
-
310609-393 SWITCH, BRAKE, ASSY. (INC. SEVEN NO. 7, ONE NO. 9, AND 32, 40)SWITCH, BRAKE, ASSY. (INC. SEVEN NO. 7, ONE NO. 9, AND 32, 40)
-
320609-478 HOUSING, BRAKE SWITCHHOUSING, BRAKE SWITCH
-
330609-452 SWITCH, DIMMER, BRAKESWITCH, DIMMER, BRAKE
-
340609-050 PIN, ACTUATORPIN, ACTUATOR
-
350609-314 ACTUATOR, BRAKE, PARKINGACTUATOR, BRAKE, PARKING
-
360609-051 RING, RETAININGRING, RETAINING
-
370609-313 SPRING, ACTUATORSPRING, ACTUATOR
-
380609-385 SWITCH, HANDWARMER ASSY. (ON/OFF/INC. THREE NO. 8 AND ONE NO. 10)SWITCH, HANDWARMER ASSY. (ON/OFF/INC. THREE NO. 8 AND ONE NO. 10)
-
390609-085 SCREW, MACHINESCREW, MACHINE
-
400609-474 KNOB, DIMMER SWITCHKNOB, DIMMER SWITCH
-
410609-315 AXLE, LEVER, BRAKEAXLE, LEVER, BRAKE
-
420609-266 LEVER, BRAKELEVER, BRAKE
-
430687-089 CABLE, BRAKECABLE, BRAKE
-
440109-194 SPRING, BRAKE CABLESPRING, BRAKE CABLE
-
450123-406 NUT, FLANGENUT, FLANGE
