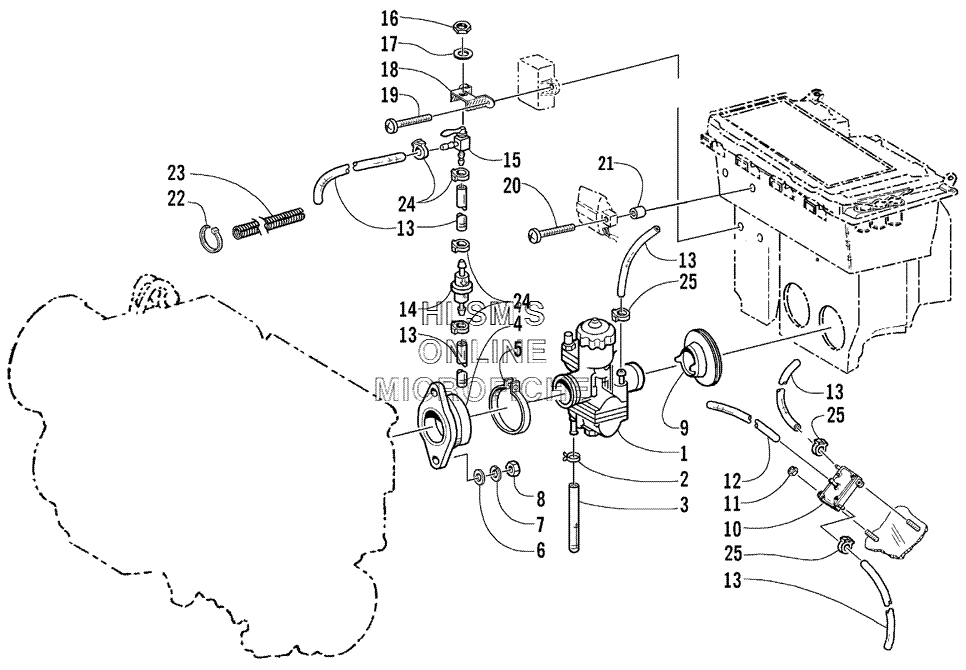

CARBURETOR AND FUEL PUMP ASSY. для Arctic Cat PANTHER 440 (USA) - 2002 года выпуска
-
№АртикулНазвание
-
10770-499 CARBURETOR ASSY., VM34, 567CARBURETOR ASSY., VM34, 567
-
20623-652 CLAMP, HOSECLAMP, HOSE
-
30610-442 HOSE, DRAINHOSE, DRAIN
-
40115-544 FLANGE, CARBURETOR (INC. 5)FLANGE, CARBURETOR (INC. 5)
-
50109-709 CLAMP, CARBURETOR FLANGECLAMP, CARBURETOR FLANGE
-
63003-079 WASHERWASHER
-
73003-078 WASHER, LOCKWASHER, LOCK
-
83003-623 NUTNUT
-
90670-726 BOOT, AIR SILENCERBOOT, AIR SILENCER
-
100670-163 PUMP, FUELPUMP, FUEL
-
118040-366 NUT, LOCKNUT, LOCK
-
120610-007 HOSE, IMPULSE (25 FT)HOSE, IMPULSE (25 FT)
-
130610-017 HOSE, GASLINE (100 FT)HOSE, GASLINE (100 FT)
-
130610-008 HOSE, GASLINE (25 FT)HOSE, GASLINE (25 FT)
-
140510-335 FILTER, FUELFILTER, FUEL
-
150670-144 VALVE, FUEL SHUT, OFF (INC. 16, 17)VALVE, FUEL SHUT, OFF (INC. 16, 17)
-
160623-287 NUTNUT
-
170623-288 WASHERWASHER
-
180670-837 BRACKET, MOUNTING, FUEL SHUT, OFF VALVEBRACKET, MOUNTING, FUEL SHUT, OFF VALVE
-
190623-833 SCREW, MACHINESCREW, MACHINE
-
200623-835 SCREW, MACHINESCREW, MACHINE
-
210670-210 SPACERSPACER
-
220123-811 CABLE TIE, 4 IN.CABLE TIE, 4 IN.
-
230716-546 CONDUIT, FLEXIBLECONDUIT, FLEXIBLE
-
240623-063 CLAMP, HOSECLAMP, HOSE
-
250623-373 CLAMP, HOSECLAMP, HOSE
