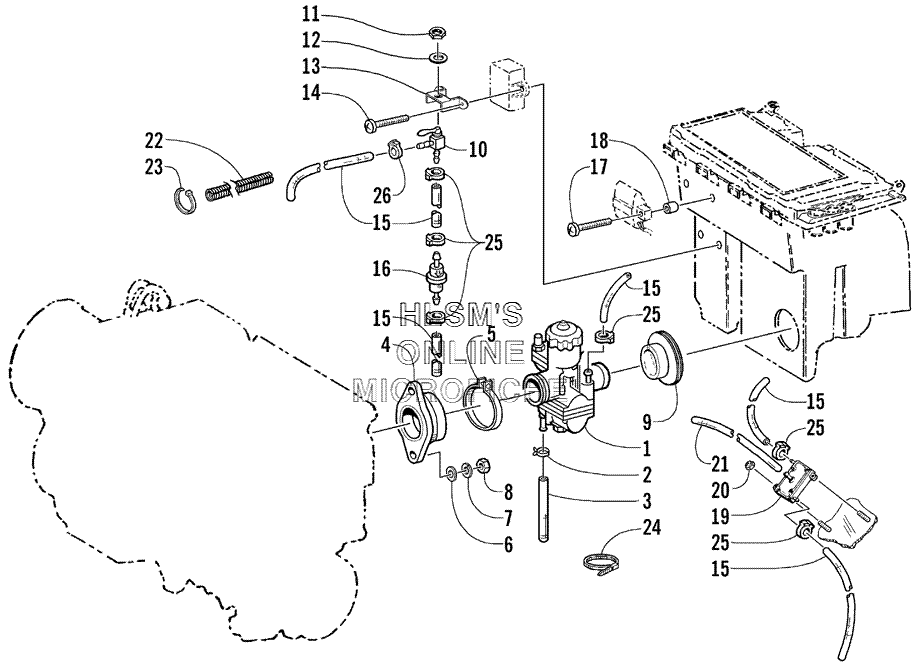

CARBURETOR AND FUEL PUMP ASSY. для Arctic Cat Z 370 - 2002 года выпуска
-
№АртикулНазвание
-
11670-204 CARBURETOR, VM32, 304CARBURETOR, VM32, 304
-
20623-652 CLAMP, HOSECLAMP, HOSE
-
30610-442 HOSE, DRAINHOSE, DRAIN
-
40115-544 FLANGE, CARBURETOR (INC. 5)FLANGE, CARBURETOR (INC. 5)
-
50109-709 CLAMP, CARBURETOR FLANGECLAMP, CARBURETOR FLANGE
-
63003-079 WASHERWASHER
-
73003-078 WASHER, LOCKWASHER, LOCK
-
83003-623 NUTNUT
-
91670-267 BOOT, CARBURETORBOOT, CARBURETOR
-
100670-144 VALVE, FUEL SHUT, OFF (INC. 11, 12)VALVE, FUEL SHUT, OFF (INC. 11, 12)
-
110623-287 NUTNUT
-
120623-288 WASHERWASHER
-
130670-837 BRACKET, MOUNTING, FUEL SHUT, OFF VALVEBRACKET, MOUNTING, FUEL SHUT, OFF VALVE
-
140623-833 SCREW, MACHINESCREW, MACHINE
-
150610-017 HOSE, GASLINE (100 FT)HOSE, GASLINE (100 FT)
-
150610-008 HOSE, GASLINE (25 FT)HOSE, GASLINE (25 FT)
-
160510-335 FILTER, FUELFILTER, FUEL
-
170623-835 SCREW, MACHINESCREW, MACHINE
-
180670-210 SPACERSPACER
-
190115-481 PUMP, FUELPUMP, FUEL
-
208040-366 NUT, LOCKNUT, LOCK
-
210610-007 HOSE, IMPULSE (25 FT)HOSE, IMPULSE (25 FT)
-
220716-546 CONDUIT, FLEXIBLECONDUIT, FLEXIBLE
-
230123-811 CABLE TIE, 4 IN.CABLE TIE, 4 IN.
-
240123-788 CABLE TIE, 8 IN.CABLE TIE, 8 IN.
-
250623-063 CLAMP, HOSECLAMP, HOSE
-
260124-045 CLAMP, HOSECLAMP, HOSE
