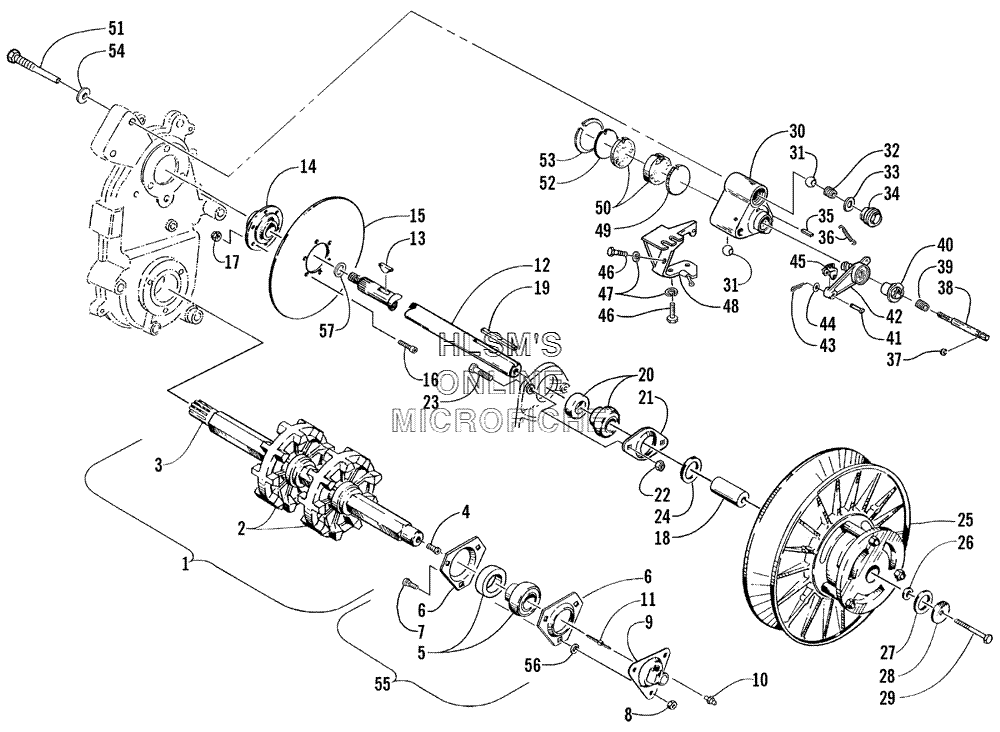

DRIVE TRAIN SHAFTS AND BRAKE ASSY. #2 для Arctic Cat Z 370 - 2002 года выпуска
-
№АртикулНазвание
-
10728-042 TRACK DRIVE ASSY. (INC. 2, 4)TRACK DRIVE ASSY. (INC. 2, 4)
-
20602-992 SPROCKET, DRIVESPROCKET, DRIVE
-
30602-487 DRIVESHAFTDRIVESHAFT
-
40120-247 BUSHING, DRIVEBUSHING, DRIVE
-
51602-110 BEARING, 1 IN. W/LOCK COLLAR, RE, LUBRICATIVEBEARING, 1 IN. W/LOCK COLLAR, RE, LUBRICATIVE
-
60602-198 PLATE, FLANGEPLATE, FLANGE
-
78011-130 BOLT, CARRIAGEBOLT, CARRIAGE
-
88040-426 NUT, LOCKNUT, LOCK
-
90720-005 ADAPTER, DRIVE (INC. 10)ADAPTER, DRIVE (INC. 10)
-
100104-062 FITTING, GREASEFITTING, GREASE
-
110602-154 CABLE, ADAPTERCABLE, ADAPTER
-
120602-485 SHAFT, DRIVENSHAFT, DRIVEN
-
130602-598 KEYKEY
-
140602-434 HUB, BRAKEHUB, BRAKE
-
150602-551 DISC, BRAKEDISC, BRAKE
-
160623-459 SCREW, MACHINE, SOCKET HEADSCREW, MACHINE, SOCKET HEAD
-
170123-430 NUT, LOCKNUT, LOCK
-
180648-066 SHAFT, STUBSHAFT, STUB
-
190101-076 KEYKEY
-
201602-099 BEARING, 1 IN. W/LOCK COLLAR, RE, LUBRICATIVEBEARING, 1 IN. W/LOCK COLLAR, RE, LUBRICATIVE
-
210602-892 PLATE, FLANGEPLATE, FLANGE
-
228041-426 NUT, LOCKNUT, LOCK
-
238002-130 SCREW, CAPSCREW, CAP
-
240623-118 WASHERWASHER
-
240623-119 WASHERWASHER
-
250726-120 CLUTCH, DRIVENCLUTCH, DRIVEN
-
260123-053 WASHERWASHER
-
270123-578 WASHERWASHER
-
280123-019 WASHERWASHER
-
298002-142 SCREW, CAPSCREW, CAP
-
300602-505 CALIPER, BRAKE ASSY.CALIPER, BRAKE ASSY.
-
310602-503 BALL, ALIGNMENTBALL, ALIGNMENT
-
320602-618 SPRING, COMPRESSIONSPRING, COMPRESSION
-
330623-450 WASHERWASHER
-
340602-622 NUT, BRAKE CALIPERNUT, BRAKE CALIPER
-
358070-316 PIN, SPRINGPIN, SPRING
-
360602-779 SPRING, RETURNSPRING, RETURN
-
370124-057 E, RINGE, RING
-
380602-515 SCREW, BRAKE, ADJUSTERSCREW, BRAKE, ADJUSTER
-
390602-616 SPRING, COMPRESSIONSPRING, COMPRESSION
-
401602-024 KNOB, BRAKE, ADJUSTERKNOB, BRAKE, ADJUSTER
-
410602-509 PIN, CLEVISPIN, CLEVIS
-
421602-022 ARM, ACTIVATORARM, ACTIVATOR
-
430117-868 PIN, COTTERPIN, COTTER
-
448050-212 WASHERWASHER
-
450602-508 CLEVISCLEVIS
-
468002-039 SCREW, CAPSCREW, CAP
-
478051-212 WASHER, LOCKWASHER, LOCK
-
480702-283 BRACKET, BRAKE CABLEBRACKET, BRAKE CABLE
-
490602-716 PISTON, BRAKE PADPISTON, BRAKE PAD
-
500702-264 PAD, BRAKE, SETPAD, BRAKE, SET
-
510602-386 BOLT, MOUNTING, BRAKE CALIPERBOLT, MOUNTING, BRAKE CALIPER
-
520602-775 PLATE, BACKING, STATIONARY PADPLATE, BACKING, STATIONARY PAD
-
530602-502 RING, SNAPRING, SNAP
-
548050-307 WASHERWASHER
-
550702-392 PLATE, FLANGE, BEARING ASSY. (INC. 5, 7 AND 56)PLATE, FLANGE, BEARING ASSY. (INC. 5, 7 AND 56)
-
560623-810 RING, SOLDERRING, SOLDER
-
570623-912 WASHERWASHER
