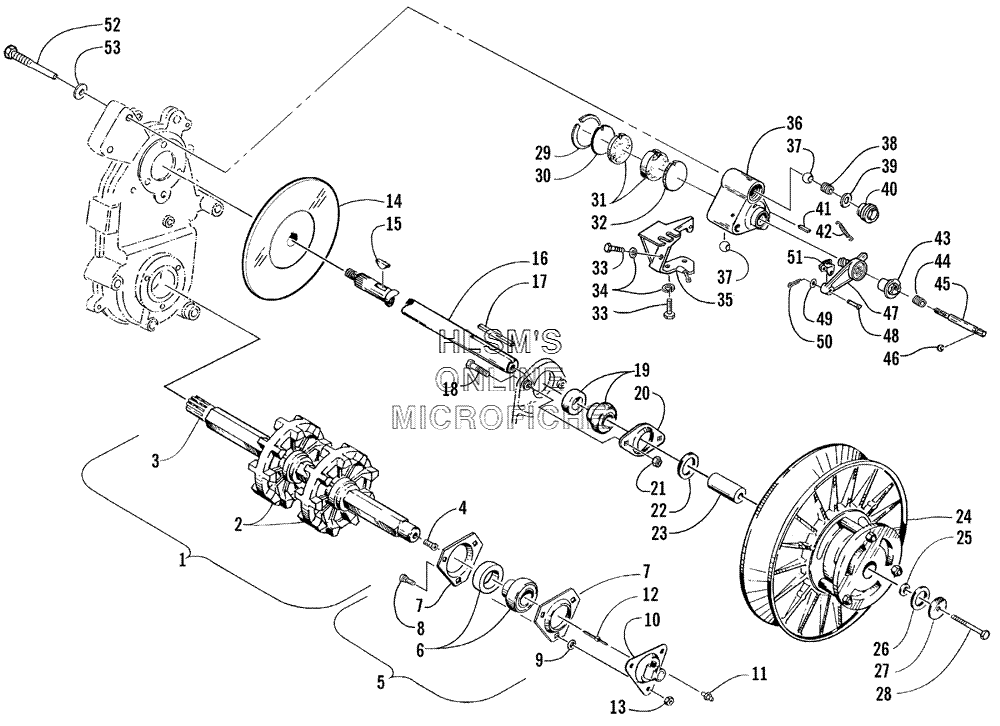

DRIVE TRAIN SHAFTS AND BRAKE ASSY. #1 для Arctic Cat Z 370 - 2002 года выпуска
-
№АртикулНазвание
-
10728-042 TRACK DRIVE ASSY. (INC. 2, 4)TRACK DRIVE ASSY. (INC. 2, 4)
-
20602-992 SPROCKET, DRIVESPROCKET, DRIVE
-
30602-487 DRIVESHAFTDRIVESHAFT
-
40120-247 BUSHING, DRIVEBUSHING, DRIVE
-
50702-392 PLATE, FLANGE, BEARING ASSY. (INC. 6, 9)PLATE, FLANGE, BEARING ASSY. (INC. 6, 9)
-
61602-110 BEARING, 1 IN. W/LOCK COLLAR, RE, LUBRICATIVEBEARING, 1 IN. W/LOCK COLLAR, RE, LUBRICATIVE
-
70602-198 PLATE, FLANGEPLATE, FLANGE
-
88011-130 BOLT, CARRIAGEBOLT, CARRIAGE
-
90623-810 RING, SOLDERRING, SOLDER
-
100720-005 ADAPTER, DRIVE (INC. 11)ADAPTER, DRIVE (INC. 11)
-
110104-062 FITTING, GREASEFITTING, GREASE
-
120602-154 CABLE, ADAPTERCABLE, ADAPTER
-
138040-426 NUT, LOCKNUT, LOCK
-
141602-206 DISC, BRAKEDISC, BRAKE
-
150602-598 KEYKEY
-
160602-485 SHAFT, DRIVENSHAFT, DRIVEN
-
170101-076 KEYKEY
-
188002-130 SCREW, CAPSCREW, CAP
-
191602-099 BEARING, 1 IN. W/LOCK COLLAR, RE, LUBRICATIVEBEARING, 1 IN. W/LOCK COLLAR, RE, LUBRICATIVE
-
200602-892 PLATE, FLANGEPLATE, FLANGE
-
218041-426 NUT, LOCKNUT, LOCK
-
220623-118 WASHERWASHER
-
220623-119 WASHERWASHER
-
230648-066 SHAFT, STUBSHAFT, STUB
-
240726-120 CLUTCH, DRIVENCLUTCH, DRIVEN
-
250123-053 WASHERWASHER
-
260123-578 WASHERWASHER
-
270123-019 WASHERWASHER
-
288002-142 SCREW, CAPSCREW, CAP
-
290602-502 RING, SNAPRING, SNAP
-
300602-775 PLATE, BACKING, STATIONARY PADPLATE, BACKING, STATIONARY PAD
-
310702-264 PAD, BRAKE, SETPAD, BRAKE, SET
-
320602-716 PISTON, BRAKE PADPISTON, BRAKE PAD
-
338002-039 SCREW, CAPSCREW, CAP
-
348051-212 WASHER, LOCKWASHER, LOCK
-
350702-283 BRACKET, BRAKE CABLEBRACKET, BRAKE CABLE
-
360602-505 CALIPER, BRAKE ASSY.CALIPER, BRAKE ASSY.
-
370602-503 BALL, ALIGNMENTBALL, ALIGNMENT
-
380602-618 SPRING, COMPRESSIONSPRING, COMPRESSION
-
390623-450 WASHERWASHER
-
400602-622 NUT, BRAKE CALIPERNUT, BRAKE CALIPER
-
418070-316 PIN, SPRINGPIN, SPRING
-
420602-779 SPRING, RETURNSPRING, RETURN
-
431602-024 KNOB, BRAKE, ADJUSTERKNOB, BRAKE, ADJUSTER
-
440602-616 SPRING, COMPRESSIONSPRING, COMPRESSION
-
450602-515 SCREW, BRAKE, ADJUSTERSCREW, BRAKE, ADJUSTER
-
460124-057 E, RINGE, RING
-
471602-022 ARM, ACTIVATORARM, ACTIVATOR
-
480602-509 PIN, CLEVISPIN, CLEVIS
-
498050-212 WASHERWASHER
-
500117-868 PIN, COTTERPIN, COTTER
-
510602-508 CLEVISCLEVIS
-
520602-386 BOLT, MOUNTING, BRAKE CALIPERBOLT, MOUNTING, BRAKE CALIPER
-
538050-307 WASHERWASHER
