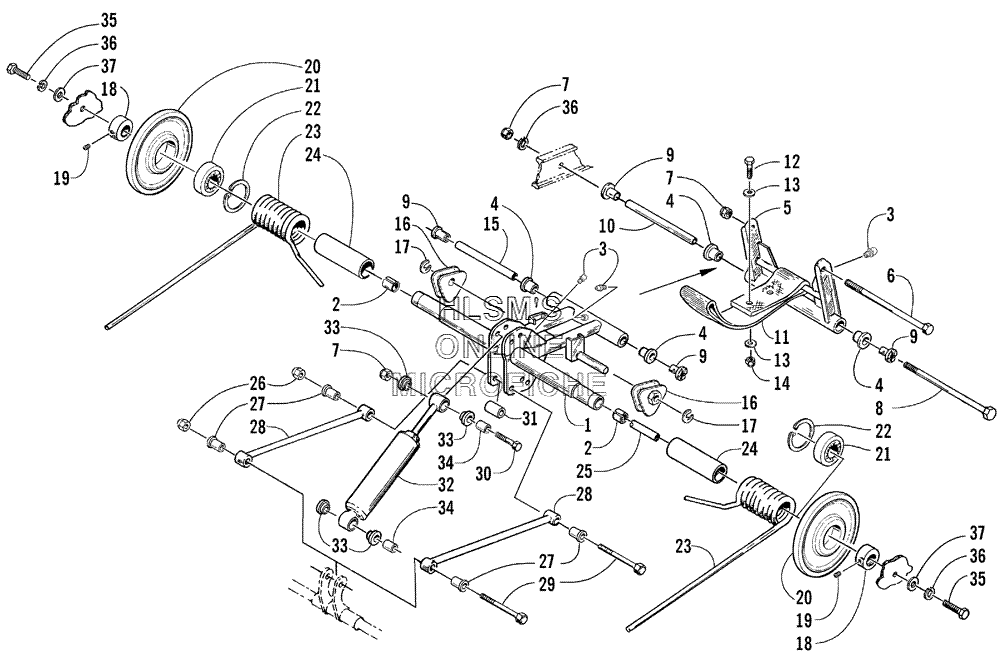

REAR SUSPENSION REAR ARM ASSY. для Arctic Cat Z 370 - 2002 года выпуска
-
№АртикулНазвание
-
10704-640 ARM, IDLER (GREEN) (INC. 2, 4)ARM, IDLER (GREEN) (INC. 2, 4)
-
20603-083 BEARINGBEARING
-
30623-922 FITTING, GREASEFITTING, GREASE
-
40104-386 BUSHINGBUSHING
-
50704-636 ARM (REAR) (GREEN) (INC. 3, 4)ARM (REAR) (GREEN) (INC. 3, 4)
-
60623-106 SCREW, CAPSCREW, CAP
-
78040-486 NUT, LOCKNUT, LOCK
-
80623-105 SCREW, CAPSCREW, CAP
-
90603-061 AXLE, SERRATEDAXLE, SERRATED
-
100604-194 TUBE, AXLETUBE, AXLE
-
111604-130 STRAP, LIMITERSTRAP, LIMITER
-
128002-042 SCREW, CAPSCREW, CAP
-
130623-184 WASHERWASHER
-
148040-366 NUT, LOCKNUT, LOCK
-
150604-204 AXLE, IDLERAXLE, IDLER
-
161604-204 BLOCK, SPRING ADJUSTER (RIGHT)BLOCK, SPRING ADJUSTER (RIGHT)
-
161604-205 BLOCK, SPRING ADJUSTER (LEFT)BLOCK, SPRING ADJUSTER (LEFT)
-
170623-138 RING, RETAININGRING, RETAINING
-
180604-601 COLLAR, LOCKCOLLAR, LOCK
-
190623-217 SCREW, SETSCREW, SET
-
201604-690 WHEEL, IDLER (INC. 21, 22)WHEEL, IDLER (INC. 21, 22)
-
210107-598 BEARINGBEARING
-
220123-798 RING, RETAININGRING, RETAINING
-
230604-654 SPRING, SUSPENSION (RIGHT)SPRING, SUSPENSION (RIGHT)
-
230604-655 SPRING, SUSPENSION (LEFT)SPRING, SUSPENSION (LEFT)
-
240114-254 SLEEVE, SPRINGSLEEVE, SPRING
-
250114-163 AXLE, INNER CARRIAGEAXLE, INNER CARRIAGE
-
268041-486 NUT, LOCKNUT, LOCK
-
271604-498 AXLE, LINK, FLANGEDAXLE, LINK, FLANGED
-
280704-350 LINK REAR SHOCKLINK REAR SHOCK
-
298002-233 SCREW, CAPSCREW, CAP
-
308002-227 SCREW, CAPSCREW, CAP
-
310604-298 SPACER, SHOCK LINKSPACER, SHOCK LINK
-
321604-455 SHOCK ABSORBER ARM (REAR) (INC. 33, 34)SHOCK ABSORBER ARM (REAR) (INC. 33, 34)
-
330604-321 BUSHING, SHOCKBUSHING, SHOCK
-
341604-185 SLEEVE, SHOCKSLEEVE, SHOCK
-
358002-224 SCREW, CAPSCREW, CAP
-
368051-277 WASHER, LOCKWASHER, LOCK
-
370623-044 WASHERWASHER
