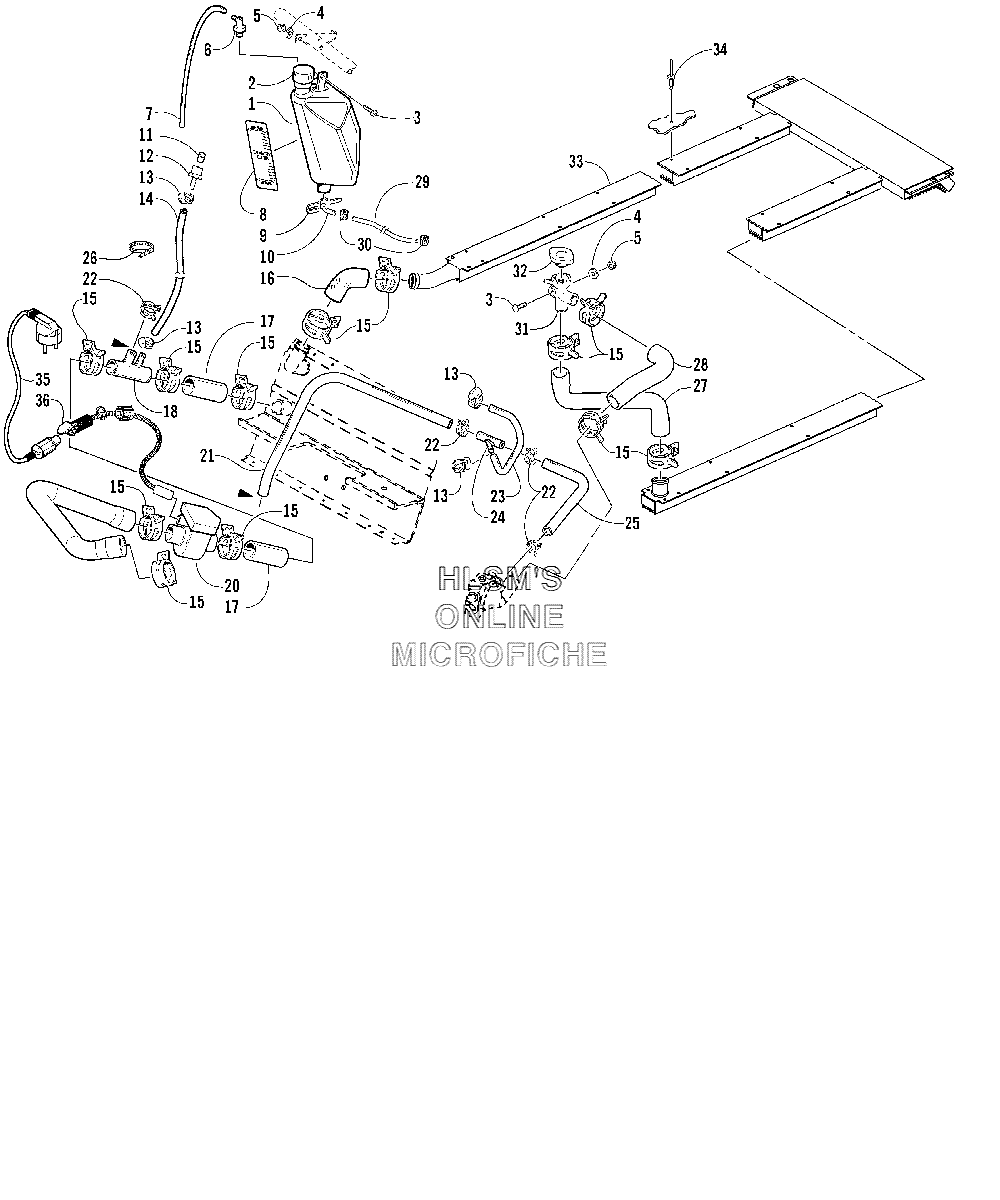

COOLING ASSEMBLY для Arctic Cat 4-STROKE TOURING (INTERNATIONAL) - 2003 года выпуска
-
№АртикулНазвание
-
11670-246 TANK, COOLANTTANK, COOLANT
-
20670-035 CAP, TANKCAP, TANK
-
38017-580 SCREW, MACHINESCREW, MACHINE
-
48050-217 WASHERWASHER
-
58040-366 NUT, LOCKNUT, LOCK
-
60670-242 FITTING, VENTFITTING, VENT
-
70610-010 HOSE, VENT (25 FT)HOSE, VENT (25 FT)
-
84611-093 DECAL, FILL LEVEL, COOLANT TANKDECAL, FILL LEVEL, COOLANT TANK
-
90670-289 TAPE, TEFLONTAPE, TEFLON
-
100670-075 FITTING, ELBOWFITTING, ELBOW
-
110623-976 PLUG, ADAPTERPLUG, ADAPTER
-
121670-303 ADAPTER, FITTINGADAPTER, FITTING
-
130623-373 CLAMP, HOSECLAMP, HOSE
-
140610-075 HOSE, COOLANT, DRAIN (10 FT)HOSE, COOLANT, DRAIN (10 FT)
-
150623-736 CLAMP, HOSECLAMP, HOSE
-
160610-244 HOSE, COOLANT HEAT EXCHANGER REAR HEAT EXCHANGER (FRONT)HOSE, COOLANT HEAT EXCHANGER REAR HEAT EXCHANGER (FRONT)
-
170610-539 HOSE, COOLANT, T, FITTINGHOSE, COOLANT, T, FITTING
-
182606-502 T, FITTING, DOUBLET, FITTING, DOUBLE
-
190610-453 HOSE, COOLANT, HEATER/ENGINEHOSE, COOLANT, HEATER/ENGINE
-
200609-182 HEATER, INNERLINEHEATER, INNERLINE
-
200609-563 HEATER, INNERLINE (INTERNATIONAL) (INC. 35, 36)HEATER, INNERLINE (INTERNATIONAL) (INC. 35, 36)
-
210610-520 HOSE, COOLANT, Y, FITTING/T, FITTINGHOSE, COOLANT, Y, FITTING/T, FITTING
-
221623-146 CLAMP, HOSECLAMP, HOSE
-
230610-518 HOSE, COOLANT, THROTTLE BODY/Y, FITTINGHOSE, COOLANT, THROTTLE BODY/Y, FITTING
-
242606-625 Y, FITTINGY, FITTING
-
250610-519 HOSE, COOLANT, THERMOSTAT/Y, FITTINGHOSE, COOLANT, THERMOSTAT/Y, FITTING
-
260123-788 CABLE TIE, 8 IN.CABLE TIE, 8 IN.
-
270610-488 HOSE, FILLER NECK/REAR HEAT EXCHANGERHOSE, FILLER NECK/REAR HEAT EXCHANGER
-
280610-500 HOSE, COOLANT, FILLER NECK/ENGINEHOSE, COOLANT, FILLER NECK/ENGINE
-
290610-015 HOSE (100 FT)HOSE (100 FT)
-
290610-016 HOSE (25 FT)HOSE (25 FT)
-
300124-045 CLAMP, HOSECLAMP, HOSE
-
312606-859 NECK, FILLERNECK, FILLER
-
322606-284 CAP, FILLER NECKCAP, FILLER NECK
-
332706-078 HEAT EXCHANGER (REAR)HEAT EXCHANGER (REAR)
-
348060-706 RIVETRIVET
